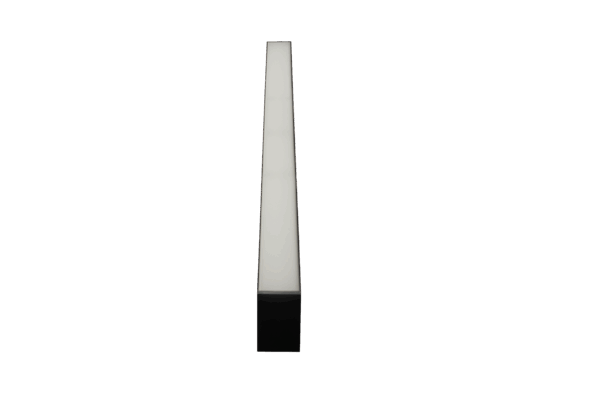

4′ Architectural Linear Direct-Indirect – Lumen & Kelvin Field Selectable – Black

HOUSING

• Premium powder-coat, sheet metal stamping, white or black housing.

ELECTRICAL

• Operating temperature (ambient):
  -20°C to 50°C (-4°F to 122°F) when fixture is mounted at least 18” from ceiling;
  -20°C to 40°C (-4°F to 104°F) when surface mounted.
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Tooless linking of up to 10 fixtures / connectors @120V.

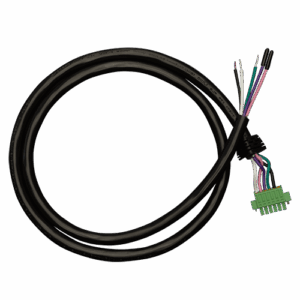

• Power cord sold separately, required for suspension, cable and T-grid mounting.
• Input transient surge protection = 2.5kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• PMMA Lens.
• Field selectable 2700k(soft white), 3000k(warm white), 3500k(warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.
• Four selectable light output settings provide 2,396 to 5,078 nominal lumens (see lumen tables on page 5).
• Long-life LEDs provide 175,000 hours of operation with at least 70% of initial lumen output (L70), and 53,000 hours with at least 90% of initial lumen output (L90).
• LED color maintenance < 0.0036 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 80.

MOUNTING*

• Optional recessed mount kit.
• Optional surface/wall mount kit.

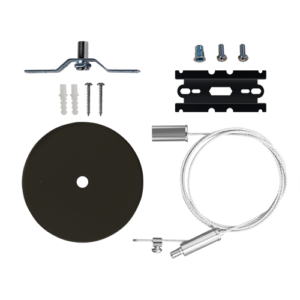

• Optional cable mount kit.

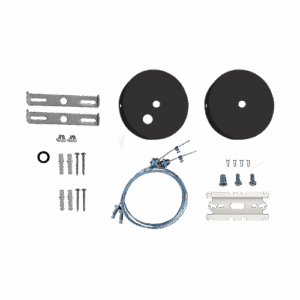

• Optional suspension mount kit.
• Optional T-Grid suspension mount kit.

* Mounting means required and sold separately.

CODE COMPLIANCE

• cULus listed for damp locations.
• Complies with FCC part 15, class A.

WARRANTY

• 5-year warranty on all electronics and housing.
