HOUSING
- Black powder-coated stamped sheet-metal housing.
ELECTRICAL
- Operating temperature (ambient):
-20°C to 50°C (-4°F to 122°F) when fixture is mounted at least 18” from ceiling;
-20°C to 40°C (-4°F to 104°F) when surface mounted. - 120-277V AC (50-60Hz).
- 0-10VDC dimming driver.
- Selectable uplight/downlight distributions.
- Seamless continuous runs available.
- Toolless linking. Maximum total connected load (including connectors): ≤550W @120V, ≤1100W@277V.
- Input transient surge protection: 2.5kV.
- Power factor > 0.90.
- Total harmonic distortion (THD) < 20%.
OPTICAL SYSTEM
- Efficacy up to 138 lumens per watt.
- Field selectable 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Selectable output delivers from 1,000 to 2,500 nominal lumens, with 4 settings.
- Long-life LEDs provide 172,000 hours of operation with at least 70% of initial lumen output (L70), and 52,000 hours with at least 90% of initial lumen output (L90).
- LED color maintenance < 0.0009 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- PMMA lens.
- Color Rendering Index (CRI) > 90.
MOUNTING*
- Optional recessed mount kit.
- Optional surface/wall mount kit.

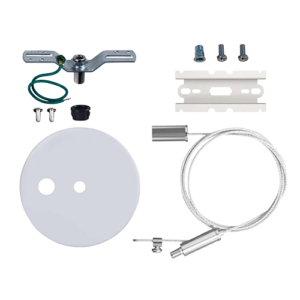

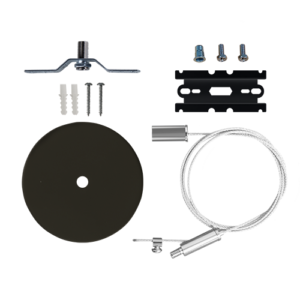

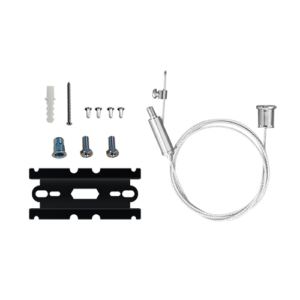

- Optional cable mount kit.
- Optional suspension mount kit.
- Optional T-Grid suspension mount kit.
* Mounting means required and sold separately.
CODE COMPLIANCE
- cULus listed for damp locations.
- Complies with FCC part 15, class A.
WARRANTY
- 5-year warranty on all electronics and housing.
