1×4 LED Center Basket – Lumen & Kelvin Selectable

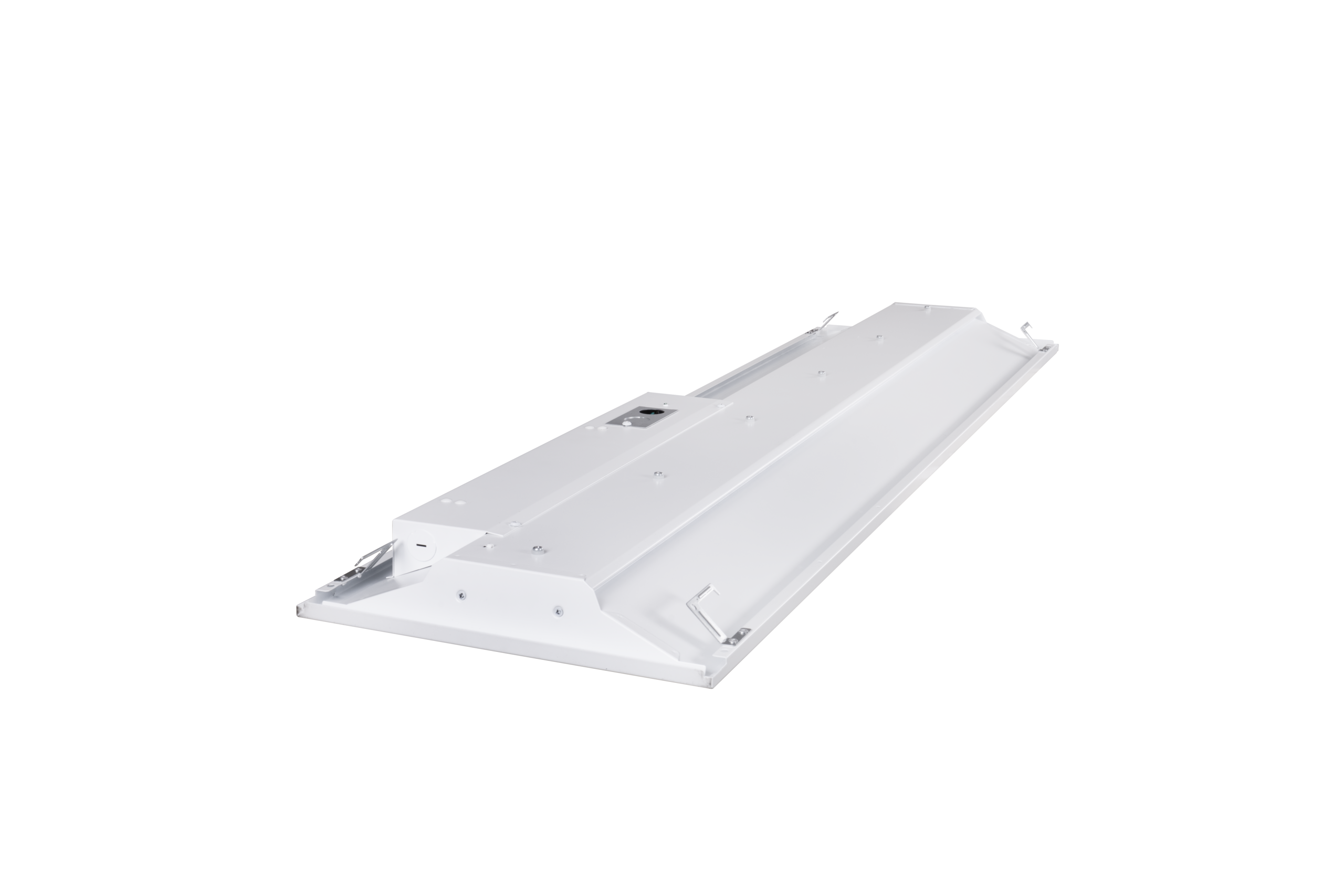

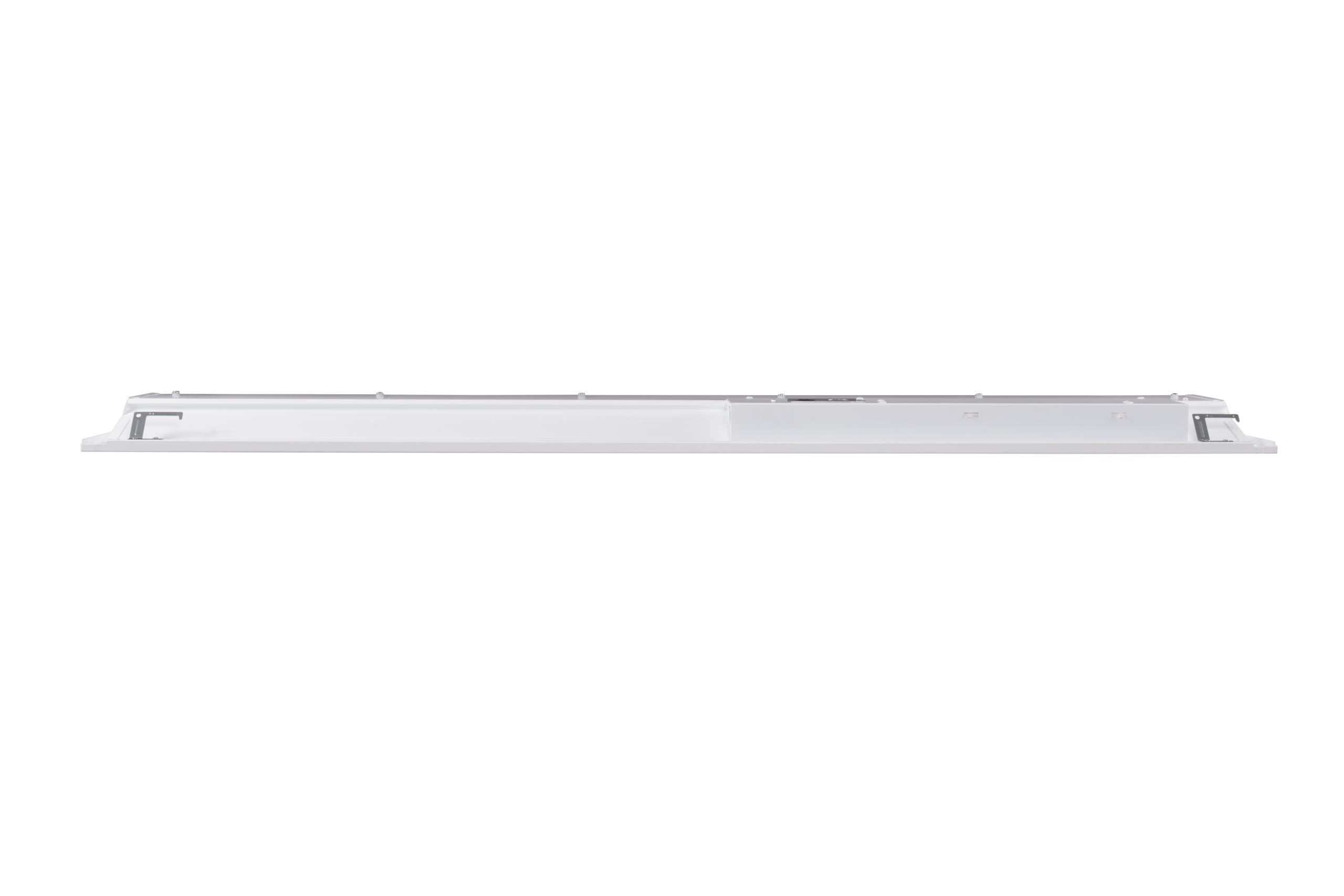

The 10-CB14-4L delivers reliable, uniform illumination in a durable, low-profile design ideal for commercial grid ceilings. Its premium white powder-coated steel housing and frosted polycarbonate lens provide smooth, glare-free light with no visible LED pixilation. Field-selectable color temperatures (3500K, 4000K, 5000K) and adjustable lumen output up to 5,000 lumens offer flexibility for a wide range of applications. Designed for easy installation, the fixture supports recessed grid mounting with optional surface, flange, or cable mounting kits. With universal 120–277V input, 0–10V dimming, and long-life LEDs rated up to 180,000 hours (L70), the CB14 delivers dependable performance and energy efficiency for commercial spaces.

HOUSING

• Premium powder-coat, steel, white housing.

ELECTRICAL

• Operating temperature (ambient): -20°C to 50°C (-4°F to 122°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC, continuous dimming capability drivers are standard.
• Type IC rated for insulated ceilings.
• Inherently protected.
• Uniform illumination with no visible LED pixilation.
• Input transient surge protection = 1.0 kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Frosted polycarbonate lens.
• Field selectable 3500k(warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.
• Selectable output provides 3,309 to 4,345 nominal lumens.
• Long-life LEDs provide 180,000 hours of operation with at least 70% of initial lumen output (L70), and 54,000 hours with at least 90% of initial lumen output (L90).
• LED color maintenance < 0.0007 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 80.

MOUNTING

• Recessed mounting in grid ceilings is standard.
• Standard earthquake clips provide secure installation in grid ceilings.
• Optional Surface Mounting Kits (10-SMKT-14) and Flange Mounting Kits (10-FLANGEKIT14-ET) provide for installation on plaster or other hard ceilings.
• Optional Cable Mounting Kits (10-PNL-CM) provide additional security, as well as suspended mounting.

CODE COMPLIANCE

• cULus listed for damp locations.
• UL listed for maximum of 4.12AWG through branch circuit conductor.
• Complies with FCC part 15, class A.

WARRANTY

• 5-year warranty on all electronics and housing.
