HOUSING
- Premium powder-coat, steel, white housing.
ELECTRICAL
- Operating temperature (ambient): -25°C to 50°C (-13°F to 122°F).
- Universal 120-277V AC voltage (50-60Hz) is standard.
- 0-10VDC, continuous dimming capability drivers are standard.
- Emergency driver option available.
- Type IC rated for insulated ceilings.
- Inherently protected.
- Uniform illumination with no visible LED pixilation.
- Input transient surge protection = 2.5kV.
- Power factor > 0.90.
- Total Harmonic distortion < 20%.
OPTICAL SYSTEM
- PMMA (polymethyl methacrylate) frosted lens.
- Field selectable 3500k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.
- Provides a range of 4,700 to 6,000 nominal lumens.
- Long-life LEDs provide 180,000 hours of operation with at least 70% of initial lumen output (L70), and 54,000 hours with at least 90% of initial lumen output (L90).
- Optional Microwave Sensor (factory installed).
- Remote control required for programming of sensor.
- LED color maintenance < -0.0012 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- Color rendering index > 80.
MOUNTING

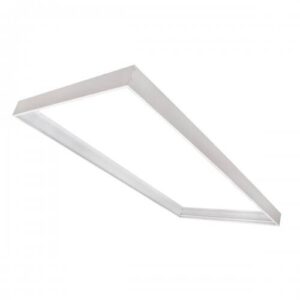

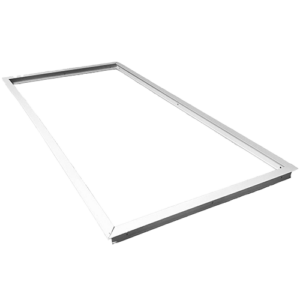

- Standard is Recessed in grid. Surface mounting and flange mount are optional.
- Optional recessed mounting in grid ceilings, fits in standard 2’x4’ grid ceilings.

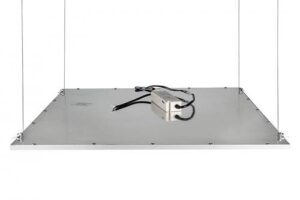

- Optional Suspension mounting using cable mount kit and earthquake clips.
- Built-in earthquake clips provide secure installation in grid ceilings.
- Easy installation in new construction or retrofit.
CODE COMPLIANCE
- cULus listed for damp locations.
- UL listed for maximum of 4.12AWG through branch circuit conductor.
- Complies with FCC part 15, class A.
WARRANTY
- 5-year warranty on all electronics and housing.
