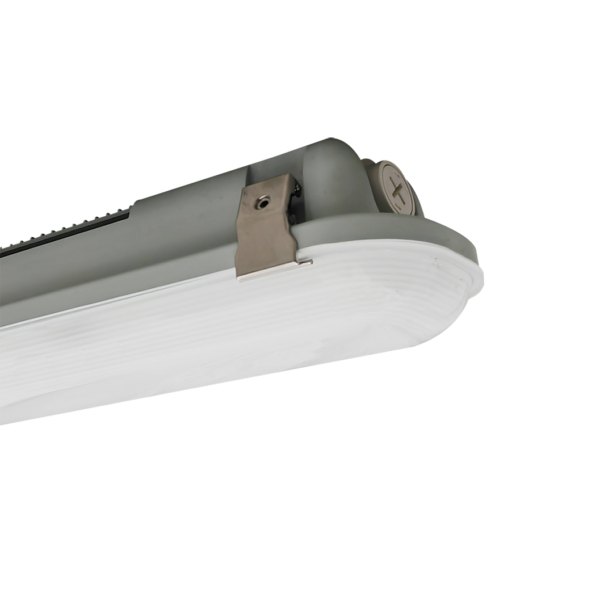

Vapor Tight Slim Lumen and Kelvin Field Selectable -Sensor-ready

ELECTRICAL

• Operating temperature (ambient): -40°C to 43°C (-40°F to 109°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Emergency driver option available.
• Input transient surge protection = 2.5kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate lens.
• Field selectable 3500K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
• Tri-lumen selectable delivers 5,000 to 7,000 nominal lumens
• Long-life LEDs provide 178,000 hours of operation with at least 70% of initial lumen output (L70), and 54,000 hours with at least 90% of initial lumen output (L90).

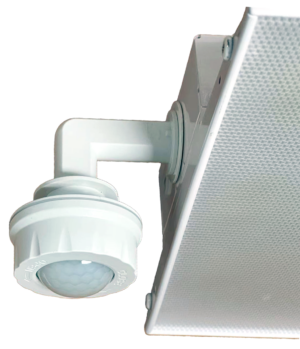

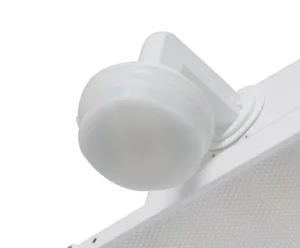

• Sensor-ready receptacle standard.
• Screw in sensor ready. Remote control required for programming (Sensor and remote control sold separately).
• LED color maintenance < -0.0016 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 80.

MOUNTING

• Surface mount kit is standard and v-hooks included.（Chain supplied by others.）

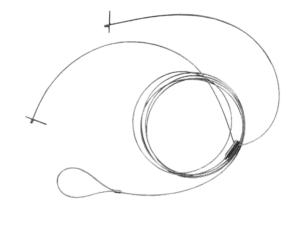

• Optional cable mount kit provides luminaire suspension.
• Easy installation in new construction or retrofit applications.

WARRANTY & LISTINGS

• cULus listed for wet locations.
• Complies with FCC part 15, class A.
• IP65 rated for 20-VTSR-765L-3CCT.
• IK10 rated for impact protection.
• Complies with NEMA 4X .
• NSF listed.
