PC25301-ORANGE PUSH IN CONNECTOR 3 HOLE- 500 PCS.

Model: 16-PC25301
Text has been copied to your clipboard
Ask for Price
How to request a quote?

product description

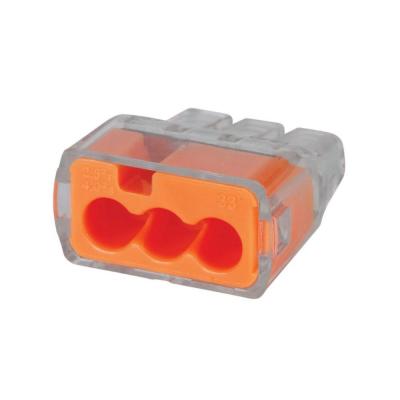

ORANGE PUSH IN CONNECTOR 3 HOLE- 500 PCS.

Key Specifications/Special Features:
 Characteristics:

  • Housing material: thermoplastic, UL 94V-2 flame-retardant
  • Wire range: #22 to #12 AWG solid wires
  • Temperature: 110 degrees Celsius
  • Wire stripping length: 11mm (0.43 inch)
  • Voltage: 600V maximum for building wiring; 1000V maximum in lighting fixtures and signs

Advantages:

  • 500 pcs per bag / 16 bags per case
  • Fast, easy, no-twist necessary, reduces installation time and twist fatigue
  • Color-coded for easy identification of different sizes
  • Compact size; takes up less space
  • No bare wires to cause shorts
  • Each wire is individually clamped; provides more secure gripping on conductor
  • Test point in back; provides easy testing with voltage tester
  • Built-in wire stripping length gauge

Applications:

  • OEM lighting manufacturing
  • Prefabricated wiring systems
  • Circuit and fixture wiring systems
