LED REDUCED PROFILE THERMOPLASTIC EMERGENCY UNIT

LED REDUCED PROFILE THERMOPLASTIC EMERGENCY UNIT

MOUNTING

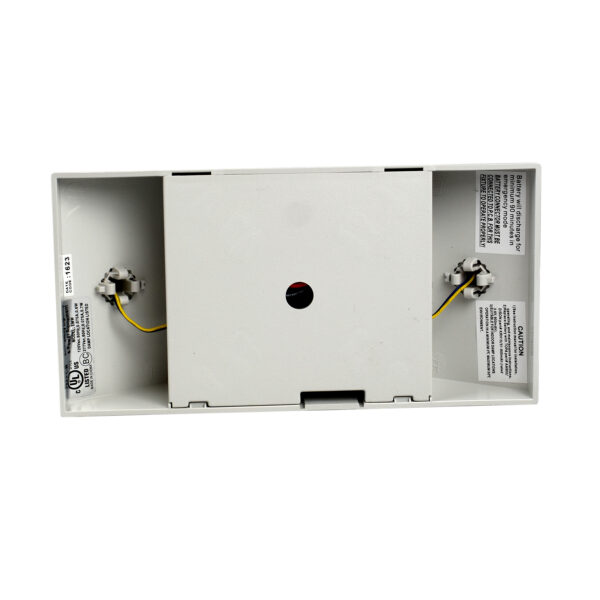

• Universal knockout pattern on back plate for surface mount.
• Suitable for wall or ceiling mount.
• Knockout for conduit applications.

HOUSING

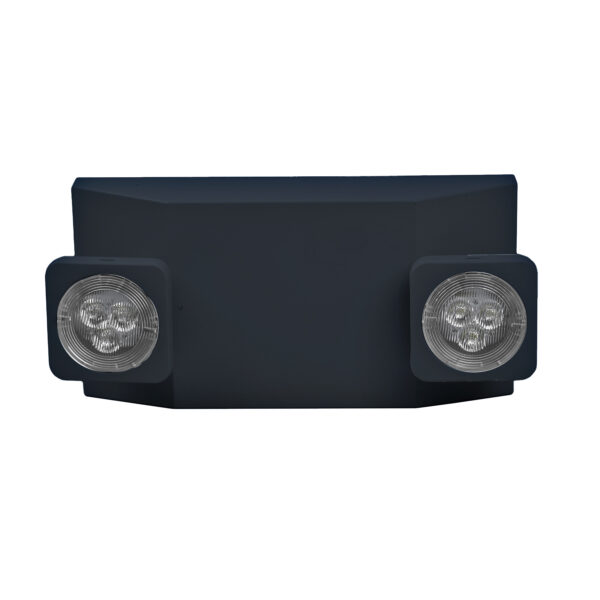

• Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.

ELECTRICAL

• Dual 120/277 voltage.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).

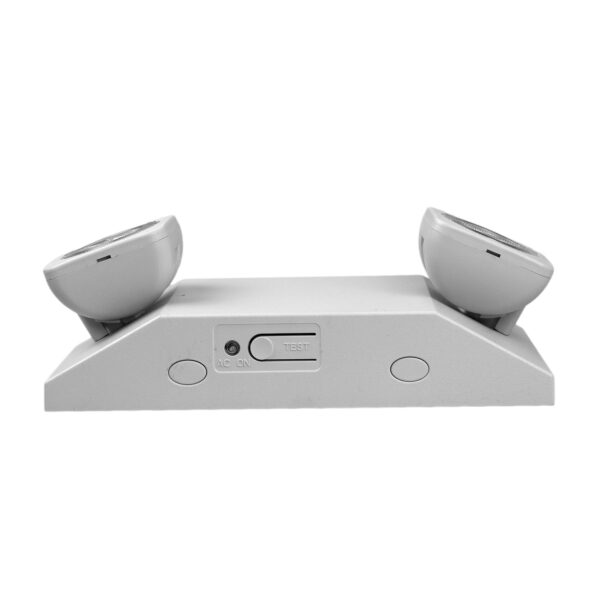

• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 3.6V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

ILLUMINATION

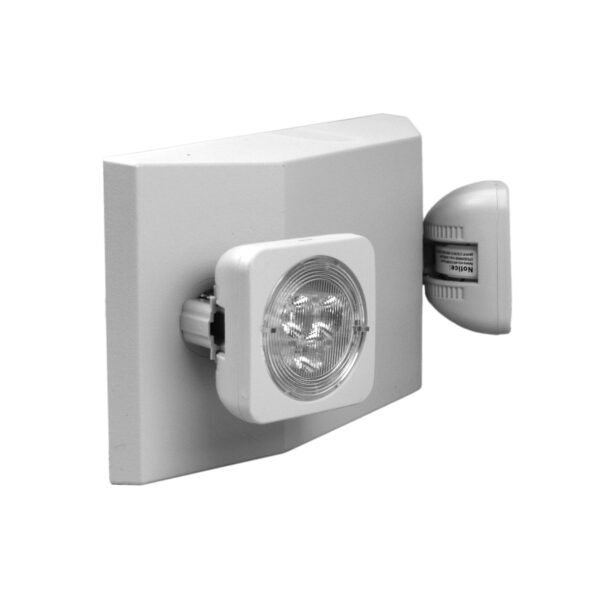

• Ultra-bright, energy efficient, long-life White LED adjustable lamp heads provide up to 30-ft center-to center spacing with 3-ft path of egress at 10-ft mounting height.
• 1.5 watt (3 LEDs x 0.50 watt) per head.
• Unique all-inclusive lamp, reflector and lens assembly.

CODE COMPLIANCE

• UL listed for damp locations (0°C – 50°C).
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,
• Local and State Codes.
• Certified to CEC under title 20 regulations.

WARRANTY

• 5-year warranty on all electronics and housing. Batteries pro-rated for 5 years.
