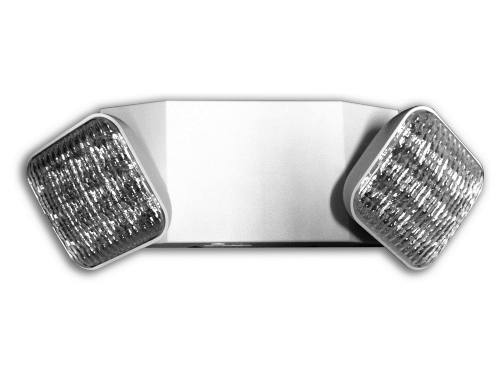

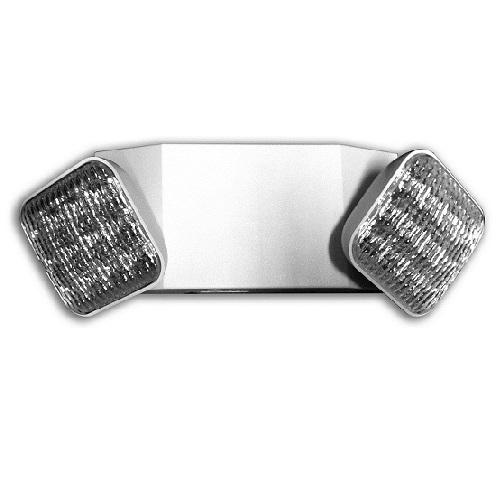

LED Emergency Light

ELECTRICAL

• Dual 120/277 voltage
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 3.6V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Remote capacity option available.

WARRANTY/LISTING

• Five year Warranty on all electronics and housing. Batteries pro rated for five years
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (0 C – 50 C)

ILLUMINATION

• Long lasting, efficient ultra bright white LED lamp heads.
• 1 watt (8 LEDs x 0.125W) per head.
• High performance chrome-plated metallized reflector and plastic lens for optimal light distribution.
• Adjustable LED lamp heads provides optimal center-to-center spacing. Optional high-lumen heads are available for increased center-to-center spacing.

HOUSING

• Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.

OPTIONS

• HL: 12-LED heads provide increased center-to-center spacing (1.5W per head).
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.

MOUNTING

• Surface mount via quick-connect back plate; fits most standard size junction boxes and snaps into place to make internal electrical connections.
• Top and side knockout for conduit applications.
• Suitable for wall or ceiling mount.
