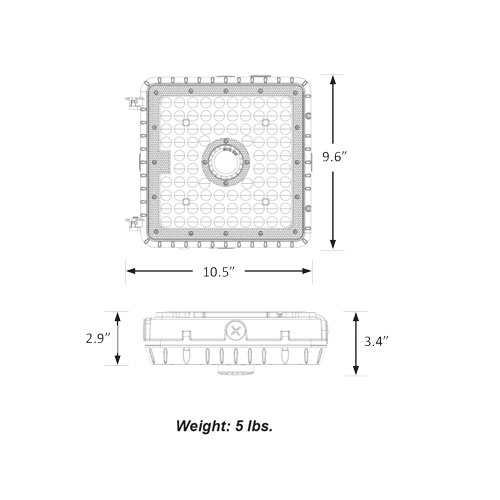

LED Canopy Lumen & Kelvin Field Selectable

Model: 07-CP-LKFS

product description

FEATURES
• Field selectable 3000k (warm white), 4000k (neutral white),
and 5000k (cool white) color temperatures
• Long-life LEDs provide 149,000 hours of operation with at
least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90)*
• LED chromaticity based on < 6-step ANSI quadrangles
• LED color maintenance < 0.002 chromaticity shift (Δu’v’) over
the initial 6,000 hours of operation
• Provides a range of 6,800 to 10,500 nominal lumens
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming drivers are standard
• Mounting options include surface-mounting and pendant-mounting using ¾” electrical conduit
• Optional occupancy/daylight sensor provides both on/off and dimming functions
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Die cast aluminum housing with dark bronze or white powder coat finish
• Polycarbonate lens
• Easy installation in new construction or retrofit

* L70 & L90 hours are IES TM-21-11 calculated hours

WARRANTY & LISTINGS
• cULus listed for wet locations in ambient temperatures from
-40°C to 40°C (-40°F to 104°F)
• IP65 rated for ingress protection
• Lens is IK08 rated for impact
• Complies with FCC Part 15, class B
• Complies with IEC/EN61000-4-5, input transient surge immunity protection (4kV)
• 5-year warranty on all electronics and housing
