Lumen selectable- 2 models cover lumen outputs from 20,000 lumens to 47,000 lumens. Color Temperature (CCT) selectable 3500K/4000K/5000K; Sensor -ready, order Screw-in PIR or Microwave sensor separately.
HOUSING

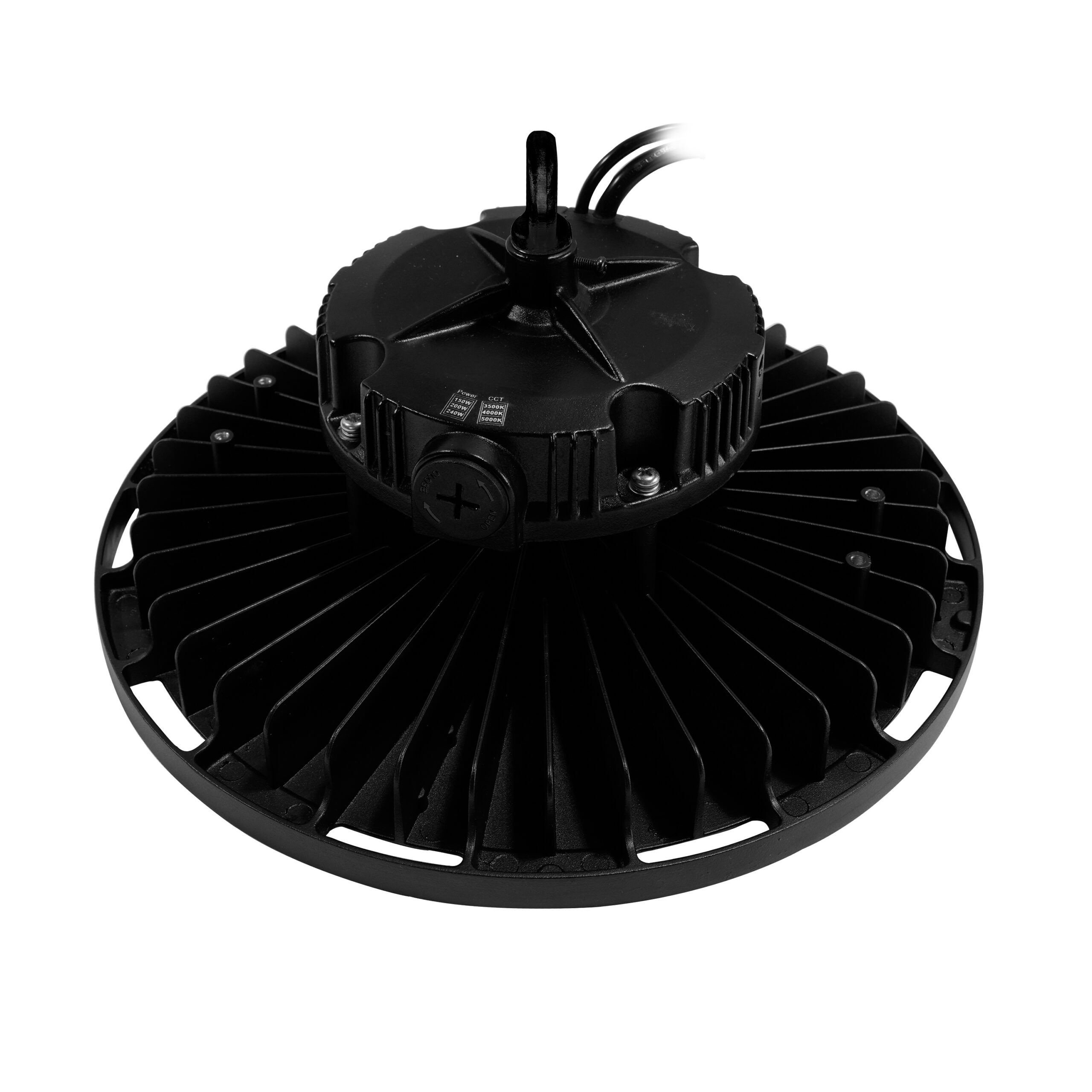

- Black or white powder-coated die cast aluminum housing.
ELECTRICAL
- Operating temperature (ambient): -40°C to 40°C (-40°F to 104°F).
- Universal 120-277V AC voltage (50-60Hz).
- 347-480V is optional (remote mount sold separately).
- 0-10VDC dimming driver.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Input transient surge protection = 6kV.
- Emergency driver option available.
OPTICAL SYSTEM
- Efficacy up to 200 Lumens per Watt (LPW) @CCT=4000K.
- Field selectable 3500K, 4000K, and 5000K color temperatures.
- 20-HBRHESR-302420L-3CCT Selectable output delivers from 20,306 to 29,248 nominal lumens, with 3 settings.
- 20-HBRHESR-474133L-3CCT Selectable output delivers from 31,830 to 46,701 nominal lumens, with 3 settings.
- Long-life LEDs provide 204,000 hours of operation with at least 70% of initial lumen output (L70), and 61,000 hours with at least 90% of initial lumen output (L90).
- Sensor -ready receptacle comes standard. Screw-in sensor and remote control sold separately.
- LED color maintenance <0.00018 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- Color Rendering Index > 70.

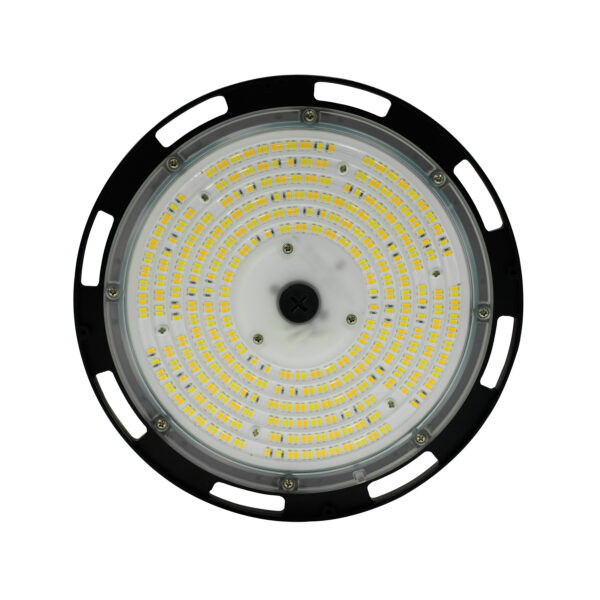

- Polycarbonate lens.
MOUNTING
- Suspension from eyebolt (included) is standard.

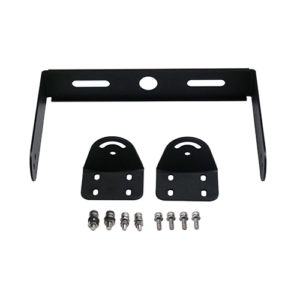

- Ceiling-mounted installation using optional yoke mounting bracket, provides up to 180° of adjustability.
- Two ways to mount luminaire to electrical conduit:
- Attach conduit (1/2” NPS) to optional yoke mounting bracket.

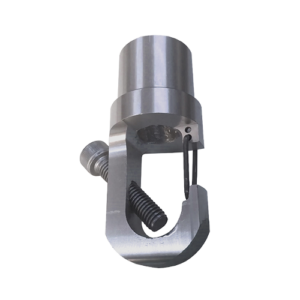

- Optional pendant snap hook (for use with 3/4” NPS).
CODE COMPLIANCE
- cULus listed for wet locations.
- Complies with FCC Part 15, class A.
- IP65 rated for ingress protection.
- IK08 rated for Lens impact protection.
WARRANTY
- 5-year warranty on all electronics and housing
