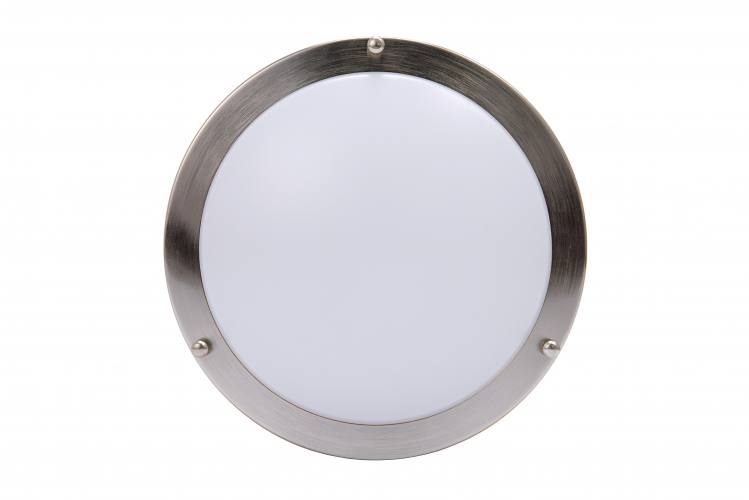

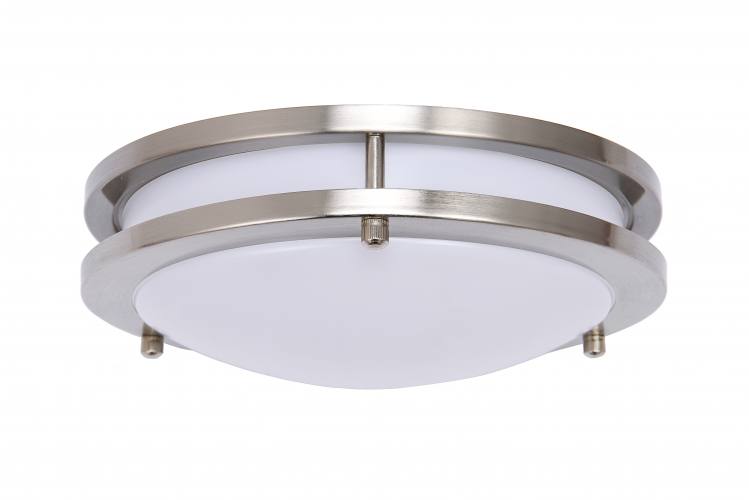

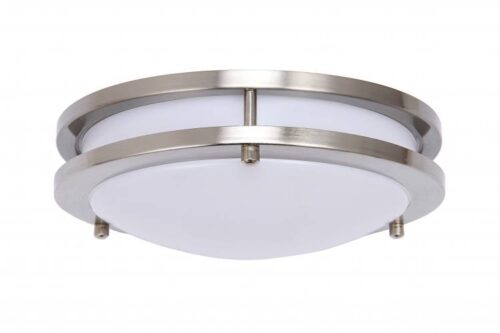

Double-Ring, Surface-Mounted Luminaire, Field Selectable LED Colors, 27K-5K, 1000-2000 Lumens, Energy Star, 5 Year Warranty

Model: 20-DR

product description

Double-Ring, Surface-Mounted Luminaire, Field Selectable LED Colors, 27K-5K, 1000-2000 Lumens, Energy Star, 5 Year Warranty



FEATURES

▪ Field selectable 2700k (soft white), 3000k (warm white), 3500k(warm/neutral white), 4000k (neutral white), and 5000k (coolwhite) color temperatures*
▪ Long-life LEDs provide at least 70% of initial lumen output (L70)for 93,000 hours of operation**
▪ Color rendering index (Ra) > 90
▪ 20-DR10 provides 1,000 nominal lumens from 15 nominal watts
▪ 20-DR14 provides 1,800 nominal lumens from 20 nominal watts
▪ 20-DR18 provides 2,000 nominal lumens from 20 nominal watts
▪ Input voltage = 120V 60Hz
▪ Power factor > 0.90
▪ Triac dimming
▪ Steel housing, brushed nickel finish
▪ Plastic lens
▪ Easy installation in new construction or remodel applications
▪ This device is not intended for use with emergency exits





WARRANTY & LISTINGS

▪ cETLus listed for damp locations in ambient temperatures of 15°C to 40°C (5°F to 104°F)
▪ Energy Star qualified
▪ Title 24 qualified
▪ Complies with FCC Part 15, class B
▪ Input transient protection = 1kV
▪ 5-Year Warranty of all electronics and housing

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.
