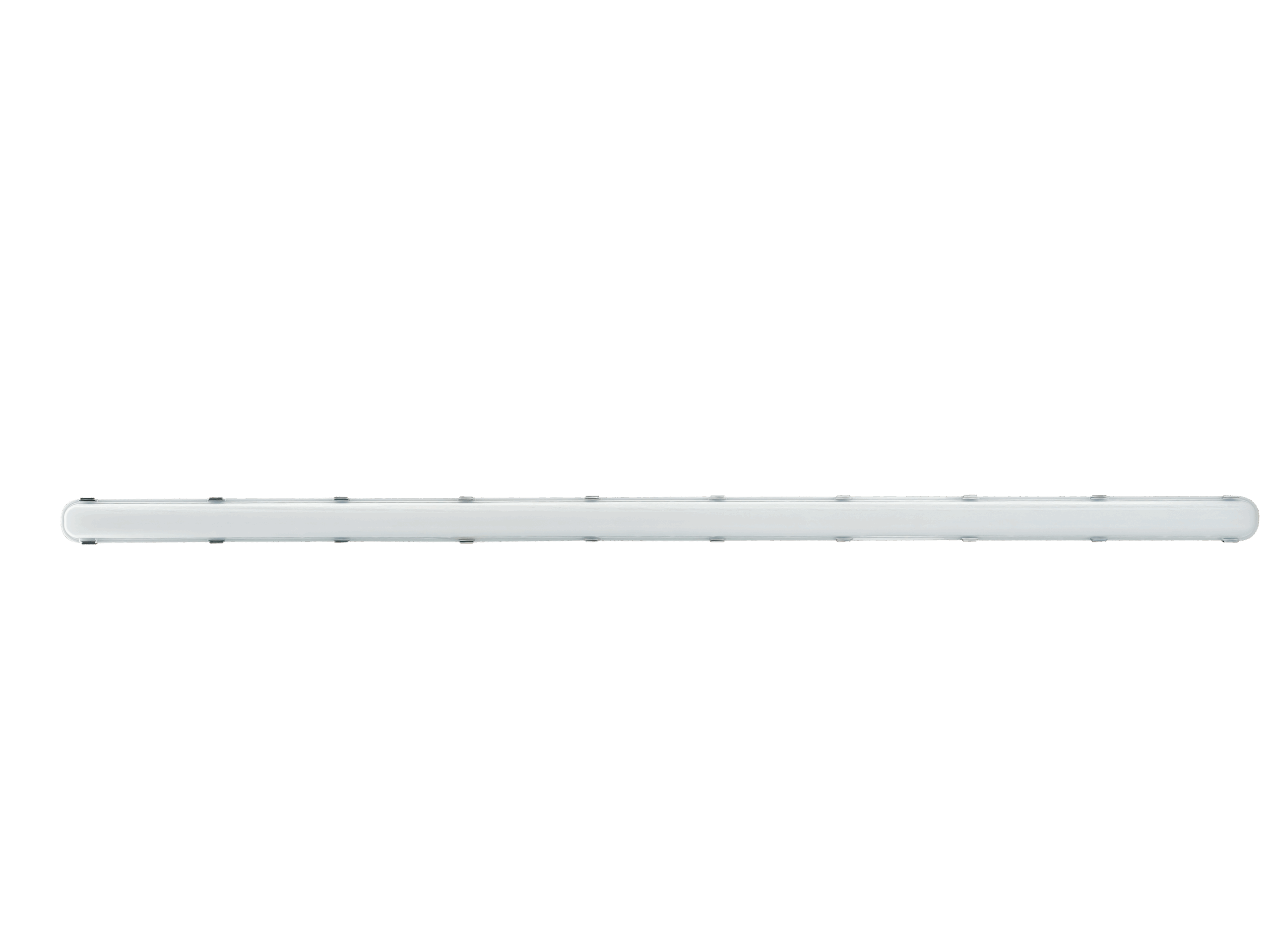

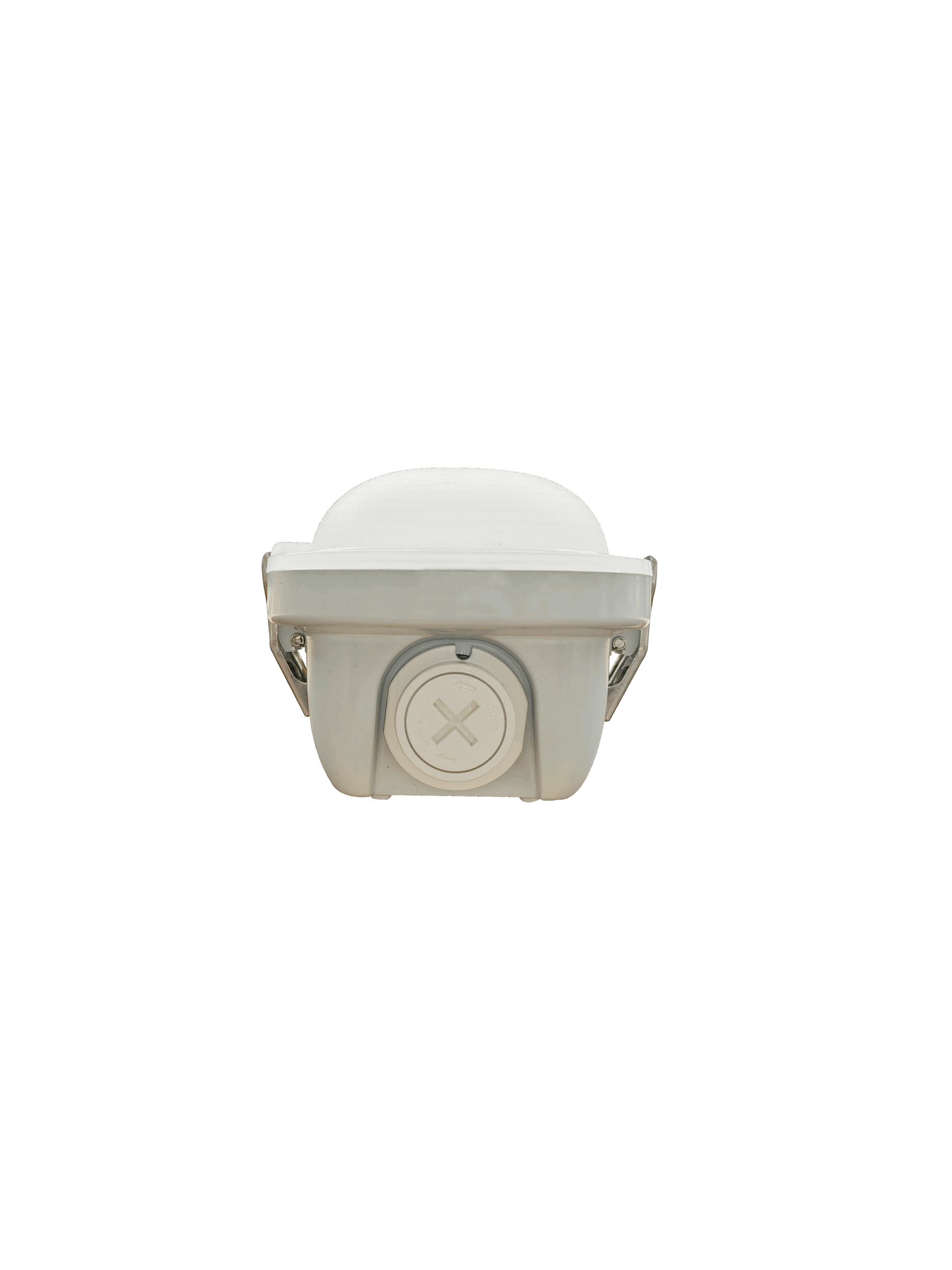

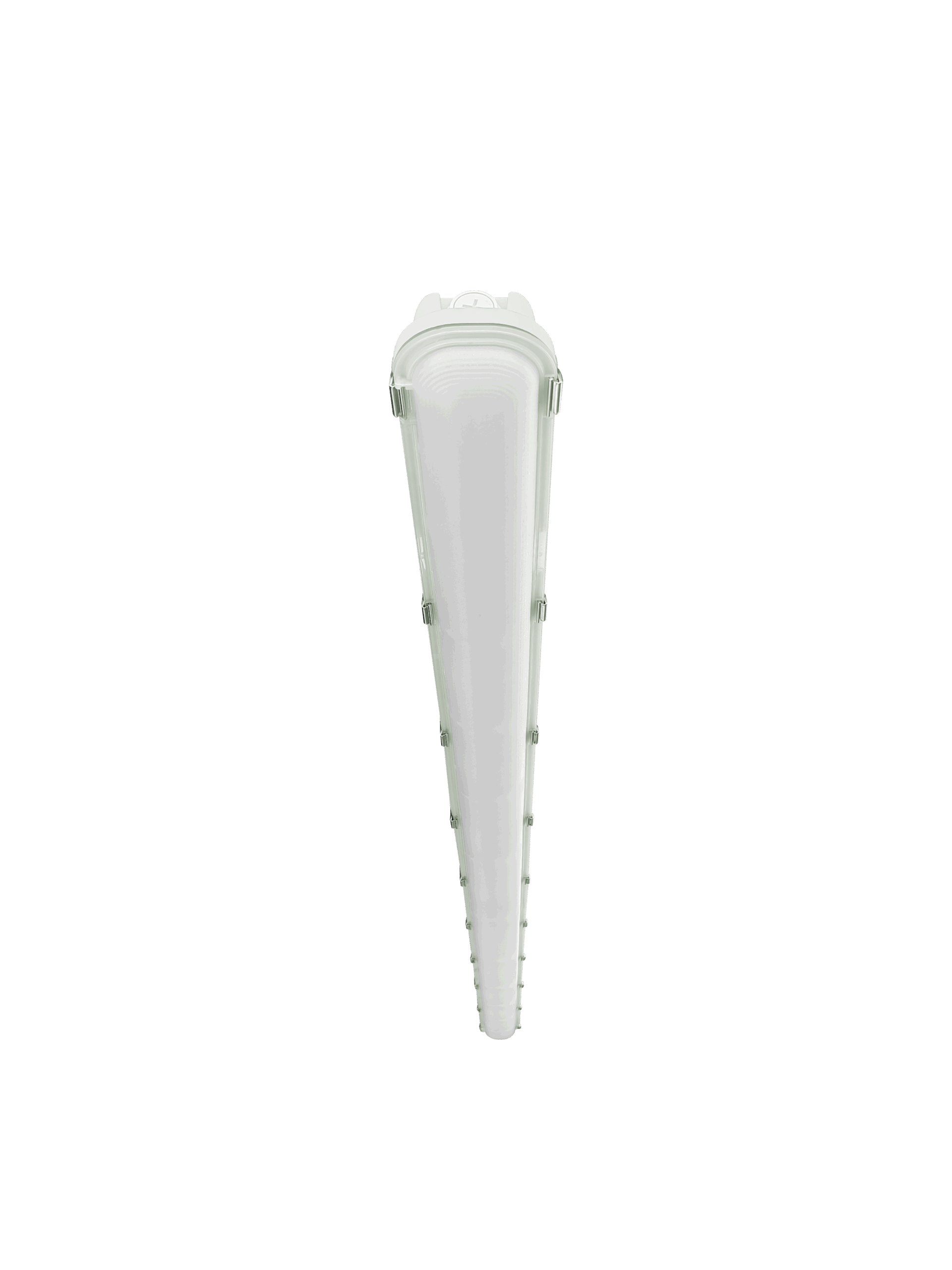

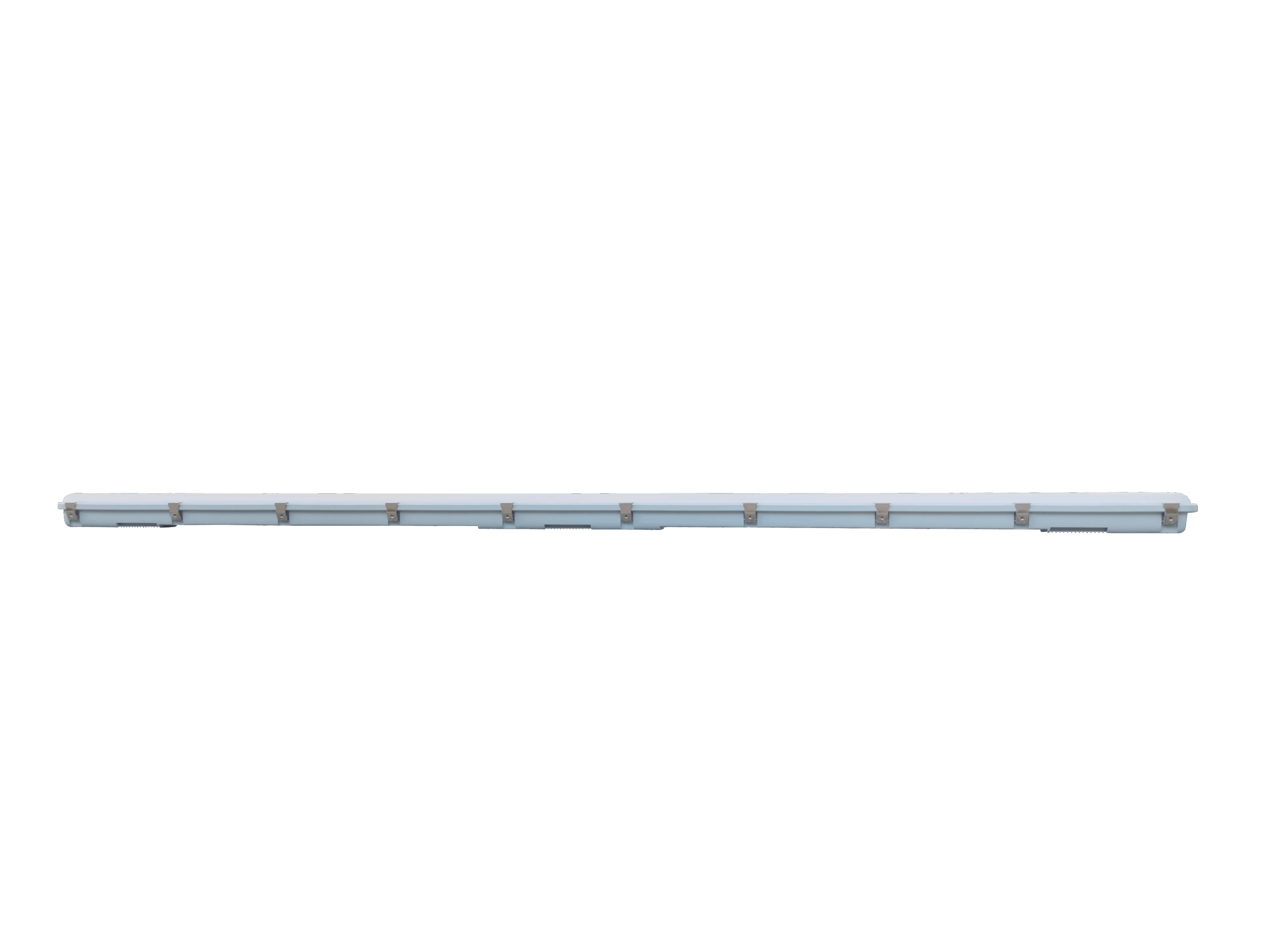

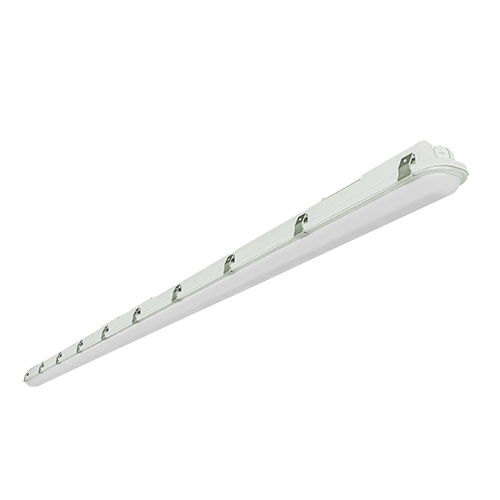

8-ft Vapor Tight Fixture – Lumen and Kelvin Field Selectable; Sensor-ready-9,386 to 12,716 lumens

HOUSING

• Light gray polycarbonate housing with stainless steel latches

ELECTRICAL

• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Input transient surge protection = 2kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate lens.
• Field selectable 3500K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
• Tri-lumen selectable delivers 9,386 to 12,716 nominal lumens.
• Long-life LEDs provide 174,000 hours of operation with at least 70% of initial lumen output (L70), and 53,000 hours with at least 90% of initial lumen output (L90).
• Sensor-ready receptacle standard.
• Screw in sensor ready. Remote control required for programming (Sensor and remote control sold separately).
• LED color maintenance < -0.0005 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 80.

MOUNTING

• Surface mount kit is standard and v-hooks included. (Chain not included.)
• Optional cable mount kit provides luminaire suspension.
• Easy installation in new construction or retrofit application.

WARRANTY & LISTINGS

• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP66 rated for ingress protection.
• IK10 rated for impact protection.
• 5-year warranty on all electronics and housing.
