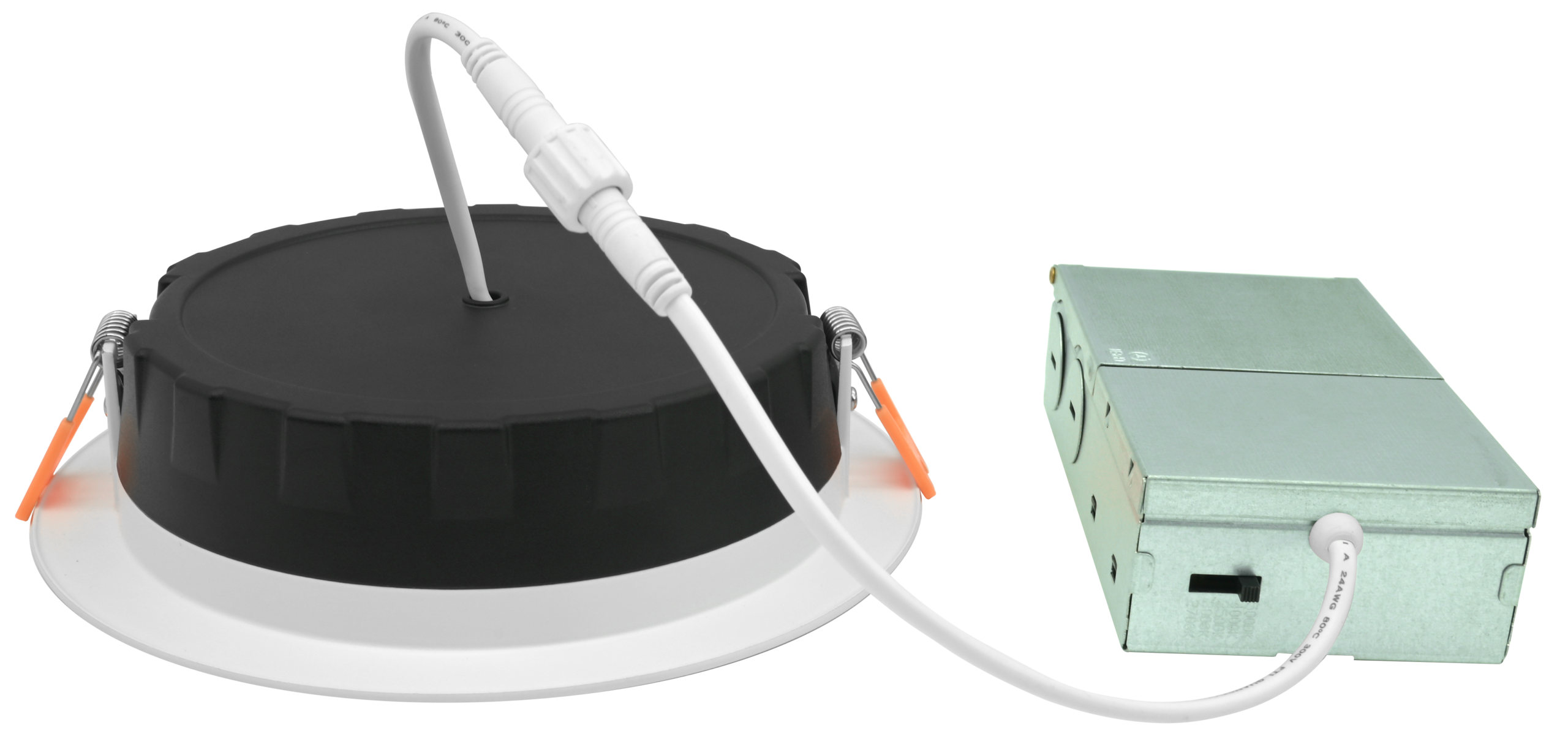

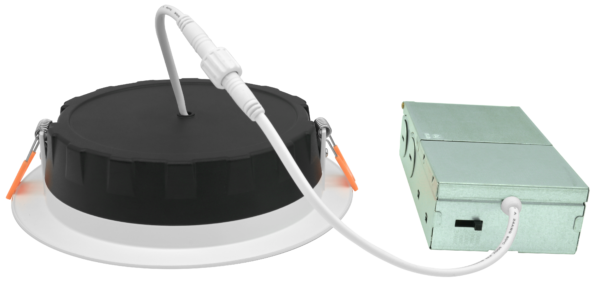

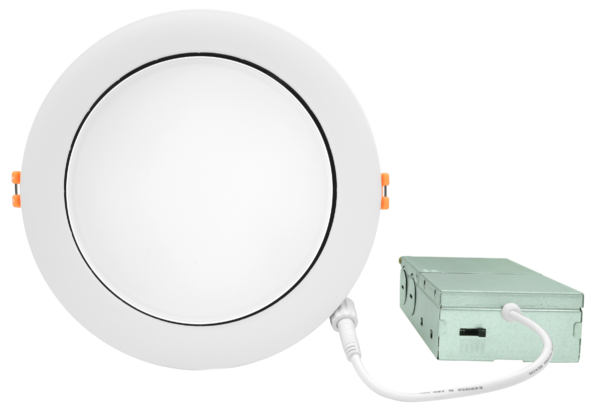

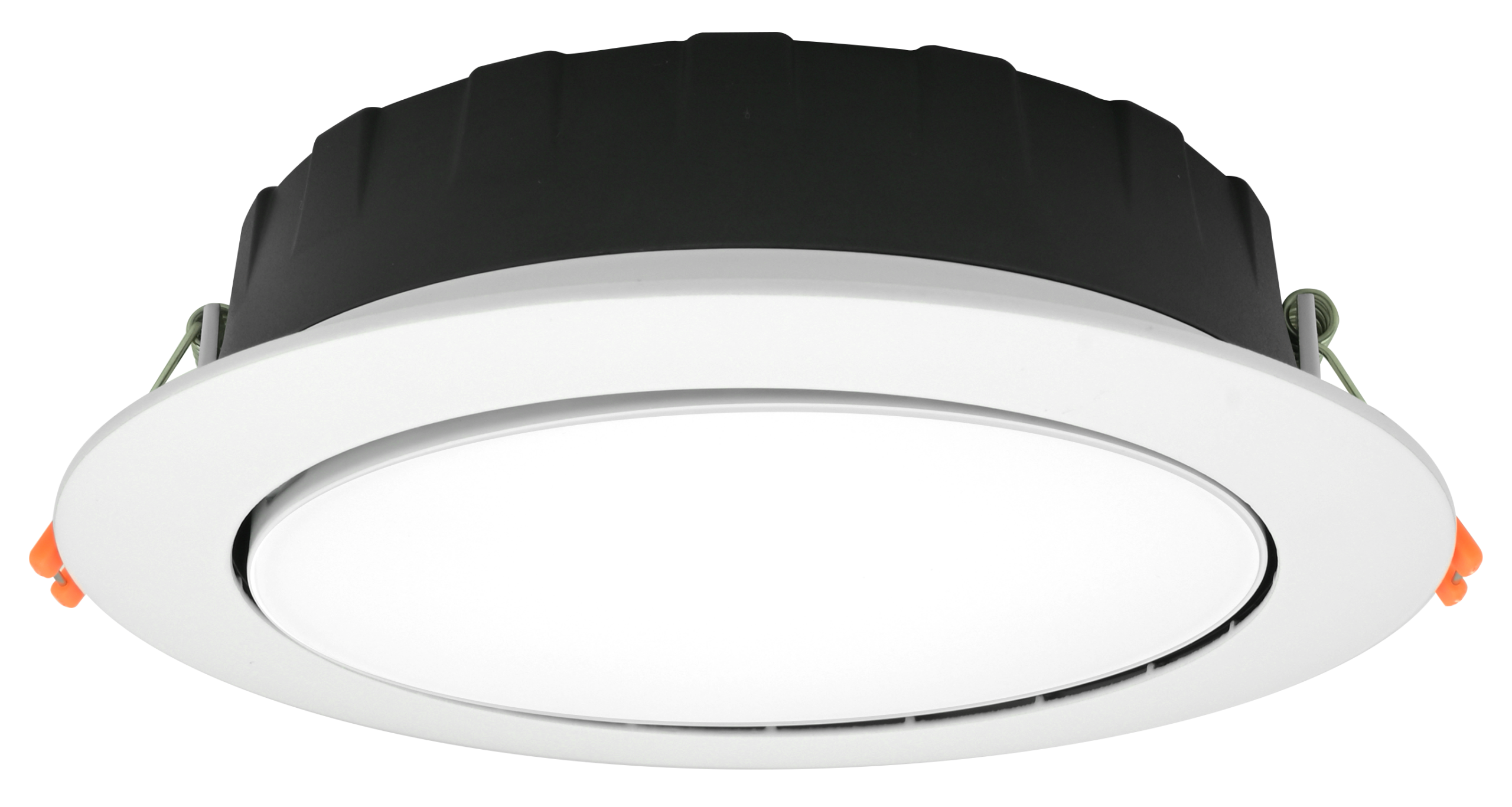

6″ Gimbal Canless Recessed Downlight

HOUSING

White powder coated aluminum housing.

ELECTRICAL

• Operating temperature (ambient): -20°C to 45°C (-4°F to 113°F).
• Universal 120V AC voltage (60Hz) is standard.
• 06-IMODCGR6-10L-5CCT = 14W.

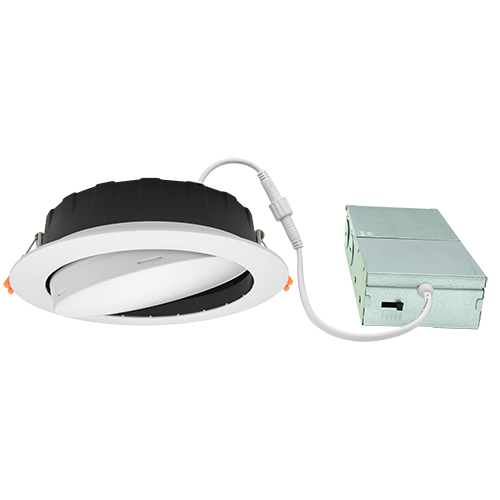

• Adjustable 180° rotation and 20° tilt.
• Triac dimming.
• Input transient surge protection = 1kV.
• Type IC rated.
• Power Factor > 0.90.
• Total Harmonic Distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate diffuser.
• Field selectable 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
• 06-IMODCGR6-10L-5CCT delivers 1,033 to 1,210 nominal lumens.
• Long-life LEDs provide 170,000 hours of operation with at least 70% of initial lumen output (L70),
and 52,000 hours with at least 90% of initial lumen output (L90).
• LED color maintenance < 0.0013 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Beam angle 120°.
• Color Rendering Index > 90.

MOUNTING

• Recessed in ceiling.
• Suitable for most new constructions.

CODE COMPLIANCE & WARRANTY

• cETLus listed for wet locations.
• Energy Star certified.
• Complies with FCC part 15, class B.
• Complies with Title 24.

• 5-year warranty on all electronics and housing
