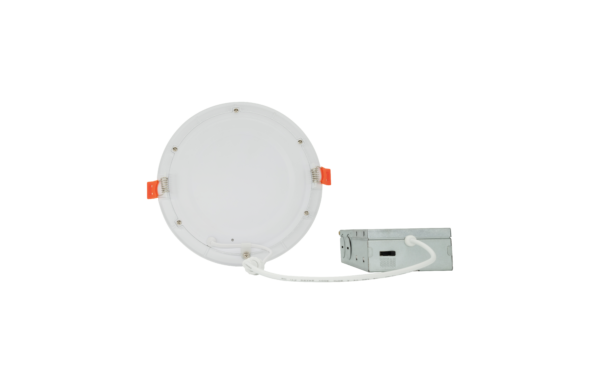

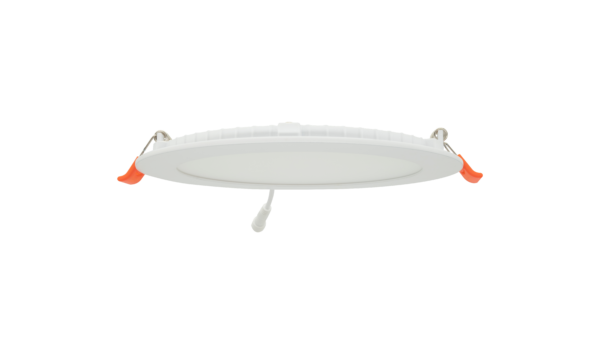

6″ Flat Panel – Kelvin Field Selectable

Model: 10-FPR6-10L-KFS
Text has been copied to your clipboard
Ask for Price
How to request a quote?

product description

HOUSING

  • Premium powder-coat, aluminum, white housing.

ELECTRICAL

  • Operating temperature (ambient): -20°C to 45°C (-4°F to 113°F).
  • Universal 120V AC voltage (60Hz) is standard.
  • Triac dimming.
  • Beam angle 120°.
  •  Input transient surge protection = 0.5kV.
  • Type IC.
  • Power factor > 0.90.
  • Total Harmonic distortion < 20%.

OPTICAL SYSTEM

  • Polystyrene lens.
  • Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
  • Provide a range delivers 400 to 1400 nominal lumens*.
  • Long-life LEDs provide 139,000 hours of operation with at least 70% of initial lumen output (L70)**.
  • Color rendering index > 90%.

MOUNTING

  • Recessed ceiling, new construction or retrofit.
  • No recessed housing required for installation.
  • Access above ceiling required.
  • Covered ceiling mount only.

CODE COMPLIANCE

  • cETLus listed for wet locations not exceeding 45°C (113°F).
  • Complies with FCC part 15, class B.

WARRANTY

  • 5-year warranty on all electronics and housing.
