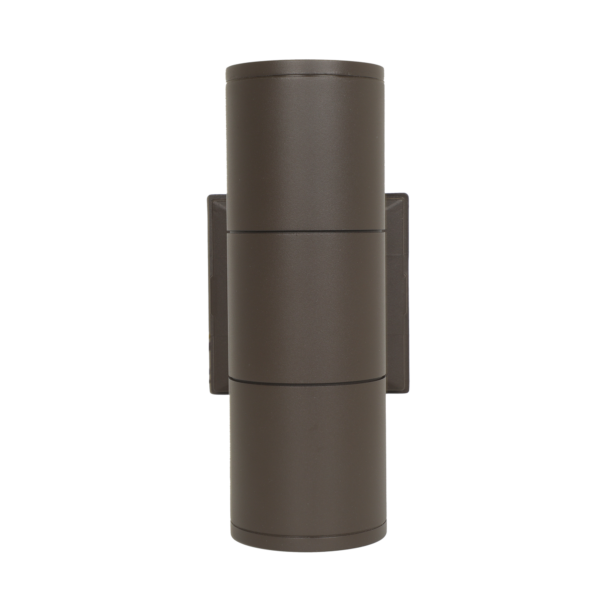

3″ Up/Down Cylinder Luminaire

HOUSING

Premium powder-coat, aluminum, Dark bronze housing.

ELECTRICAL

• Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• Field selectable output, with 3 levels for each model.
• 0-10VDC dimming drivers are standard.
• Selectable switch allows for light to be directed up only, down only, or both up and down.
• Internal photocell is standard. Photocell can be enabled or disabled by switch.
• Surge protection = 4kV.
• Power factor > 0.90. Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• High temperature resistant tempered glass lens.
• Field selectable 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.
• CYL-UPDN-976L-3CCT provides a range of 600 to 900 nominal lumens.
• Long-life LEDs provide 140,000 hours of operation with at least 70% of initial lumen output (L70).
• Beam angle 35°.
• LED color maintenance < 0.00342 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 90.

MOUNTING

• Wall mount kit included.
• Easy installation in new construction or retrofit applications.

CODE COMPLIANCE

• cULus listed for wet locations.
• Complies with FCC part 15, class B.
• IP65 rated for ingress protection.

WARRANTY

5-year warranty on all electronics and housing
