HOUSING
- White power-coated steel housing.
ELECTRICAL
- High ambient operating temperature up to 45°C.
- Universal 120-277V AC voltage (50-60Hz).
- 0-10VDC dimming driver.
- IC Rated.
- Input transient surge protection =1kV.
- Optional Emergency drivers are available.
- Power Factor > 0.9.
- Total Harmonic Distortion < 20%.
OPTICAL SYSTEM
- Efficacy up to 151 Lumens per Watt.
- Field selectable 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Selectable output delivers from 3,051 to 5,898 nominal lumens, with 4 settings.
- Long-life LEDs provide 180,000 hours of operation with at least 70% of initial lumen output (L70), and 54,000 hours with at least 90% of initial lumen output (L90).
- Sensor-ready receptacle comes standard. Push-in sensor and remote control sold separately.
- LED color maintenance <0.0007 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- PMMA (Polymethyl methacrylate) LED lenses for optimal light distribution, efficiency and longevity.
- Color Rendering Index > 80.
MOUNTING
- Recessed mounting in grid ceilings is standard.

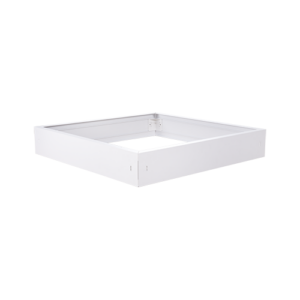

- Optional Surface Mounting Kits (10-SMKT-22S) and Flange Mounting Kits (10-FLANGEKIT22-ET) provide for installation on plaster or other hard ceilings.
- Optional Cable Mounting Kits (10-PNL-CM) provide additional security, as well as suspended mounting.
CODE COMPLIANCE
- cULus listed for damp locations and insulated ceilings.
- Complies with FCC Part 15, Class A.
- IP4X rated for ingress protection.
WARRANTY
- 5-year warranty on all electronics and housing.
