The 23-MPS Series Inverter Systems are designed to provide sinusoidal AC emergency power to connected incandescent, fluorescent, or LED fixtures between 20 and 55 watts. Surface, recessed, or ceiling T-Grid mount models are designed for easy installation on or near controlled fixtures. 23-MPS models support Normally-ON, Normally-OFF, switched operation or any combination thereof.
FEATURES
- For powering Incandescent, Fluorescent, Induction and LED fixtures
- True sinusoidal AC pulse width modulated (PWM) design provides clean 60Hz. emergency output
- Universal 120/277 VAC, 60Hz. input/output
- Unit capacities of 20W to 55W
- “Soft Start” design reduces fixtures inrush current

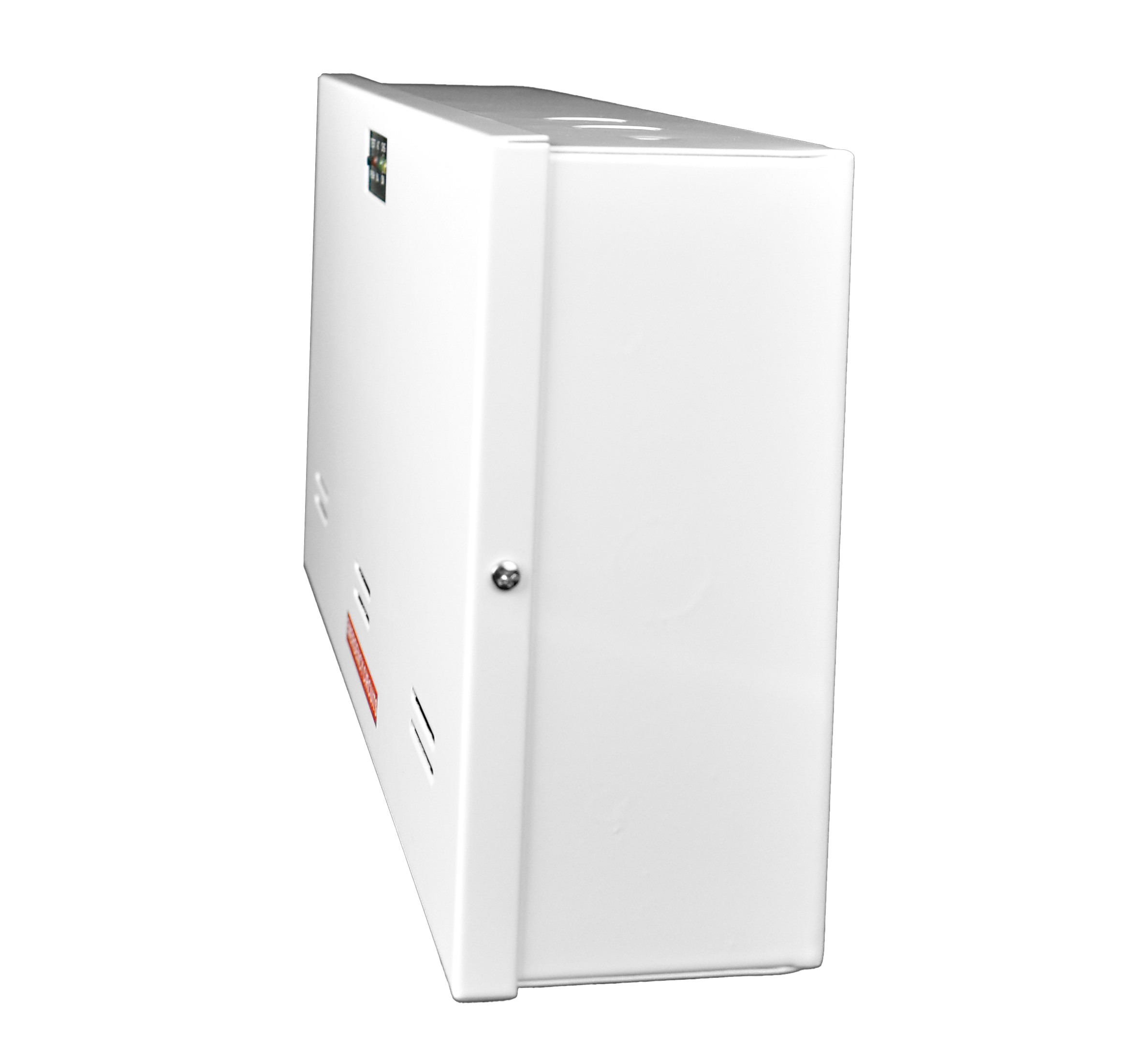

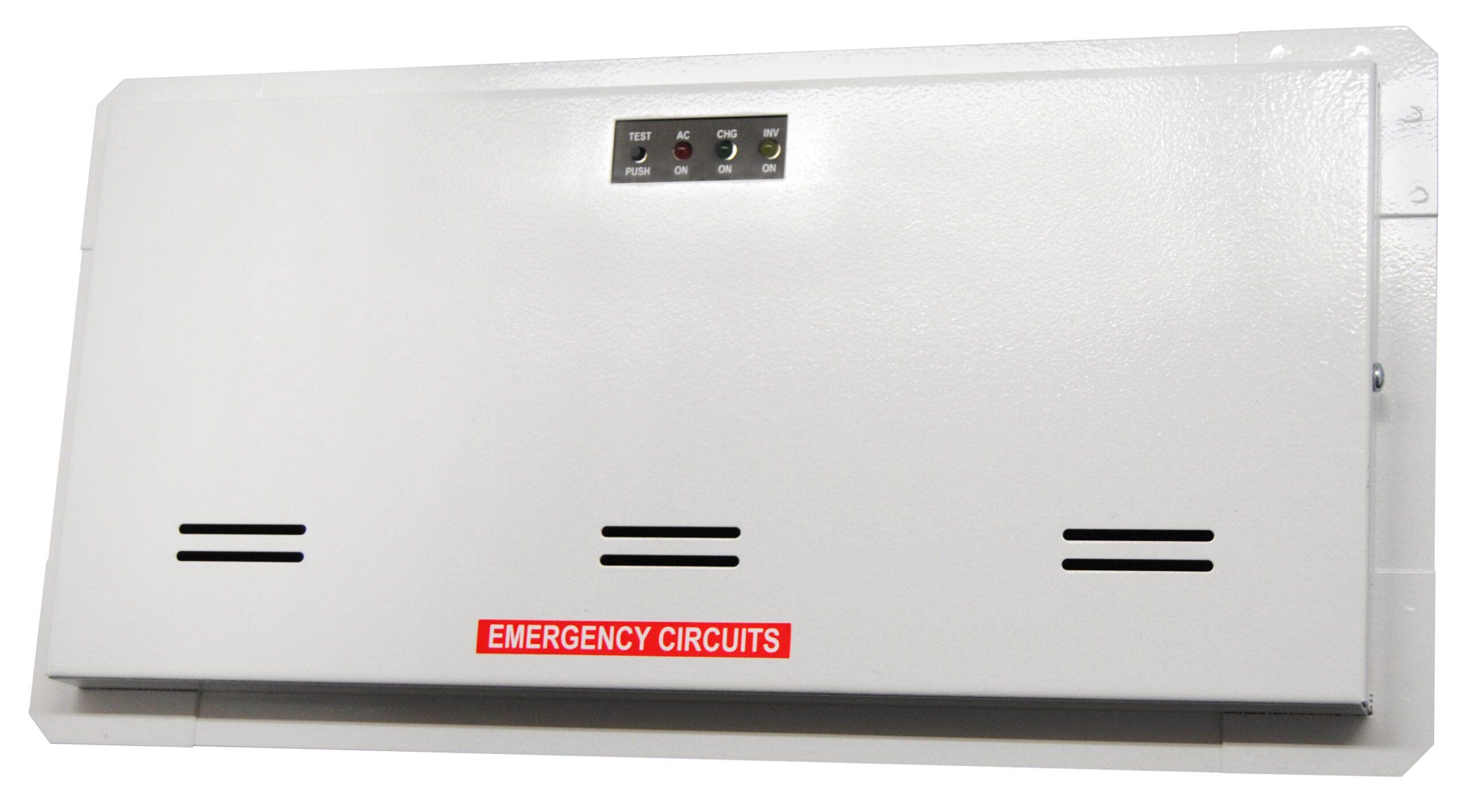

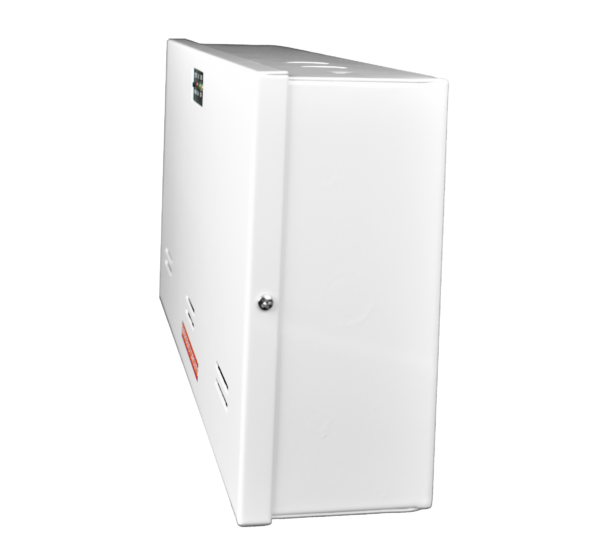

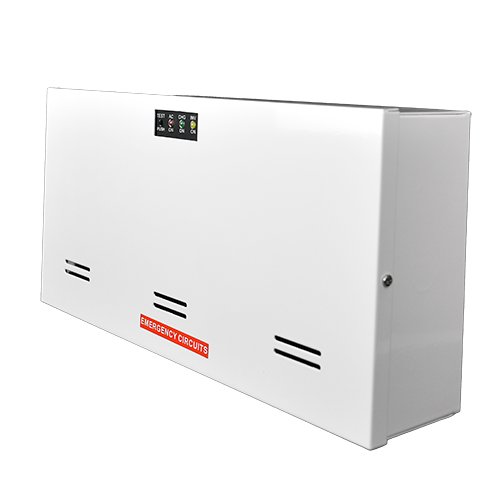

- Surface, recessed or T-Grid mount models
- Lumen output from fixture is 100% of nominal
- Unique design eliminates compatibility problems with LED drivers as well as fluorescent ballasts
- Normally-ON and/or Normally-OFF load output
- Provisions for local switching capability – Always-ON during emergency conditions regardless of local switch position
- Temperature compensated, dual-mode charger includes low voltage disconnect feature to provide protection against battery deep discharge
- Solid state, line latched low voltage disconnect provides protection against battery deep discharge
- Maintenance-free Lead-Calcium and premium grade Nickel-Cadmium battery models offered

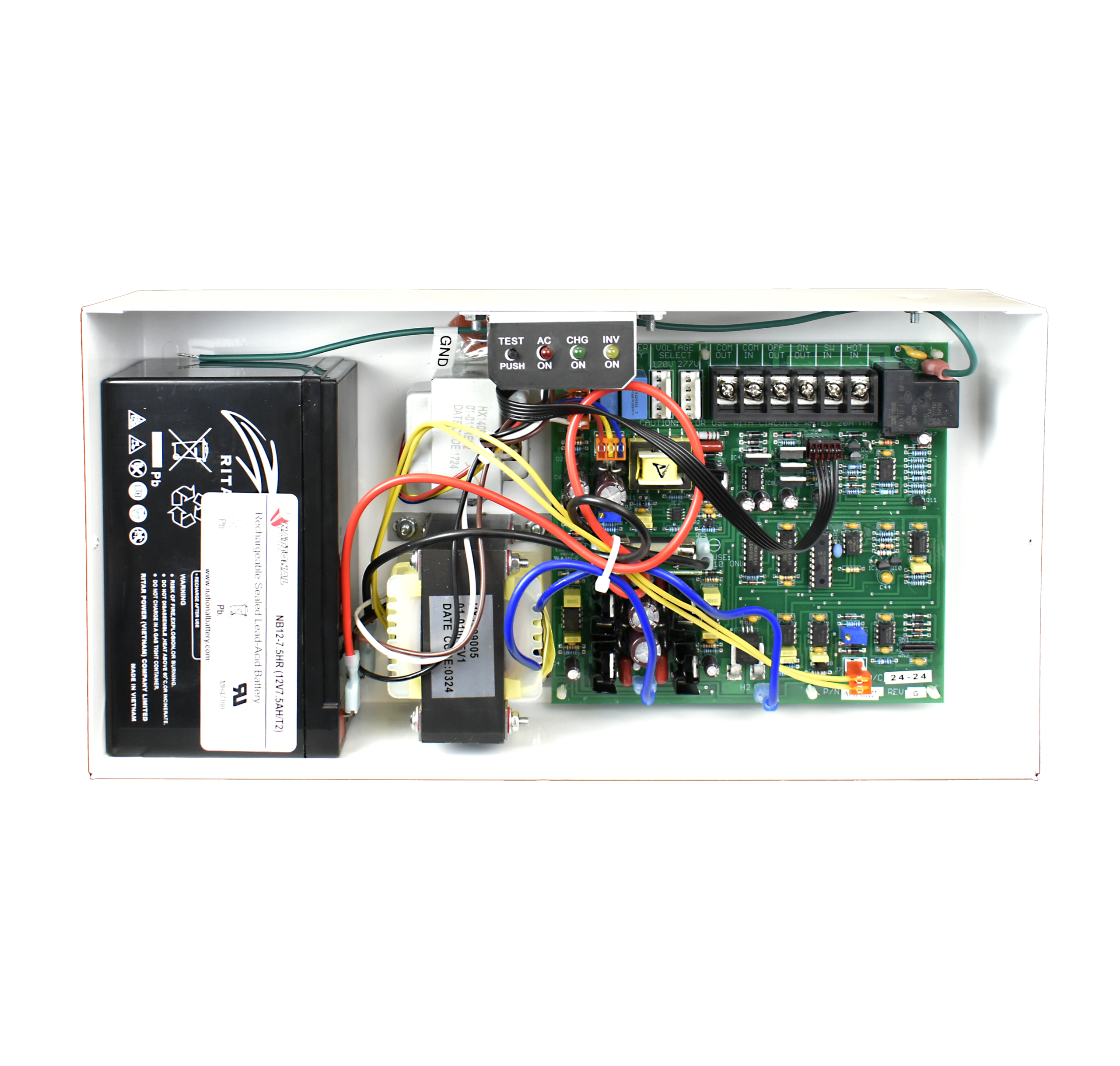

- Control panel with momentary test switch, AC-ON, Charge-ON and Inverter-ON LED indicators
- Battery circuit fuse protected
- Reverse battery and AC lockout protection
