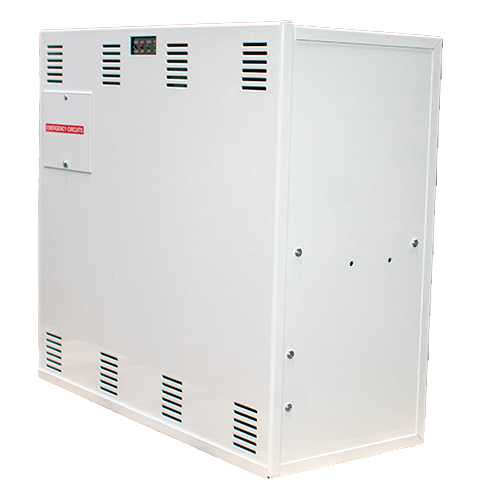

The 23-LPS Series is designed to provide 375 to 600 watts of emergency power to incandescent, fluorescent, induction and/or LED fixtures. The 23-LPS unit provides clean, sinusoidal AC output power allowing it to be remotely mounted up to 1,000 feet away from the controlled fixture(s). Unlike a ballast fluorescent emergency pack, the 23-LPS provides power to the input side of the fixture, (including the ballast) eliminating any chance of incompatibility. The 23-LPS Series is designed for surface mounting. All 23-LPS systems will provide emergency power output for a minimum of 90-minutes.
FEATURES
- For powering Incandescent, Fluorescent, Induction and LED fixtures
- Sinusoidal output eliminates compatibility problems
- Universal 120/277 VAC, 60Hz. input/output
- Unit capacities up to 600 watts
- “Soft Start” design reduces fixtures inrush current
- Unit may be installed up to 1,000 feet from controlled fixture (s)
- Lumen output from fixture is 100% of nominal
- Unique design eliminates compatibility problems with LED drivers as well as fluorescent and induction ballasts
- Compatible with dimming ballasts
- Normally-on and/or Normally-off load output
- Provisions for local switching capability – Always on during emergency conditions regardless of local switch position
- Emergency fixtures can be on, off or switched
- Solid state, line latched low voltage disconnect provides protection against battery deep discharge
- Long life, maintenance-free lead-calcium battery
- Momentary test switch
- AC-On, Charge-On and Inverter-On LED indicators
