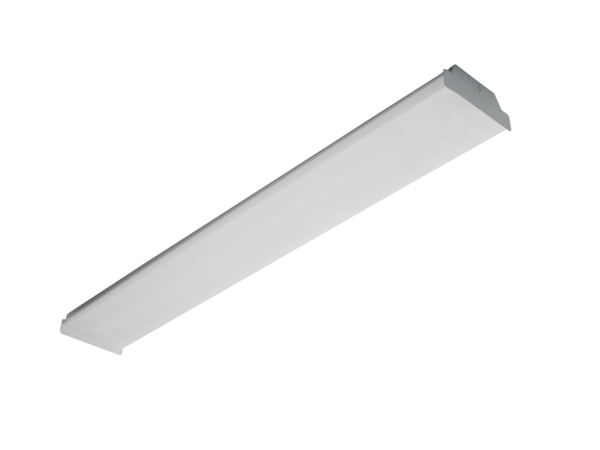

Wrap Light Lumen & Kelvin Field Selectable

Model 10-WR-LKFS

product description


• Field selectable 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures
• Long-life LEDs provide 196,000 hours of operation with at least 70% of initial lumen output (L70), and 60,000 hours with at least 90% of initial lumen output (L90)*
• LED chromaticity based on < 4-step ANSI quadrangles
• LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation

• 10-WR-5L-LKFS provides a range of 4,100 to 5,800 nominal lumens and 132 to 154 lumens per watt (LPW) • Universal 120-277 AC voltage (50-60Hz) is standard • 0-10vdc dimming drivers are standard • Power factor > 0.90
• Total harmonic distortion < 20% • Color rendering index > 80
• Steel housing and PMMA lens
• Optional emergency drivers and occupancy sensors are available
• Easy installation in new construction or retrofit
* L70 hours are IES TM-21-11 calculated hours

• cULus approved for damp locations in ambient temperatures from -20°C to 60°C (-4°F to 140°F)
• Complies with FCC Part 15, Class B
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV)

• 5-Year Warranty of all electronics and housing
