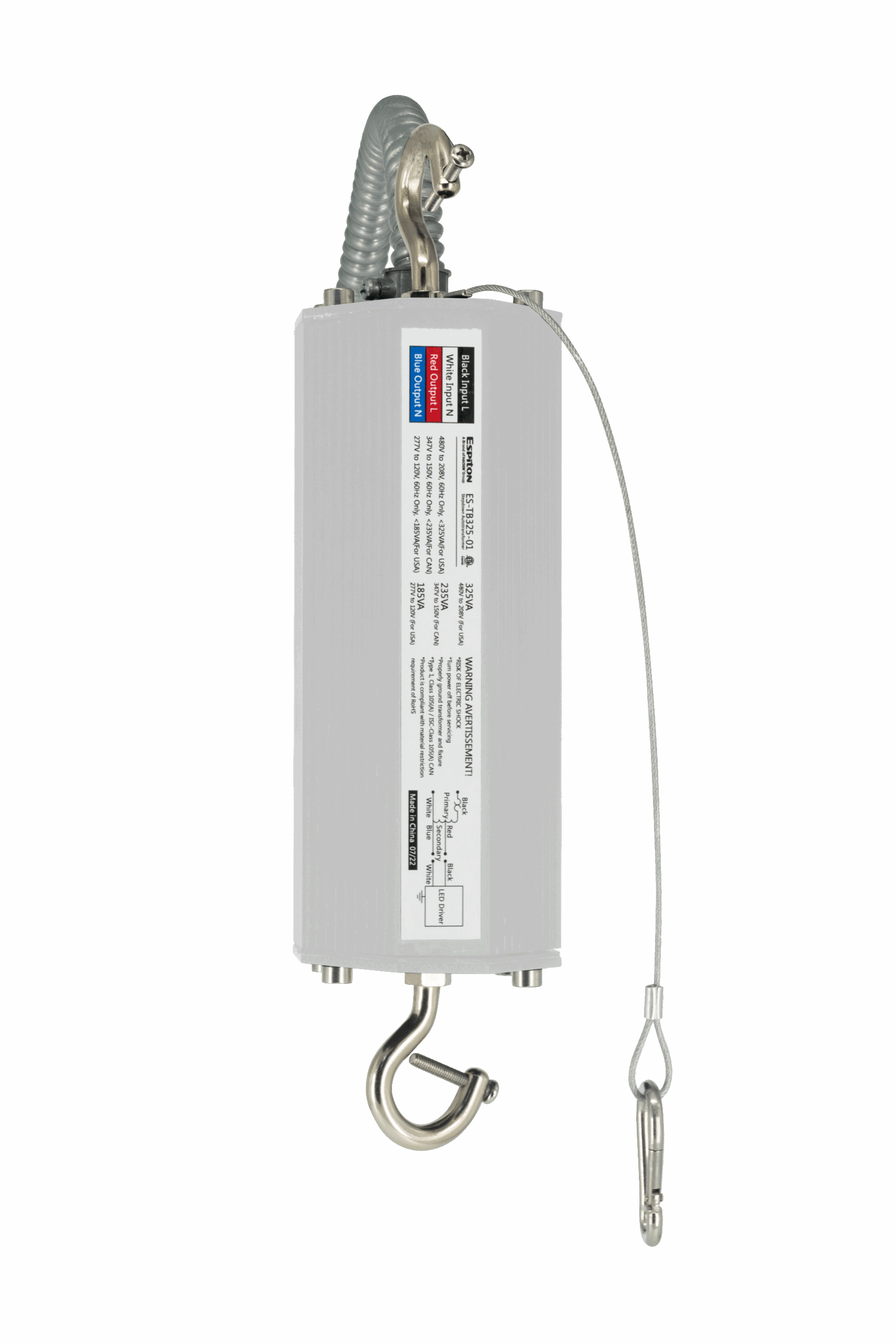

Step Down Transformer-347-480V Input for 20-HBRSR

Step-down transformer designed to work with 120-277V LED drivers to allow input voltages up to 480V.

Housing

• Aluminum alloy (painted white).

Electrical

• Operating temperature: max ambient = 105°C (221°F).
• Operates at input voltage of either 347V or 480V (±10% voltage variations) at 60Hz.
• Step-down voltage:
• 480V to 208V (325VA)
• 347V to 150V (240VA)
• 277V to 120V (185VA)
• Non-isolated autotransformer.
• Thermally protected.
• Surge protection = 0.5kV.

Mounting

• Suspension from eyebolt (included)

Code Compliance

• • cETLus listed for damp locations.
  • Complies with UL 5085-3 for field installation.
  • Complies with FCC Part 15, class B.
  • IP65 rated for ingress protection.
