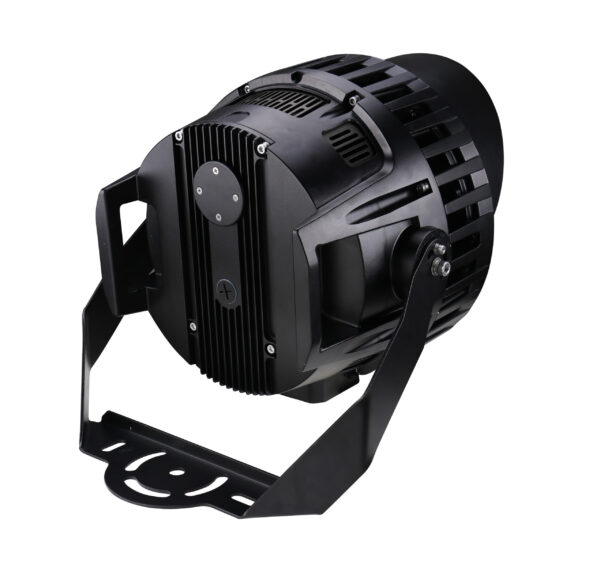

Stadium and Sport Light

High brightness LED stadium light featuring 500W of power and up to 75,000 lumens.  Energy efficient at 150 Lumens/Watt.  Available with yoke mount or slip fitter.

Housing

• Heavy die-cast aluminum alloy housing with black powder-coated finish. Aluminum reflector cup and glass lens.

Electrical

• Available as 100-277V input. -40°C to 45°C.
• 500W input power
• CRI = >72
• 130 lumens per watt efficiency
• 0-10V dimming capability

Optical System

• High brightness LED Brand SMD3030 LED chips
• 40/60/80/120° beam angle options
• 5000K Color temperature at 75,000 lumens
• LEDs provide 55,000 hours of operation with at least 70% of initial lumen output (L70).

Mounting

• Angle-adjustable U bracket by mounting heights 15 to 30ft.

Code Compliance

• cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.

5 Year Warranty
