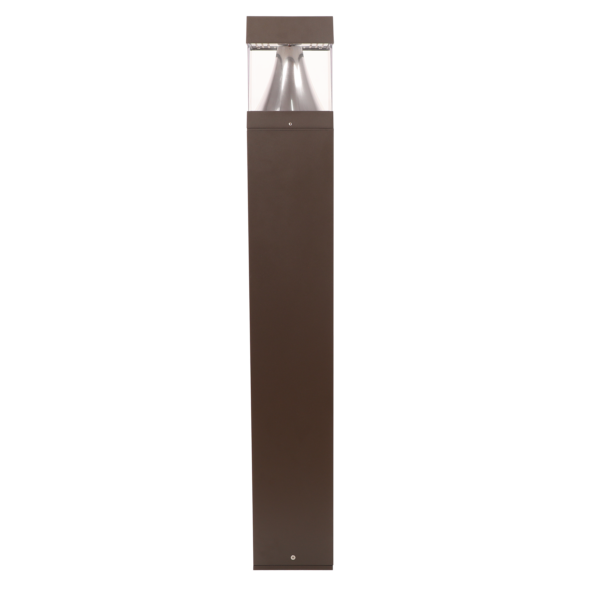

Square LED Bollard – Lumen and Kelvin Field Selectable

FEATURES

• Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures
• Long-life LEDs provide at least 70% of initial lumen output (L70) for ≥ 163,000 hours of operation, and at least 90% of initial lumen output (L90) for ≥ 50,000 hours of operation*
• LED chromaticity based on ≤ 5-step ANSI quadrangles
• LED color maintenance ≤ 0.003 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation
• Provides a range of 1,702 to 3,296 nominal lumens and 125 to 148 nominal lumens per watt (lm/W)
• 0-10vdc dimming drivers, are standard
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index (Ra) > 80
• Cast aluminum housing with dark bronze, powder coat finish
• High-impact, polycarbonate lens
• Easy installation in new construction or retrofit applications
  * L 70 & L90 hours are IES TM-21-11 calculated hours

WARRANTY & LISTINGS

• cULus listed for wet locations in ambient temperatures from -40°C to 55°C (-40°F to 131°F)
• IP65 rated for ingress protection
• Complies with FCC Part 15, class A
• Surge protection = 4kV
• 5-year warranty of all electronics and housing
