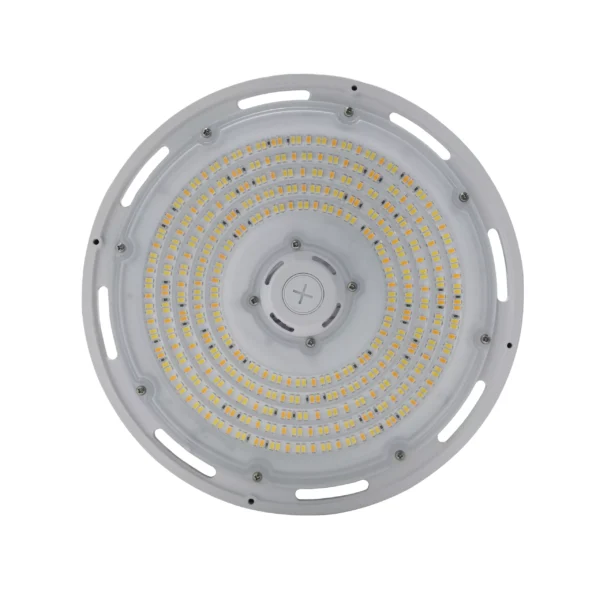

Round High Bay- Sensor-Ready-Lumen & Kelvin Field Selectable-277-480V

Premium Die-cast aluminum Round/UFO high bay . high voltage 277-480V; Lumen selectable- 2 models cover lumen outputs from 16,000 lumens to 35,000 lumens. Color Temperature (CCT) selectable 3000k/4000/5000K; Sensor -ready, order Screw-in PIR or Microwave sensor separately.

HOUSING

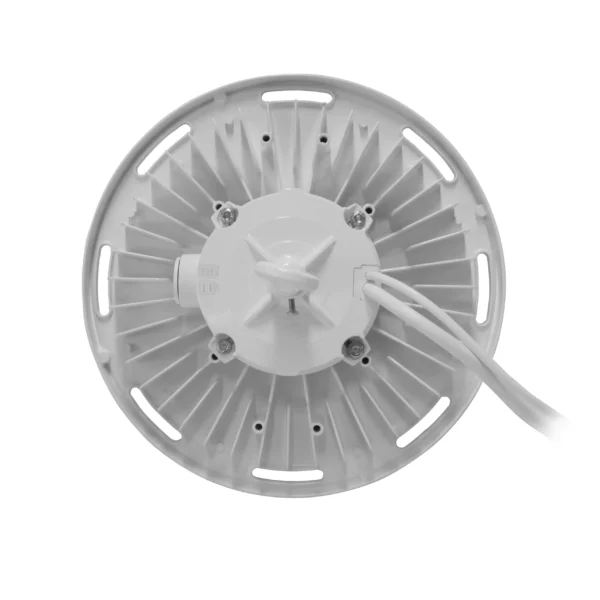

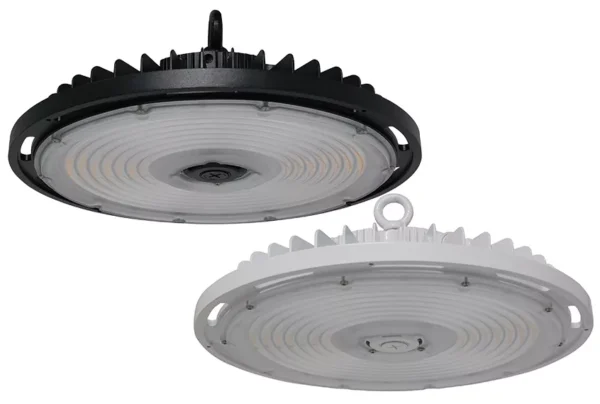

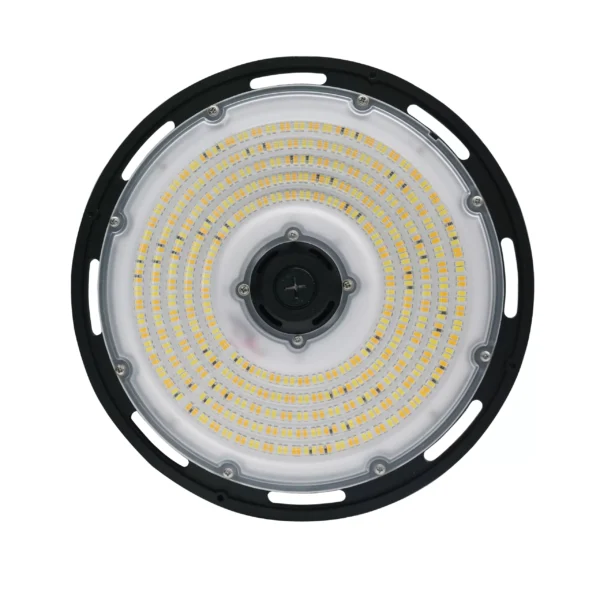

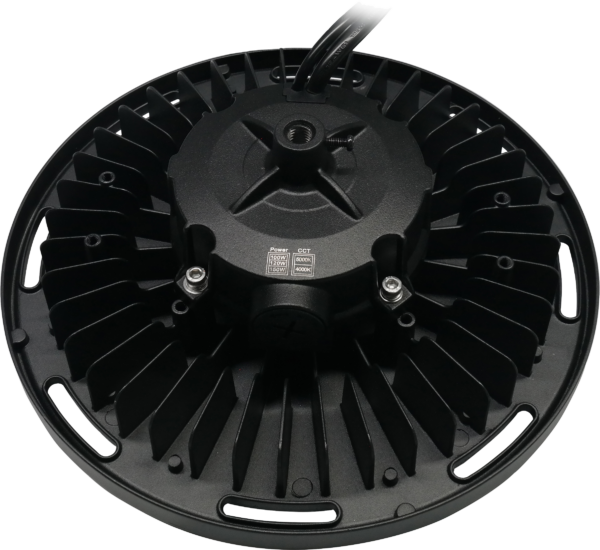

• Die cast aluminum housing and polycarbonate lenses are standard. White or black housing.

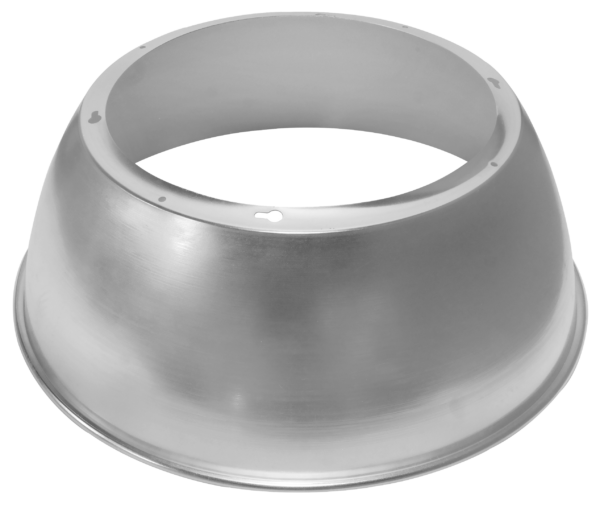

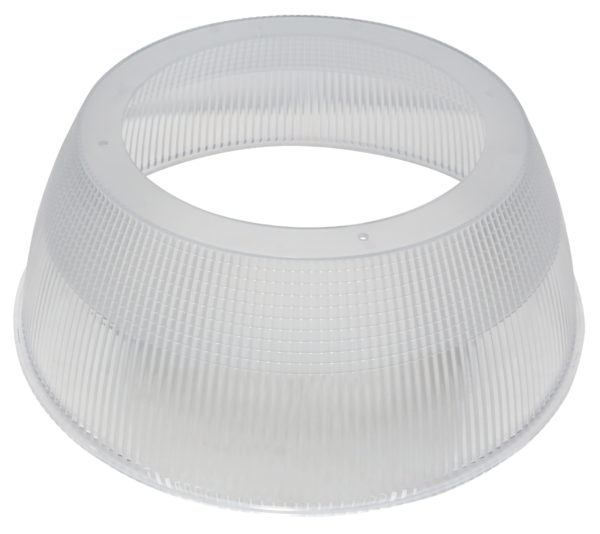

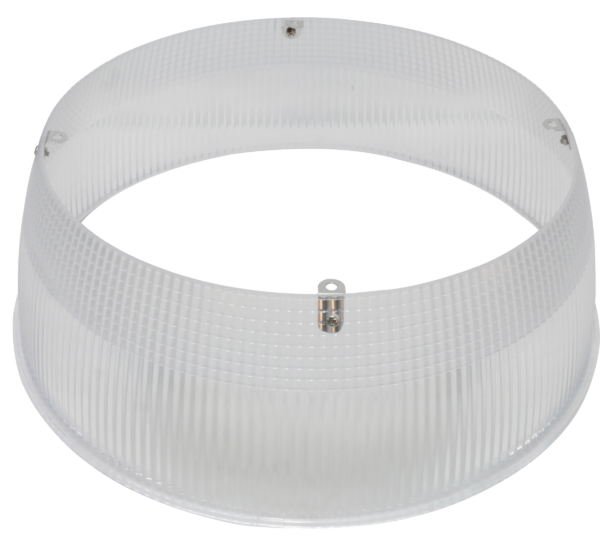

• Aluminum & polycarbonate reflectors available.
  *L70 hours are IES TM-21-11 calculated hours

ELECTRICAL

• Universal 277-480V AC voltage (50-60Hz) is standard.
• 6-foot incoming AC power cords are standard.
• 0-10vdc dimming drivers are standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Watertight, compression-type electrical connectors
• cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).

OPTICAL SYSTEM

• Field selectable 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.
• LED color maintenance < 0.003 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Tri-lumen selectable delivers 16,000 to 35,000 nominal lumens (see lumen table)
• Color rendering index > 80.
• LEDs provide 146,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90).*

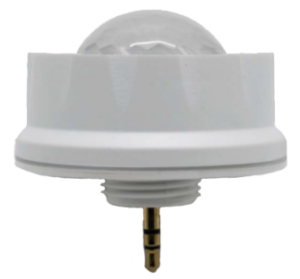

• Screw in sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings.

CODE COMPLIANCE

• Input transient surge protection = 6kV.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• Lenses are rated IK09.

WARRANTY

• 5-year warranty on all electronics and housing
