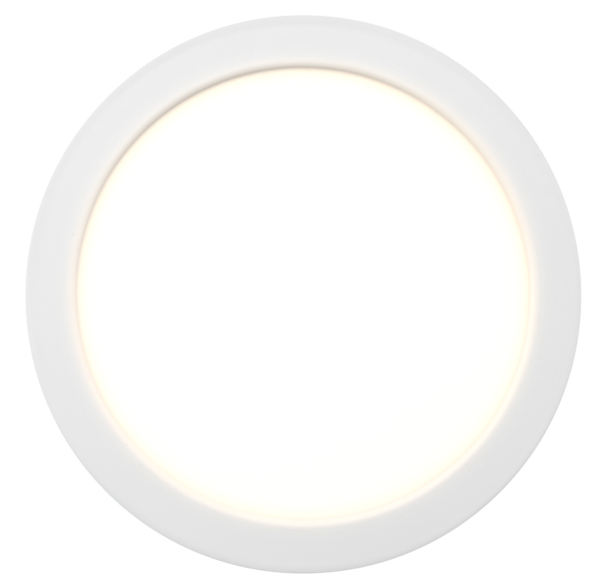

Round Flat Disk Light 5 inch – Kelvin Field Selectable

The Round Flat Disk Light features aluminum housing and a plastic diffuser with a powder coat white finish. It is TRIAC Dimmable and has 5 color temperature selectable options. It offers surface mounting and retrofit installation.

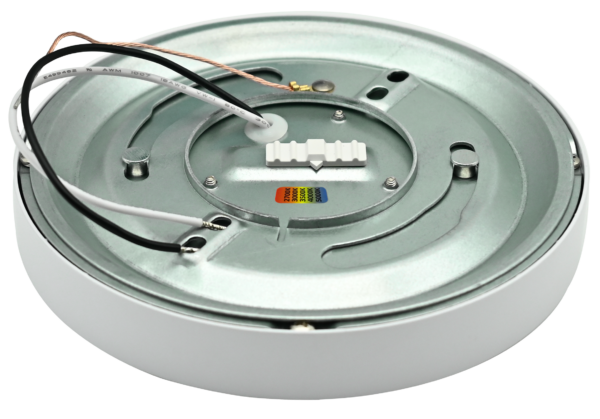

Housing

• Die casting aluminum
• Powder coat white finish standard.
• Black or brushed nickel trim ring selectable

Electrical

• Universal 120V AC voltage (60Hz) is standard.
• Triac dimming.
• Input transient surge protection = 0.5kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%

Optical System

• Plastic diffuser.
• Field selectable 2700k(soft white), 3000k(warm white), 3500k(warm/neutral
white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
• Delivers a range of 800 to 2,200 nominal lumens*.
• Long-life LEDs provide 174,000 hours of operation with at least 70% of initial
lumen output (L70), and 51,000 hours with at least 90% of initial lumen output
(L90)**.
• LED color maintenance < -0.0078 chromaticity shift (Δu’v’) over the initial 6,000
hours of operation.
• Color rendering index > 90

Mounting

• Surface mounting and retrofit installation.
• Covered ceiling mount.

Code Compliance

• cETLus listed for wet locations.
• Energy Star certificated, excludes 11-DL11-20L-5CCT and 11-DL13-22L-
5CCT.
• Complies with FCC part 15, class B.
• Complies with Title 24.

Warranty

5-year warranty on all electronics and housing.
