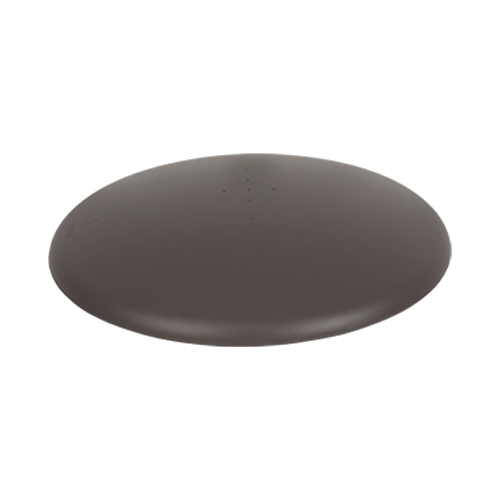

The 08-RALSR Sensor-Ready Round Area Light offers selectable output from 10,000 to 20,000 lumens. Selectable CCT. Available in T3 or T5 beam types. Select from 3 different mounting options for any application. Multiple control options, including photocell and sensors.
HOUSING
Bronze powder-coated, die cast aluminum housing.
ELECTRICAL
• Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F) .
• Universal 120-277V AC voltage (50-60Hz).
• 0-10V DC dimming drivers are standard.
• Input transient surge protection = 6kV.
• Power Factor > 0.9.
• Total Harmonic Distortion < 20%.
• Universal 120-277V AC voltage (50-60Hz).
• 0-10V DC dimming drivers are standard.
• Input transient surge protection = 6kV.
• Power Factor > 0.9.
• Total Harmonic Distortion < 20%.
OPTICAL SYSTEM
• Efficacy Up to 190 Lumens per Watt (LPW) @CCT=4000K.
• Field selectable 3000K, 4000K, and 5000K color temperatures.
• 08-RALSR-20161310L-3CCT-T3 selectable output delivers from 10,866 to 22,122 nominal lumens, with 4 settings.
• 08-RALSR-20161310L-3CCT-T5 selectable output delivers from 8,883 to 19,996 nominal lumens, with 4 settings.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen
output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• Available IES roadway distributions: Type III or Type V.
• Sensor-ready receptacle comes standard. Screw-in sensor and remote control sold separately.
• LED color maintenance < 0.0012 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Polycarbonate lens.
• Color Rendering Index > 70.
• Field selectable 3000K, 4000K, and 5000K color temperatures.
• 08-RALSR-20161310L-3CCT-T3 selectable output delivers from 10,866 to 22,122 nominal lumens, with 4 settings.
• 08-RALSR-20161310L-3CCT-T5 selectable output delivers from 8,883 to 19,996 nominal lumens, with 4 settings.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen
output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• Available IES roadway distributions: Type III or Type V.
• Sensor-ready receptacle comes standard. Screw-in sensor and remote control sold separately.
• LED color maintenance < 0.0012 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Polycarbonate lens.
• Color Rendering Index > 70.
MOUNTING
• Optional Y-Arm Mount Kit.
• Optional Single Arm Mounting Kit.
• Optional Wall-Arm Mounting Kit.
• Optional Single Arm Mounting Kit.
• Optional Wall-Arm Mounting Kit.
NOTE: Mounting hardware sold separately. One must be ordered.
CODE COMPLIANCE
• cULus listed for wet locations.
• Complies with FCC Part 15, Class A.
• IP65 rated for ingress protection.
• IK08 rated for impact protection.
WARRANTY
• 5-year warranty on all electronics and housing.
