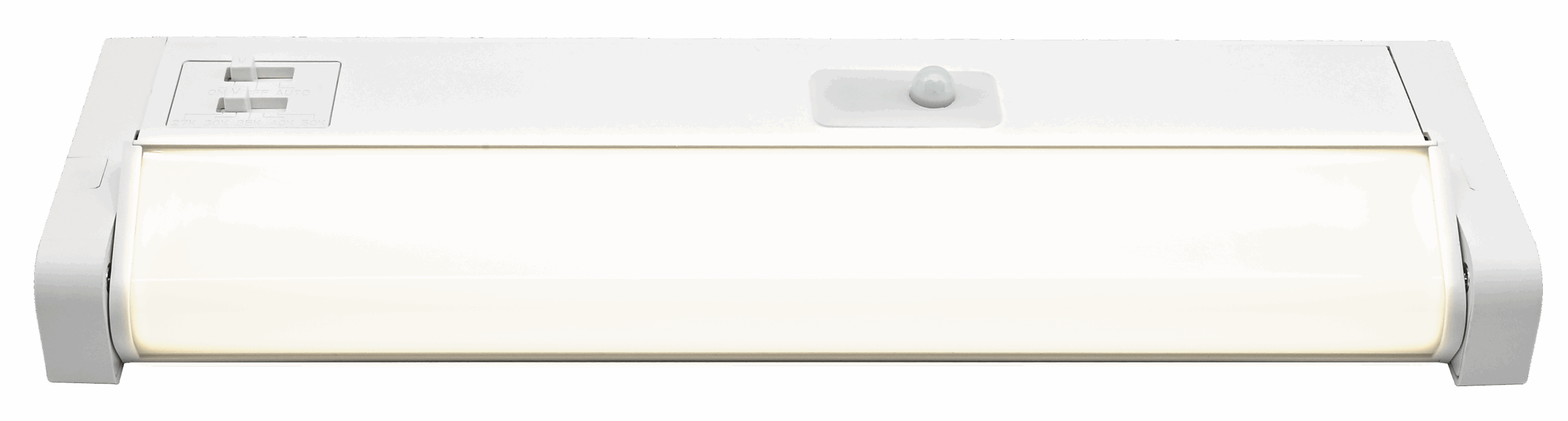

Premium Undercabinet-5CCT Selectable with Occ Sensor

HOUSING

• Aluminum, White housing

ELECTRICAL

• Operating temperature (ambient): -20°C to 45°C (-4°F to 113°F) .
• Universal 120V AC voltage (60Hz) is standard.
• 05-UC9-3L-5CCT = 4W
• 05-UC12-8L-5CCT = 8W
• 05-UC18-12L-5CCT = 12W
• 05-UC24-16L-5CCT = 16W
• 05-UC36-23L-5CCT = 24W

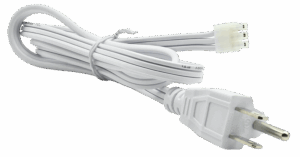

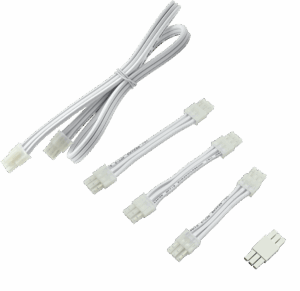

• Two or more lights can be linked.(see Optional Accessories below))
• Maximum Load: Maximum limit of 2A per linking circuit.
• Triac dimming.
• Input transient surge protection = 1kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate diffuser.
• Rotatable light bar swivel 65°.

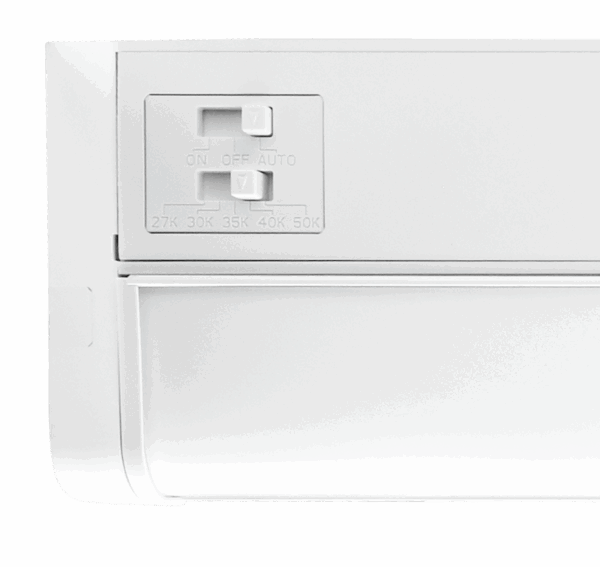

• Field selectable 2700k, 3000k, 3500k, 4000k and 5000k color temperatures.
• Delivers a range of 800 nominal lumens*.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• LED color maintenance < 0.0059 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Integrated PIR sensor is standard.
• Color rendering index > 90.

MOUNTING

• Surface mounted

CODE COMPLIANCE

• cETLus listed for damp locations.
• Complies with FCC part 15, class B.
• Complies with Title 24.

WARRANTY

• 5 year warranty on all electronics and housing.
