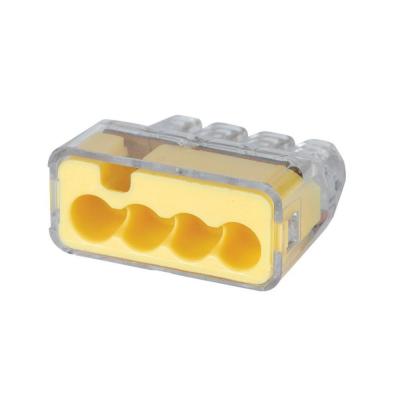

PC25401-YELLOW PUSH IN CONNECTOR 4 HOLE- 500 PCS

 YELLOW PUSH IN CONNECTOR 4 HOLE- 500 PCS.

Key Specifications/Special Features:
 Characteristics:

• Housing material: thermoplastic, UL 94V-2 flame-retardant
• Wire range: #22 to #12 AWG solid wires
• Temperature: 110 degrees Celsius
• Wire stripping length: 11mm (0.43 inch)
• Voltage: 600V maximum for building wiring; 1000V maximum in lighting fixtures and signs

Advantages:

• 500 pcs per bag / 12 bags per case
• Fast, easy, no-twist necessary, reduces installation time and twist fatigue
• Color-coded for easy identification of different sizes
• Compact size; takes up less space
• No bare wires to cause shorts
• Each wire is individually clamped; provides more secure gripping on conductor
• Test point in back; provides easy testing with voltage tester
• Built-in wire stripping length gauge

Applications:

• OEM lighting manufacturing
• Prefabricated wiring systems
• Circuit and fixture wiring systems
