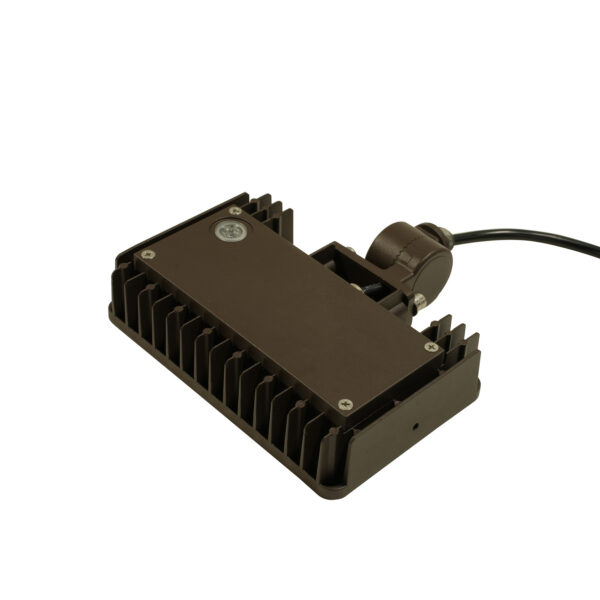

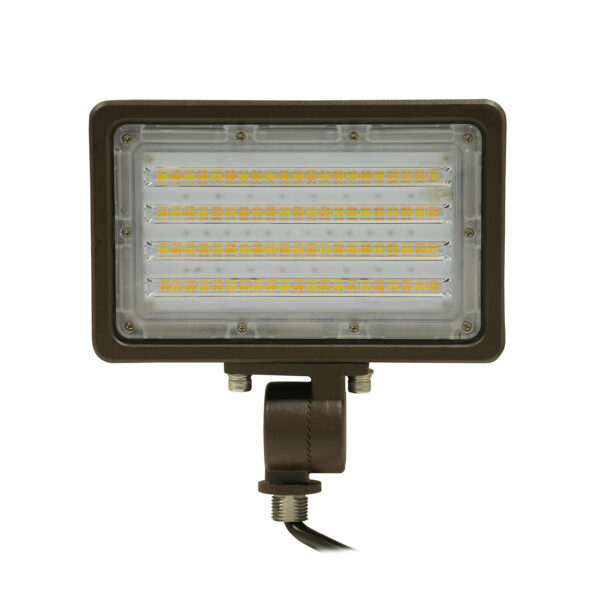

This durable LED area light is built with a premium dark bronze, die-cast aluminum housing and offers flexible mounting options, including standard knuckle with optional yoke mount. Field-selectable color temperatures (3500K/4000K/5000K) and tri-lumen outputs provide up to 7,589 lumens for adaptable performance. Standard features include 0–10V dimming, an integrated on/off photocell, and 6kV surge protection. Long-life LEDs deliver up to 167,000 hours (L70). cULus listed for wet locations, IP65 and IK08 rated, and backed by a 5-year warranty.
HOUSING
• Premium powder-coat, die cast aluminum, dark bronze housing.
ELECTRICAL
• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Incoming AC power cord = 3′. Incoming dimming cord = 3′
• Watertight, compression-type electrical connectors.
• Incoming AC power cord = 3′. Incoming dimming cord = 3′
• Watertight, compression-type electrical connectors.
• Input transient surge protection = 6kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.
OPTICAL SYSTEM
• Polycarbonate lens.
• Field selectable 3500K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
• 08-MPAL-863L-3CCT Tri-lumen selectable provide a range of 3,406 to 7,589 nominal lumens.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• LED color maintenance < -0.0012 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 80.
• Field selectable 3500K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
• 08-MPAL-863L-3CCT Tri-lumen selectable provide a range of 3,406 to 7,589 nominal lumens.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• LED color maintenance < -0.0012 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 80.
MOUNTING
• Knuckle mounting is standard.
• Optional Yoke Mounting kit.
• Optional Yoke Mounting kit.
• Optional Arm Mounting kit.*
• Optional Slip-fitter Mounting kit.*
• Optional Slip-fitter Mounting kit.*
* Only for 08-MPAL-16129L-3CCT, need to be used match with 08-ZZ-MPAL-MT-ADPT.
CODE COMPLIANCE
• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• IK08 rated for impact protection.
WARRANTY
• 5-year warranty on all electronics and housing.
