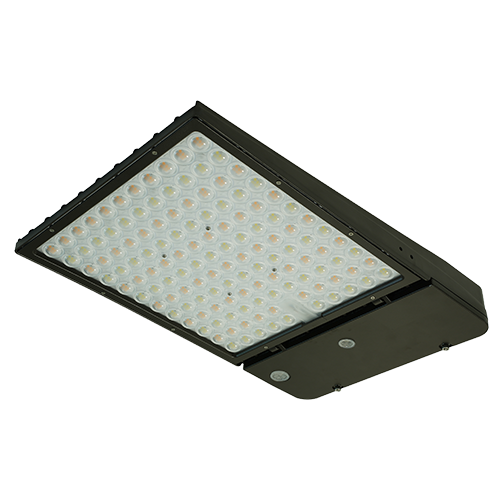

The Distribution Selectable Multi-Purpose Area Light features a durable, die-cast aluminum housing with dark bronze powder-coated finish. It features field-selectable lumen outputs (28,342 – 42,653 lm), CCT (3000K/4000K/5000K), two input voltage options (120-277V/277-480V), and distribution types (III/IV/V). Mounting options include adjustable arm & slip fitter combo, arm, slip-fitter, yoke, and trunnion. Sensor-ready with optional NEMA photocell receptacle.
HOUSING

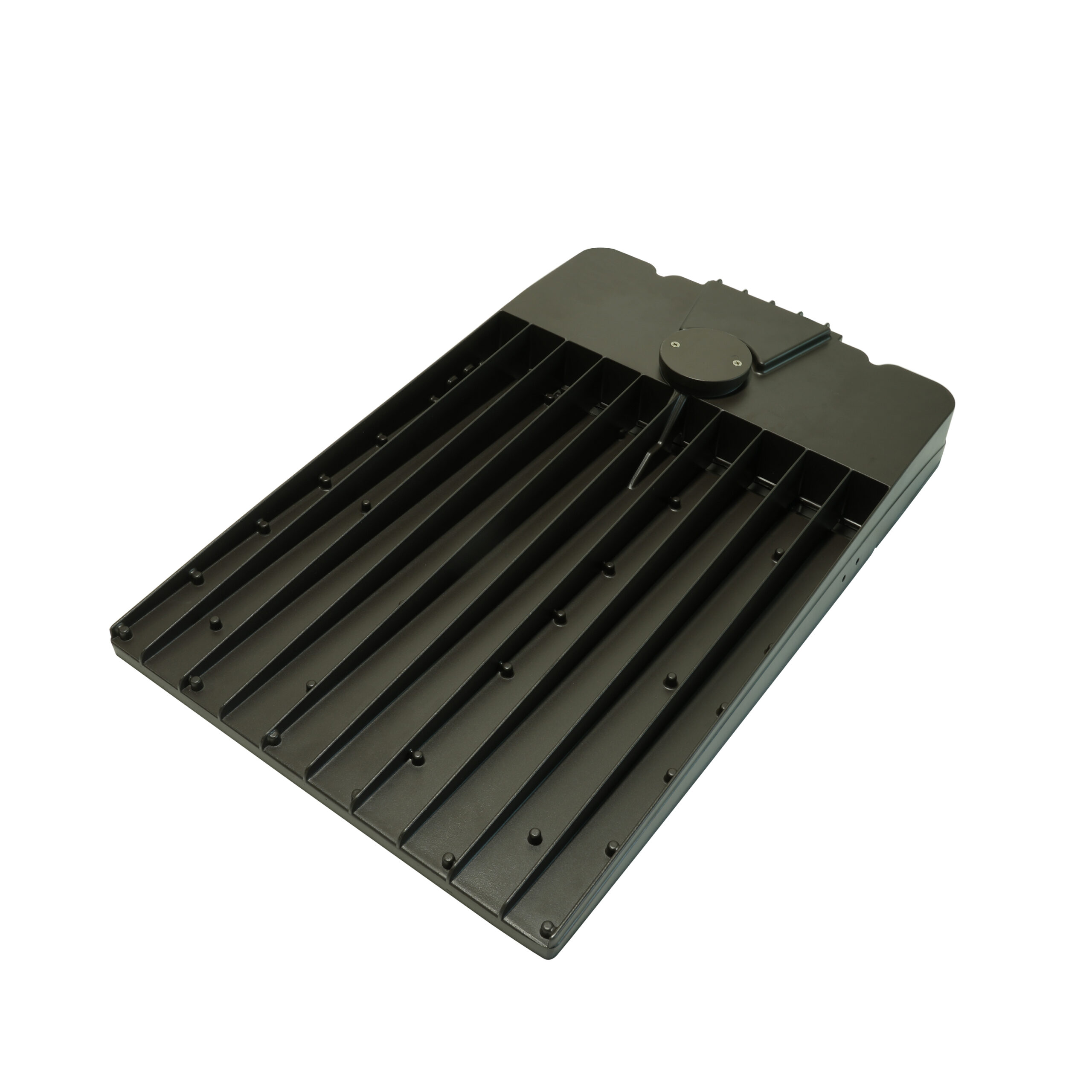

• Dark bronze powder-coat, die cast aluminum housing.
ELECTRICAL
• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F).
• Universal 120-277V or 277-480V AC voltage (50-60Hz) with 6-foot incoming power cord.
• 0-10VDC dimming drivers are standard.
• Input transient surge protection = 6kV.
• Watertight, compression-type electrical connectors.
• Power Factor > 0.90.
• Total Harmonic Distortion < 20%.
• Universal 120-277V or 277-480V AC voltage (50-60Hz) with 6-foot incoming power cord.
• 0-10VDC dimming drivers are standard.
• Input transient surge protection = 6kV.
• Watertight, compression-type electrical connectors.
• Power Factor > 0.90.
• Total Harmonic Distortion < 20%.
OPTICAL SYSTEM
• Polycarbonate lens.
• Field selectable 3000K, 4000K, and 5000K color temperatures.
• 08-MPALDSR-403530L-3CCT selectable output delivers from 28,342 to 42,653 nominal lumens, with 3 settings.
• 08-MPALDSR-403530L-3CCT-UNC selectable output delivers from 29,137 to 43,337 nominal lumens, with 3 settings.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• Distribution selectable with switch. Standard optic provides Type III / Type IV / Type V distribution.
• Sensor-ready receptacle comes standard. Screw-in sensor and remote control sold separately.

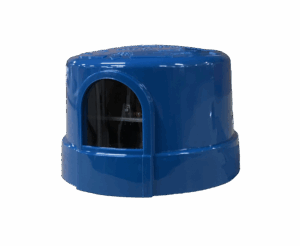

• Available factory installed NEMA photocell receptacle for 3-pin NEMA devices.
• LED color maintenance <-0.00495 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color Rendering Index > 80.
• Field selectable 3000K, 4000K, and 5000K color temperatures.
• 08-MPALDSR-403530L-3CCT selectable output delivers from 28,342 to 42,653 nominal lumens, with 3 settings.
• 08-MPALDSR-403530L-3CCT-UNC selectable output delivers from 29,137 to 43,337 nominal lumens, with 3 settings.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• Distribution selectable with switch. Standard optic provides Type III / Type IV / Type V distribution.
• Sensor-ready receptacle comes standard. Screw-in sensor and remote control sold separately.
• Available factory installed NEMA photocell receptacle for 3-pin NEMA devices.
• LED color maintenance <-0.00495 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color Rendering Index > 80.
MOUNTING
• Optional Adjustable Arm Mounting Kit (Arm and Slip-fitter combination).

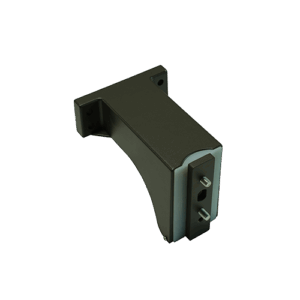

• Optional Arm Mounting kit.

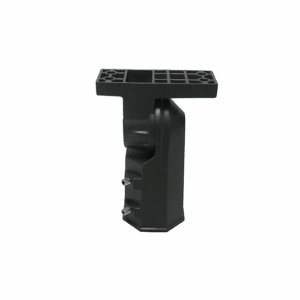

• Optional Slip-fitter Mounting kit.

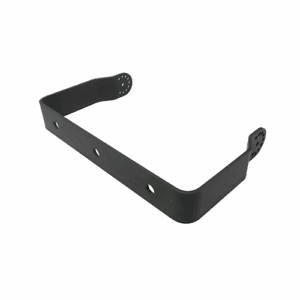

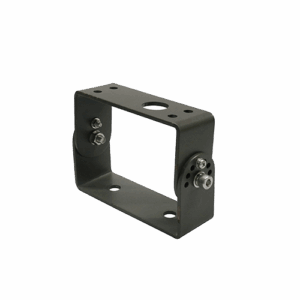

• Optional Yoke Mounting kit.
• Optional Trunnion Mounting kit.
NOTE: Mounting hardware sold separately. One must be ordered. Pole tenons and tenon adapters available. See all mounting accessories on specification sheet.
CODE COMPLIANCE
• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• IK08 rated for impact protection.
WARRANTY
• 5-year warranty on all electronics and housing.
