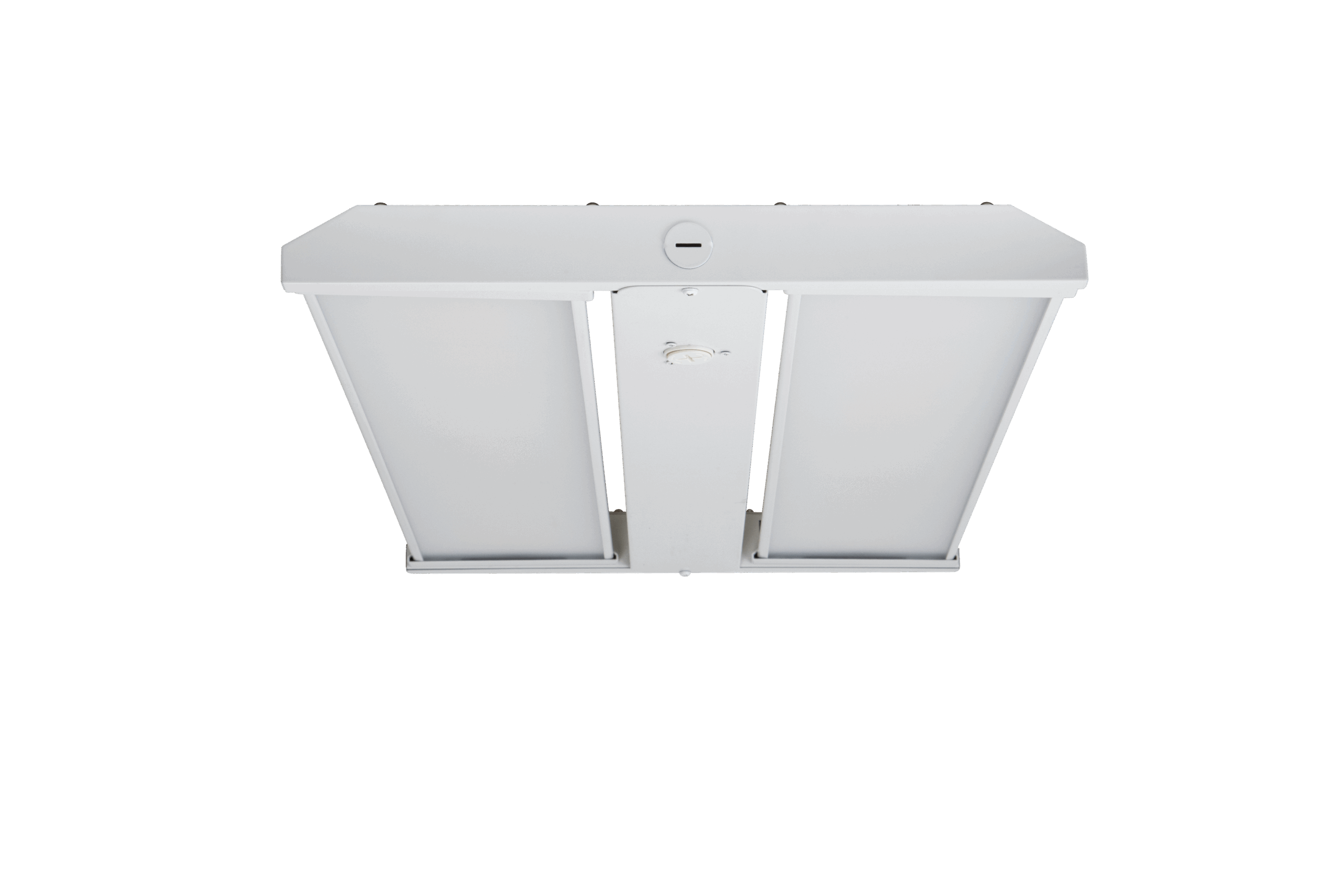

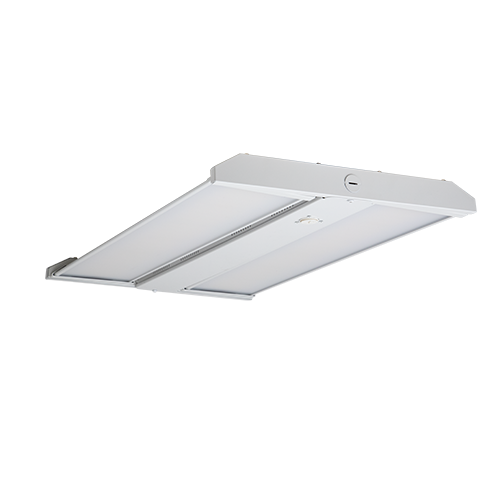

Linear Adjustable High Bay – 24,797 to 43,947 Lumens – Sensor-Ready – Lumen and Kelvin Selectable

This adjustable high bay features a durable white steel housing with selectable outputs up to 45,000 lumens and field-selectable color temperatures (3000K/4000K/5000K). Features 0–10V dimming, rotatable optics, sensor-ready design, surge protection, and long-life LEDs rated up to 167,000 hours (L70). Chain-mount kit included.

Housing

• Premium powder-coat, steel, white housing.

Electrical

• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• Optics rotate up to 135°.
• Screw in sensor ready. (Sensor and remote control sold separately).
• 0-10VDC dimming drivers are standard.
• Input transient surge protection = 6kV.
• Power factor > 90.
• Total harmonic distortion < 20%.

Optical System

• Polycarbonate lens.
• Field Selectable 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperature.
• Five selectable output levels provide a range of 24,797 to 43,947 nominal lumens.
  (see lumen tables on page 3).
• Screw in sensor ready. (Sensor & remote sold separately. See default settings on
  page 2).
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial
  lumen output (L70), and 51,000 hours with at least 90% of initial lumen output
  (L90).
• LED color maintenance < -0.00253 chromaticity shift (Δu’v’) over the initial 6,000
  hours of operation.
• Color rendering index > 80.

Mounting

• Chain-mount kit (includes v-hooks , 1-meter long chain) are standard.

Code Compliance

• cULus listed for damp locations.
• Complies with FCC part 15, class A.

Warranty

• 5-year warranty on all electronics and housing
