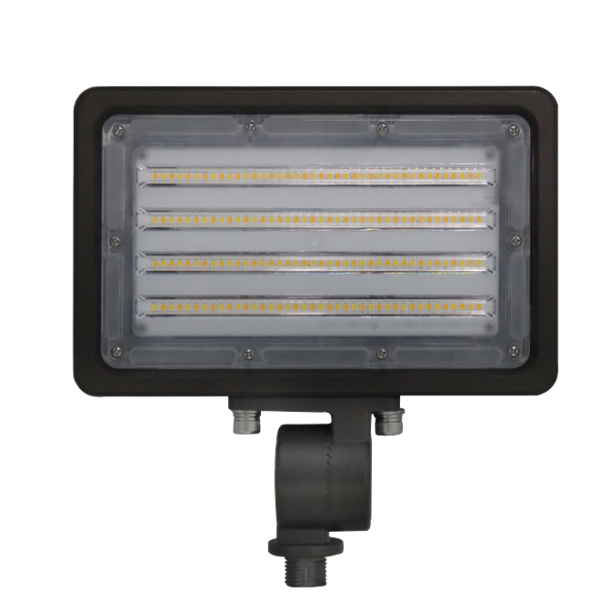

LED Multi-Purpose Area Luminaires Kelvin Field Selectable

Model 08-MPAL-KFS

product description

• Field selectable 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures

• Long-life LEDs provide up to 149,000 hours of operation with at least 70% of initial lumen output (L70)*

• Available models provide from 2,000 to 7,200 lumens, and from 125 to 156 lumens per watt (LPW)

• Standard optic provides an IES roadway type V distribution, or a 7V (vertical) x 7H (horizontal) NEMA floodlight distribution

• Universal 120-277 AC voltage (50-60Hz) is standard

• 0-10vdc dimming drivers are standard

• Power factor > 90

• Total harmonic distortion < 20%

• Color rendering index > 80
• Die cast aluminum housing with durable, dark bronze powdercoat finish
• Polycarbonate lens

• Wireway enclosure is sealed with a water-tight, siliconerubber gasket
• Easy installation in new construction or retrofit applications

* L70 hours are IES TM-21-11 calculated hours

• cULus listed for wet locations in ambient temperatures from-40°C to 50°C (-40°F to 122°F)
• IP65 rated for ingress protection
• Lens is IK 10 rated for protection from external impacts
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 7 per ASTM D1654-05 scratch test
• Complies with FCC Part 15, class A
• Complies with EN61000-4-5, surge immunity protection (4kV)
• 5-year warranty of all electronics and housing


• Standard aluminum die-cast knuckle-mount for junction box installation
• Yoke-mount option provides secure attachment to flat surfaces,4L & 7L only, sold separately
• Line voltage ground stake allows for easy installation for landscape illumination, sold separately
