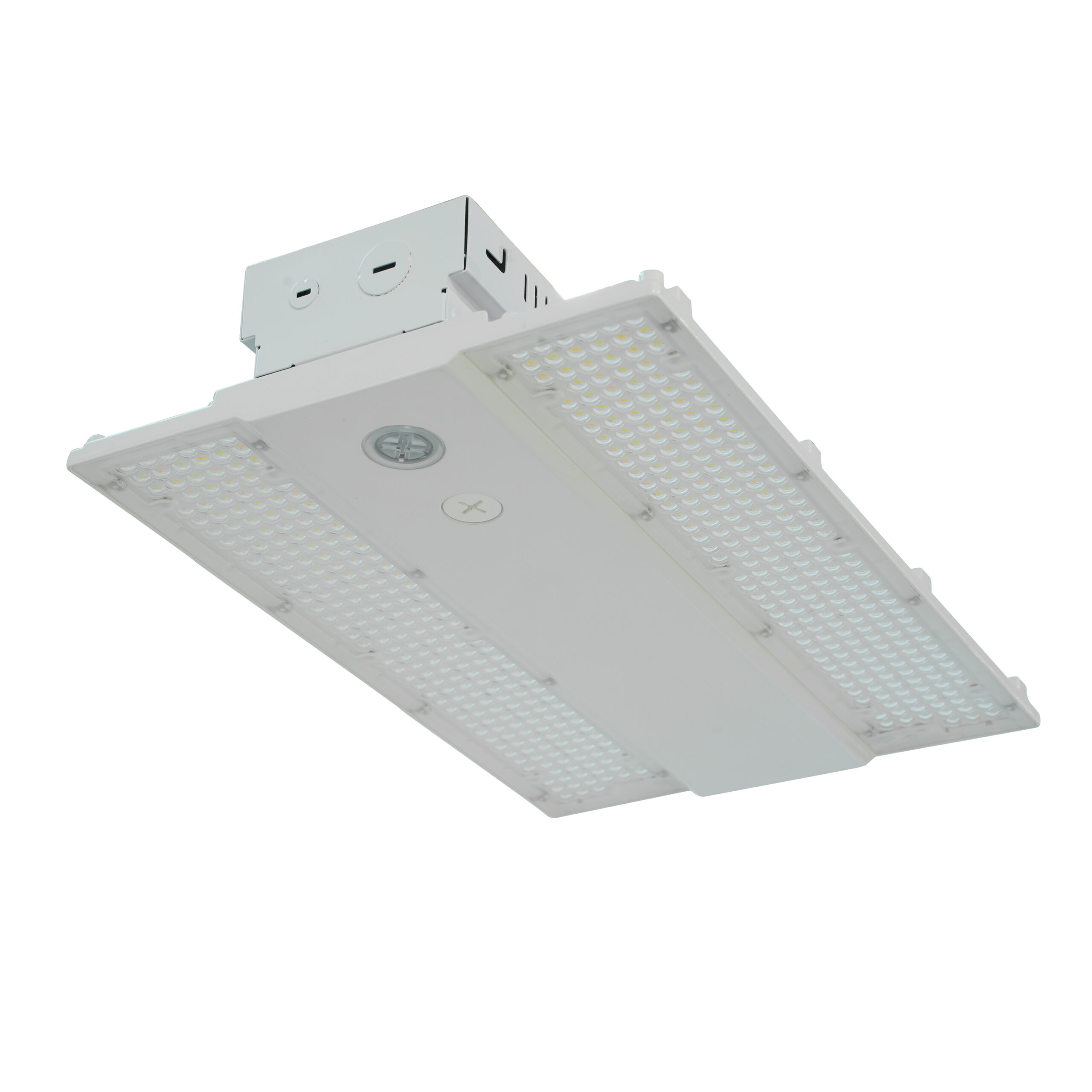

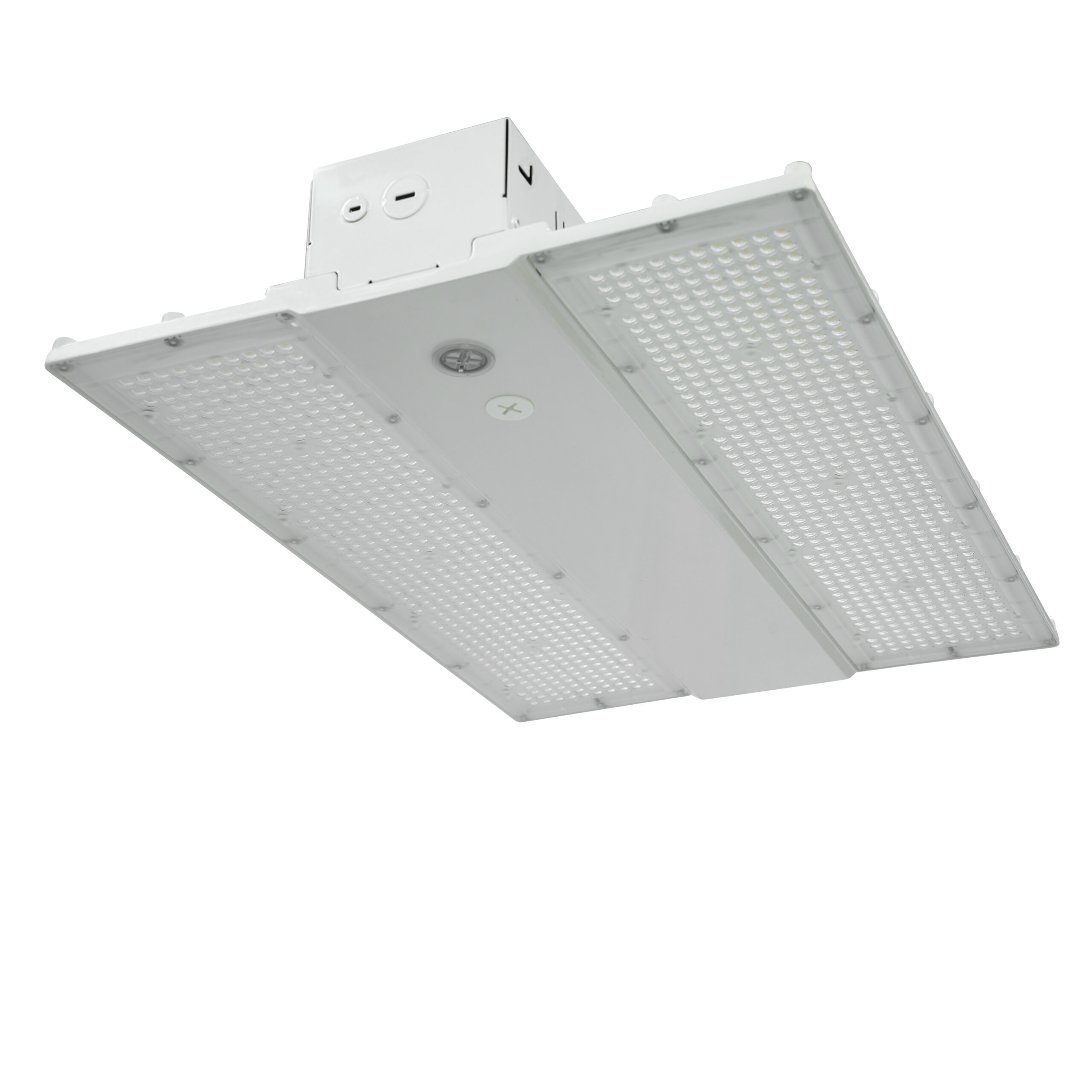

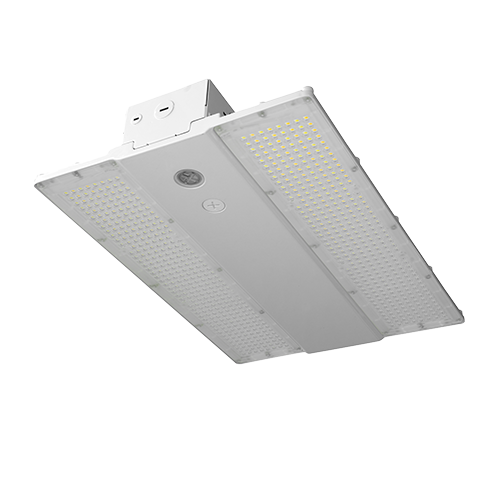

LED Linear High Bay High Efficiency & Sensor Ready

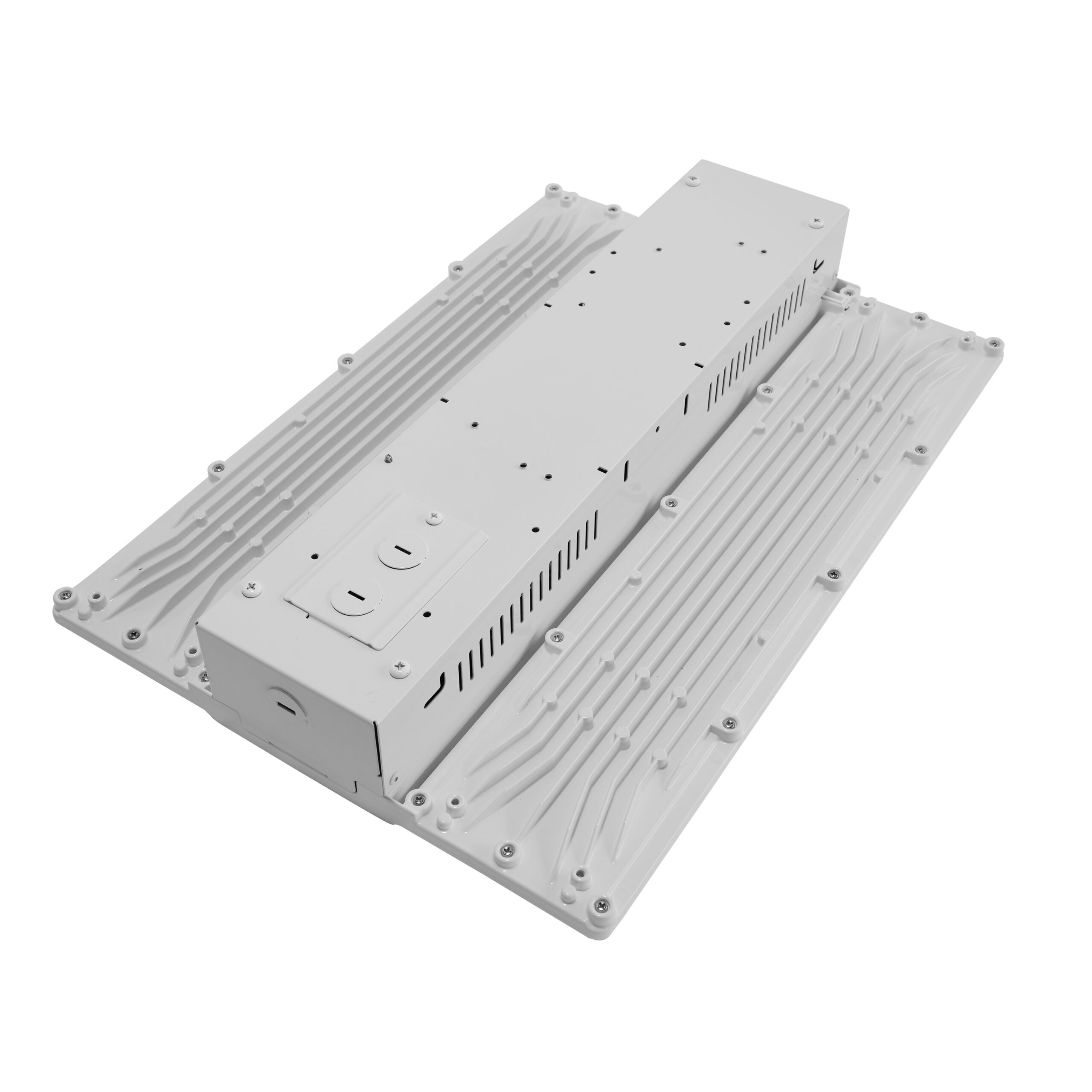

HOUSING

• White powder-coated die cast aluminum housing.

ELECTRICAL

• High ambient operating temperature up to 60°C.
• Universal 120-277V AC voltage (50-60Hz).
• Internal 277-400VAC driver option available.
• 0-10VDC dimming driver.
• Emergency driver options available.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Input transient surge protection = 6kV.

OPTICAL SYSTEM

• Efficacy up to 200 Lumens per Watt (LPW) @CCT=4000K.
• Field selectable 3500K, 4000K, and 5000K color temperatures.
• 20-HBLHESR-302420L-3CCT Selectable output delivers from 19,431 to 29,056 nominal lumens, with 3 settings.
• 20-HBLHESR-453730L-3CCT Selectable output delivers from 29,167 to 45,067 nominal lumens, with 3 settings.
• 20-HBLHESR-575043L-3CCT Selectable output delivers from 42,286 to 56,719 nominal lumens, with 3 settings.
• Long-life LEDs provide 204,000 hours of operation with at least 70% of initial lumen output (L70), and 61,000 hours with at least 90% of initial lumen output (L90).
• Sensor-ready receptacle comes standard. Screw-in sensor and remote control sold separately.
• LED color maintenance < 0.0008 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color Rendering Index > 70.
• Polycarbonate lens.

MOUNTING

• Chain-mount kit (includes v-hooks, 1-meter-long chain) are standard.
• Optional surface mounting kit provides attachment to solid surfaces. (Surface mount kit and Pendant mount kit are not compatible with the UNC version, nor the on-board,
  factory installed EM driver options.)
• Optional pendant mounting kit provides attachment to 1/2” rigid conduit.

CODE COMPLIANCE

• cULus listed for damp locations.
• Complies with FCC Part 15, Class A.

WARRANTY

• 5-year warranty on all electronics and housing
