LED Half Moon Full Cutoff Wall Pack – 8,165 to 13,690 Lumens – Lumen & Kelvin Field Selectable

Model: 07-WPHM-13108L-3CCT
Text has been copied to your clipboard
Ask for Price

Request product pricing

Call for Pricing now: 877.664.5483
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.
How to request a quote?
1. Click on “Add to Quote”
2. Add as many products as you want to your quote.
3. Go to your Cart at the top right corner of the screen.
4 Sign In or create an account.
5. Submit your quote.
6. A lighting rep will provide pricing within 24 hours.

product description

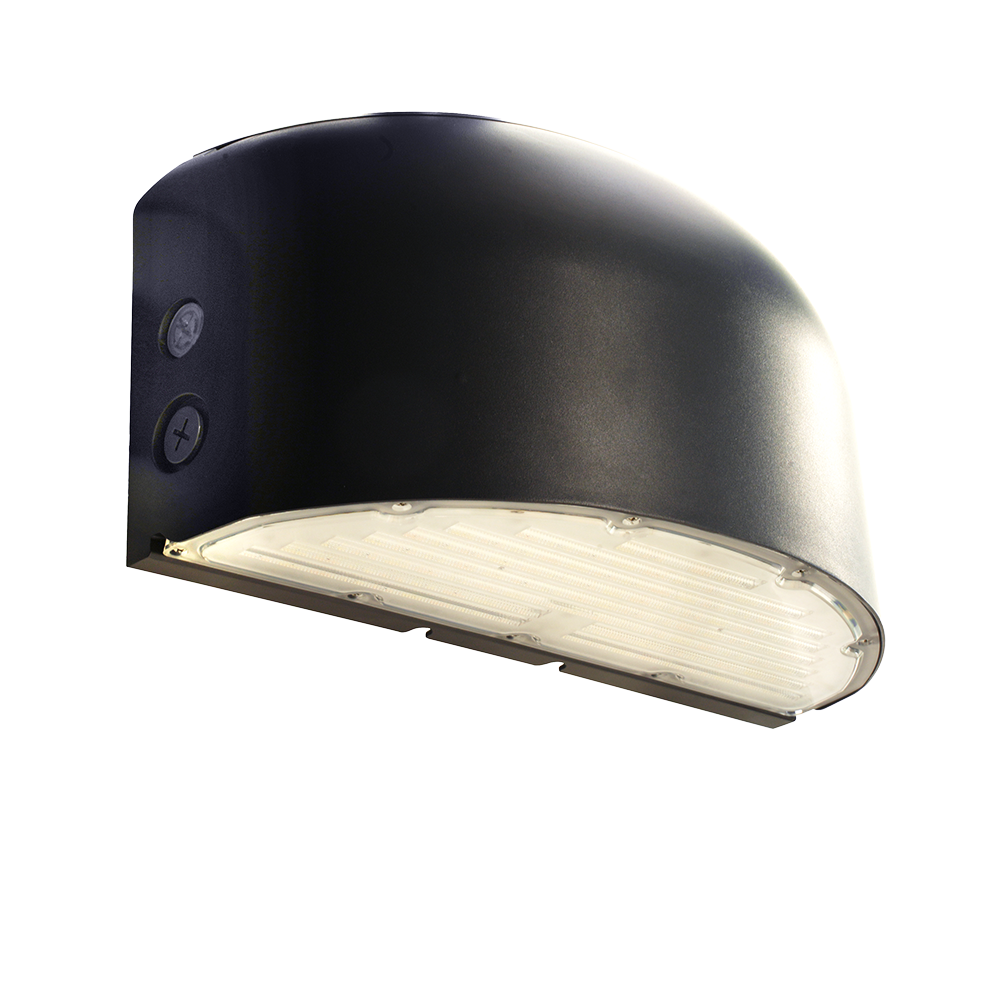

This half-moon full cutoff wall pack features a durable bronze, die-cast aluminum housing with premium powder coat finish and polycarbonate lens. It is designed for wall mounting and has an integrated on/off photocell. It also features field-selectable CCT (3000K/4000K/5000K).

HOUSING

  • Premium powder-coat, die cast aluminum, Bronze housing.

ELECTRICAL

  • Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10V DC dimming drivers are standard.
  • Integrated photocell is standard. Photocell can be enabled or disabled by switch.
  • Input transient surge protection = 6kV for 07-WPHM-13108L-3CCT.
  • Power factor > 0.90.
  • Total Harmonic distortion < 20%.

OPTICAL SYSTEM

  • Polycarbonate lens.
  • Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white)
    color temperatures.
  • 07-WPHM-13108L-3CCT provides a range of 8,165 to 13,690 nominal lumens.
  • Long-life LEDs provide 160,000 hours of operation with at least 70% of initial lumen
    output (L70), and 48,000 hours with at least 90% of initial lumen output (L90).
  • LED chromaticity based on < 6-step ANSI quadrangles.
  • LED color maintenance < 0.00310chromaticity shift (Δu’v’) over the initial 6,000
    hours of operation.
  • Color Rendering Index > 80.

MOUNTING

  • Wall mounting kit.

CODE COMPLIANCE

  • cULus listed for wet locations.
  • Complies with FCC Part 15, class A.
  • IP65 rated for ingress protection.
  • IK08 rated for impact protection.

WARRANTY

  • 5-year warranty of all electronics and housing.
