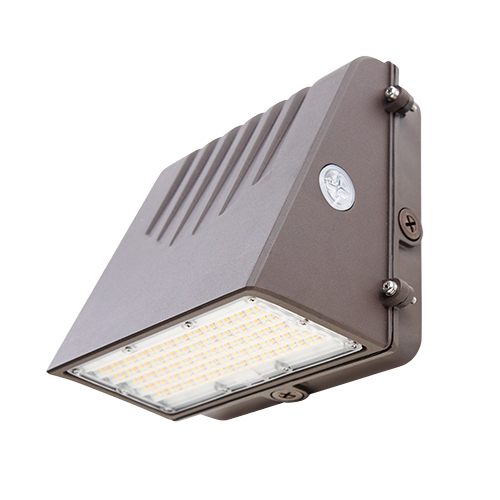

LED Full Cutoff Wall Pack – Sensor Ready, Lumen & Kelvin Field Selectable

This high-performance LED wall pack features a bronze, die-cast aluminum housing and a durable polycarbonate lens. It offers field-selectable color temperatures (3000K, 4000K, 5000K) and delivers up to 17,186 lumens depending on model. It is designed for demanding environments and includes a switchable integrated photocell. The fixture is sensor-ready (sensor and remote sold separately).

HOUSING

• Premium powder-coat, die cast aluminum, Bronze housing.

ELECTRICAL

•  Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Available emergency battery back-up (factory installed)
• Input transient surge protection = 6kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate lens.
• Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white)
  color temperatures.
• 06-WPFCSR-9865L-3CCT provides a range of 4,815 to 9,010 nominal lumens.
• 06-WPFCSR-17151310L-3CCT provides a range of 9,337 to 17,186 nominal
  lumens.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen
  output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).

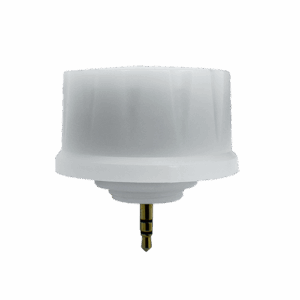

• Screw in sensor ready. Occupancy sensor and remote control sold separately.
  Remote control required to change factory sensor settings.
• LED chromaticity based on < 6-step ANSI quadrangles.
• LED color maintenance < -0.0034 chromaticity shift (Δu’v’) over the initial 6,000
  hours of operation.
• Color Rendering Index > 80.

MOUNTING

• Wall mounting kit.

CODE COMPLIANCE

• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• IK08 rated for impact protection.

WARRANTY

• 5-year warranty of all electronics and housing.
