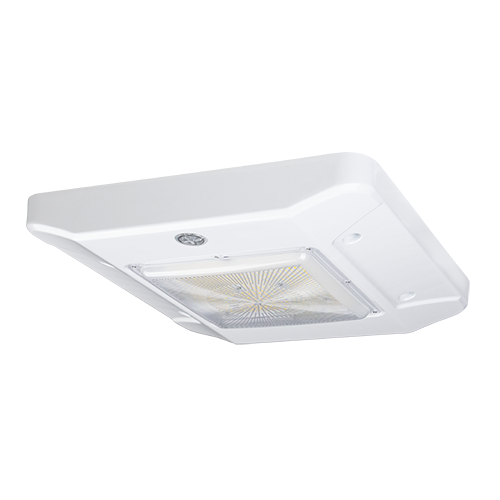

LED Canopy High Lumen – Lumen Selectable

HOUSING

• Premium powder-coat, die cast aluminum, White housing.

ELECTRICAL

• Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Input transient surge protection = 6kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate lens.
• 5000K (cool white) color temperatures.
• Provides a range of 19,000 to 27,000 nominal lumens.
• Long-life LEDs provide 173,000 hours of operation with at least 70% of initial lumen
output (L70), and 52,000 hours with at least 90% of initial lumen output (L90).*
• LED chromaticity based on < 6-step ANSI quadrangles.
• Color Rendering Index > 80.

MOUNTING

• Surface mounting.

CODE COMPLIANCE & WARRANTY

• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.

• 5-year warranty on all electronics and housing
