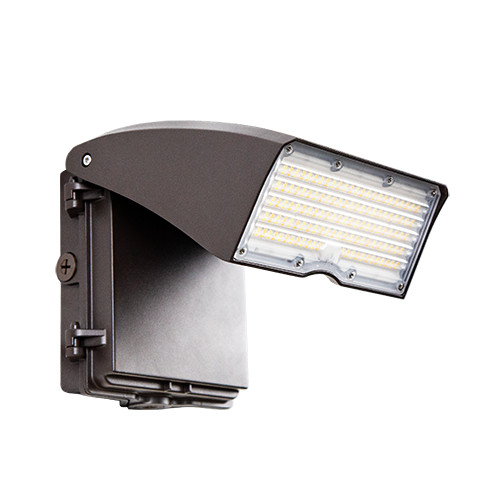

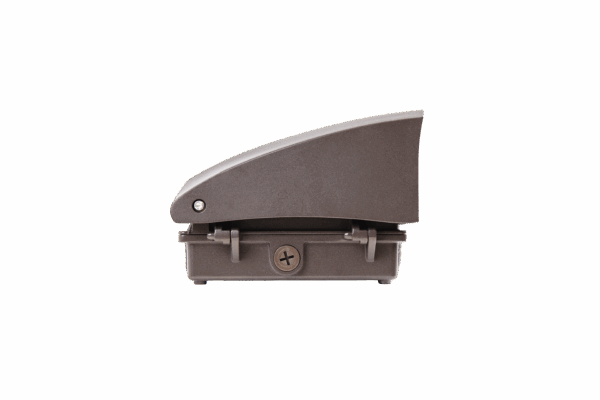

LED Adjustable Wall Pack – Sensor Ready, Lumen & Kelvin Field Selectable

This wall-mounted LED wall pack features a durable, bronze die-cast aluminum housing with an adjustable design (up to 90°) and a polycarbonate lens. It offers field-selectable color temperatures (3000K, 4000K, 5000K) and delivers up to 11,875 lumens, depending on model. The fixture includes an integrated photocell (switchable. It is designed for harsh environments.

HOUSING

• Premium powder-coat, die cast aluminum, Bronze housing.

ELECTRICAL

•  Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 6kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate lens.
• Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white)
  color temperatures.
• 06-WPASR-6543L-3CCT provides a range of 2,739 to 6,002 nominal lumens.
• 06-WPASR-121086L-3CCT provides a range of 6,402 to 11,875 nominal lumens.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen
  output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• Adjustable housing up to 90°.
• Screw in sensor ready. Occupancy sensor and remote control sold separately.
  Remote control required to change factory sensor settings.
• LED chromaticity based on < 6-step ANSI quadrangles.
• LED color maintenance < -0.0031 chromaticity shift (Δu’v’) over the initial 6,000
  hours of operation.
• Color Rendering Index > 80.

MOUNTING

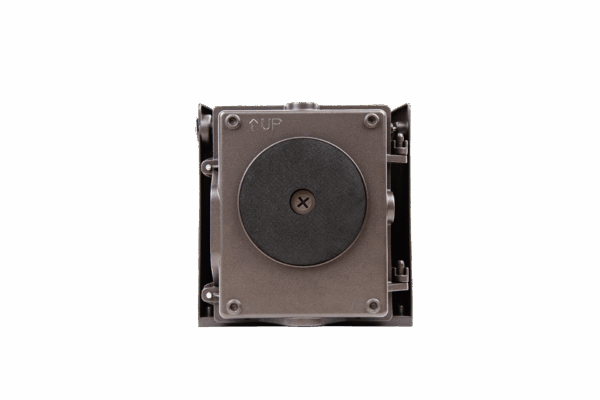

• Wall mounting kit.

CODE COMPLIANCE

• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• IK08 rated for impact protection.

WARRANTY

• 5-year warranty of all electronics and housing.
