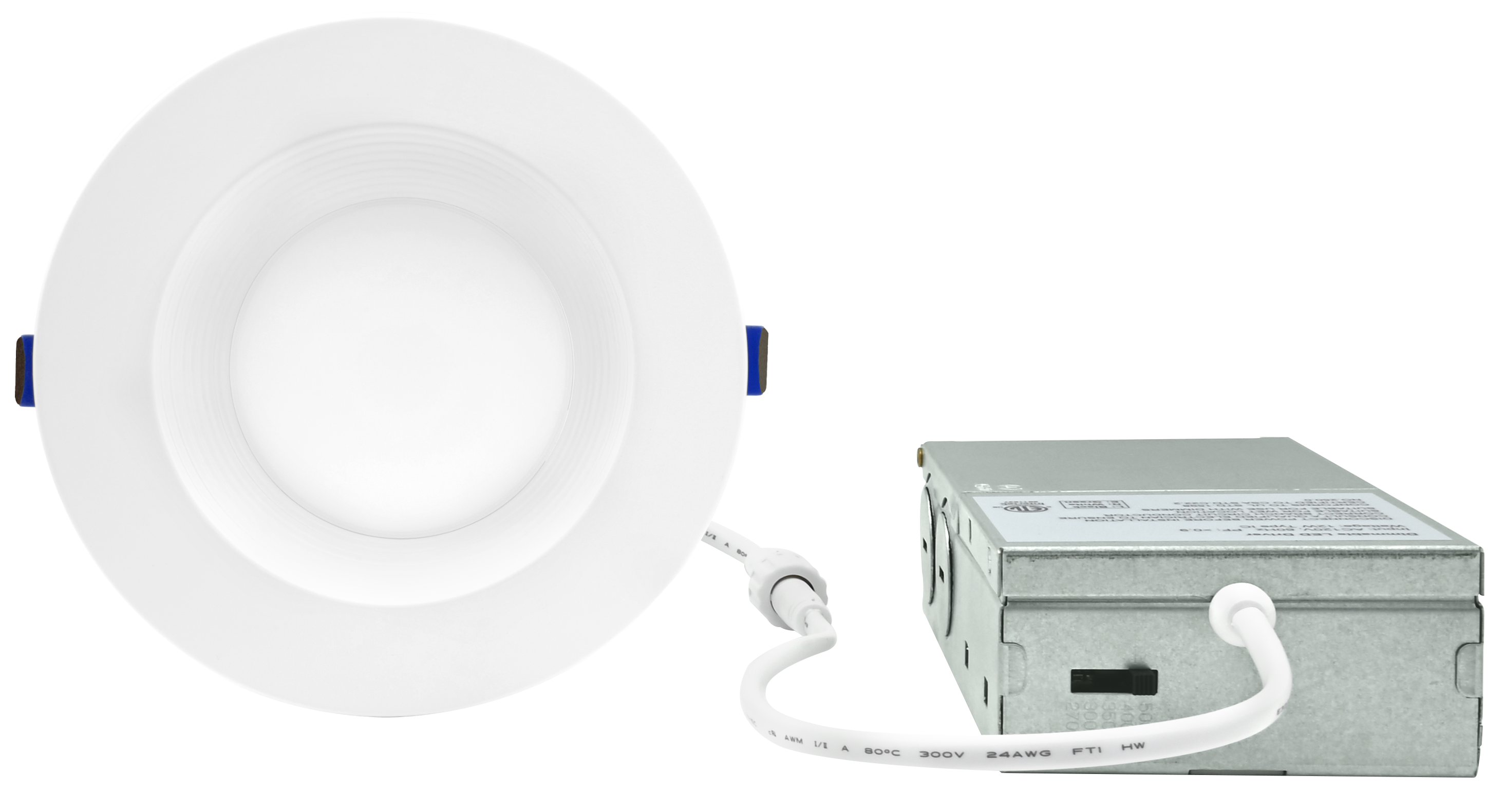

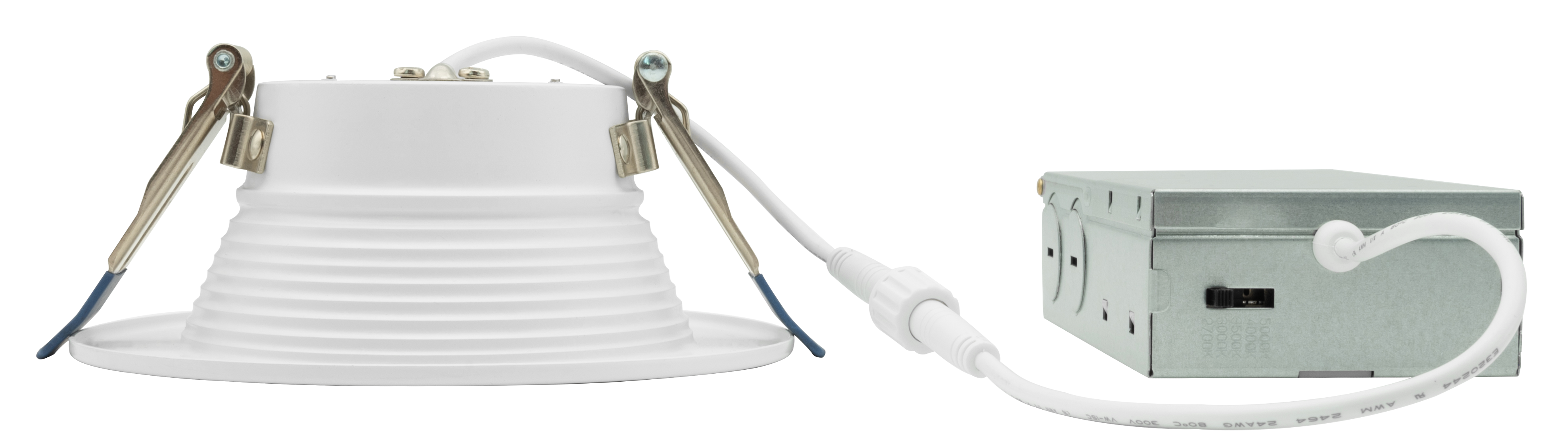

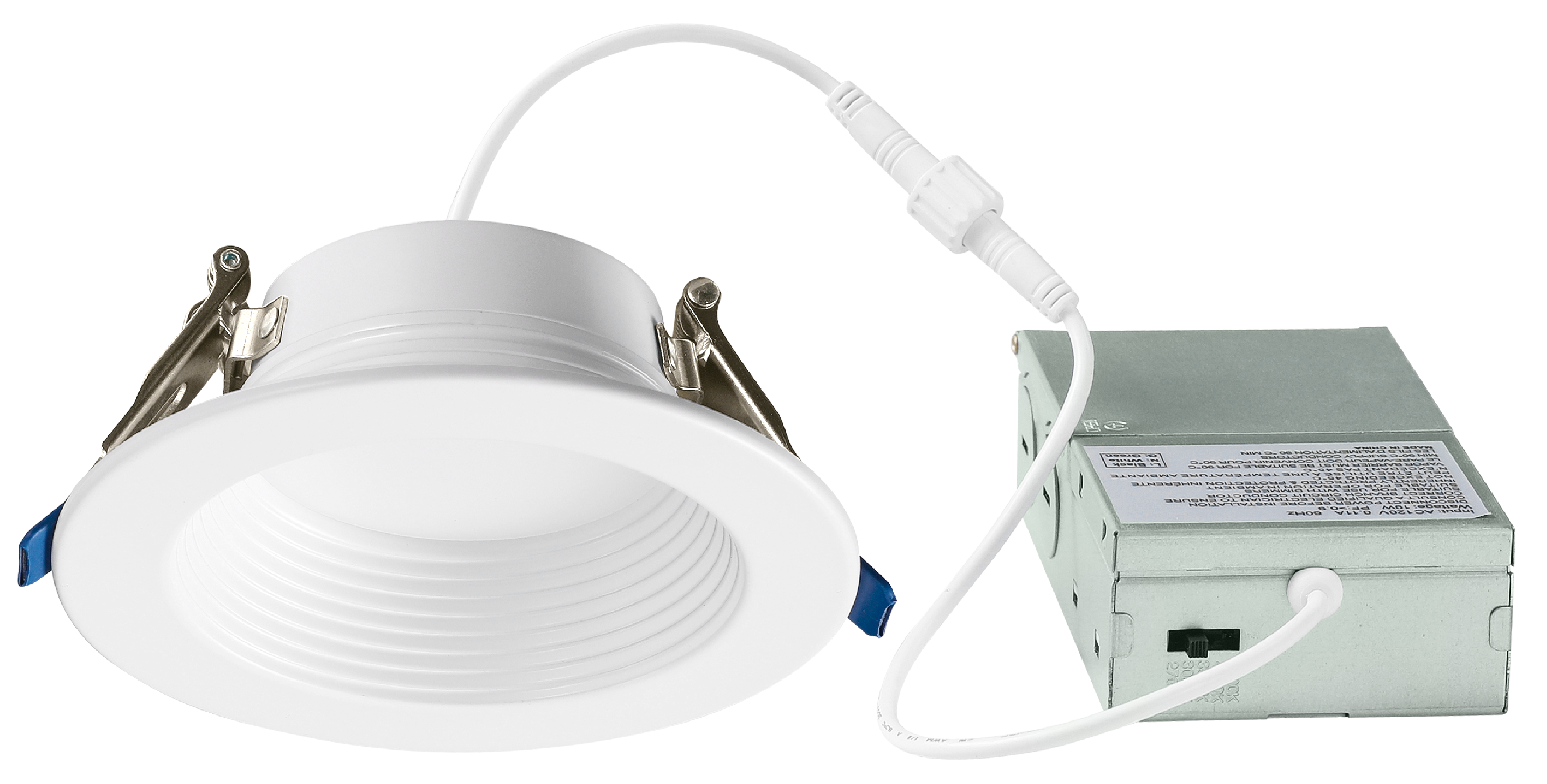

Integrated/Can-less Recessed Downlight-4″

HOUSING

Premium powder-coat, aluminum, white housing

ELECTRICAL

• Operating temperature (ambient): -20°C to 45°C (-4°F to 113°F).
• Universal 120V AC voltage (60Hz) is standard.
• Triac dimming.
• Input transient surge protection = 1kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate diffuser.
• Field selectable 2700k(soft white), 3000k(warm white), 3500k(warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
• Provide a range delivers up to 800 nominal lumens..
• Long-life LEDs provide 174,000 hours of operation with at least 70% of initial lumen output (L70), and 42,000 hours with at least 90% of initial lumen output (L90)**.
• LED color maintenance < 0.0035 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Beam angle 100°.
• Color rendering index > 90.

MOUNTING

• Recessed in ceiling.
• Suitable for most new constructions.
• Install J-box in ceiling beam, and insert light right into drywall opening.

CODE COMPLIANCE & WARRANTY

• cETLus listed for wet locations.
• Energy Star certified.
• Complies with FCC part 15, class B.
• Complies with Title 24.

• 5-year warranty on all electronics and housing
