Inline LED Emergency Driver for Round High Bay

Model: 03-BLEM-INDRV-HBR
Text has been copied to your clipboard
Ask for Price
How to request a quote?

product description

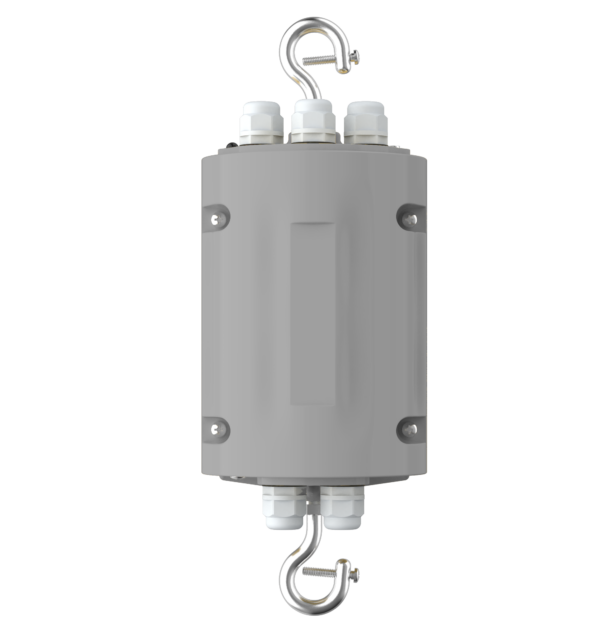

INLINE LED EMERGENCY DRIVER FOR ROUND HIGH BAY

Provides 145VDC (or 100-347VAC) to the Input side of the connected load during emergency mode operation. For use with switched or unswitched fixtures. Can be used with LED lamp/luminaire loads providing up to 30W, 40W and 60W of constant power in Emergency mode.

 Illumination

• Provides voltage to the Input side of the connected load during emergency mode
operation.
• For use with switched or unswitched fixtures.
• Can be used with LED lamp/luminaire loads providing up to 30W, 40W and 60W
of constant power in Emergency mode.
• Optional remote available for manual testing.

Electrical

• Universal 100-347V, 50/60Hz input.
• 145VDC, 6A max. output.
• Charge/Power “ON” LED indicator light and push to test switch for mandated code
compliance testing.
• Long-life, maintenance free, rechargeable Lithium battery.
• With multi-protection function: overcharge; over-discharge; output overload; short-circuit and open load protection.
• 90-minute minimum emergency operating time over full temperature range.
• 24 hour maximum battery recharge time.
• SDT standard: Self-Diagnostic feature performs monthly and annual tests to
ensure reliable operation and meet electrical and safety codes.
• Integral LED indicator light and test switch included.

Housing

• Durable painted diecast aluminum construction.
• Provided with mounting rings on both ends.

Mounting

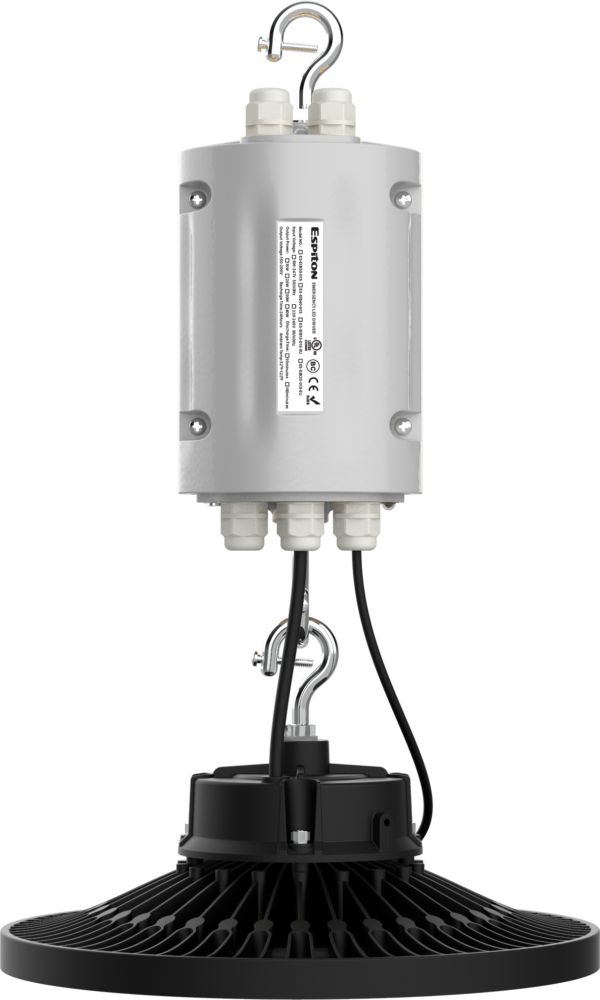

• Suitable for top mount of LED fixtures.
• Connected Luminaire not required to be opened for installation or to make
electrical connections.

Warranty/Listings

• UL Listed for factory or field installation.
• Suitable for damp location (0°C – 50°C).
• Meets UL924,NFPA 101 Life Safe Code, NEC, OSHA, Local and State codes.
• Complies with FCC part 15, class B.
• Certified to CEC under Title 20 regulations.
• IP69K Protection.
• 5-year warranty on all electronics and housing.
