Inline LED Emergency Driver

INLINE LED EMERGENCY DRIVER

Provides 145VDC (or 100-347VAC) to the Input side of the connected load during emergency mode operation. For use with switched or unswitched fixtures. Can be used with LED lamp/luminaire loads providing up to 25W and 40W of constant power in Emergency mode.

 Illumination

• Provides voltage to the Input side of the connected load during emergency mode
operation.
• For use with switched or unswitched fixtures.
• Can be used with LED lamp/luminaire loads providing up to 25W and 40W of constant
power in Emergency mode.
• Optional remote available for manual testing

Electrical

• Universal 100-347V, 50/60Hz input.
• 145VDC, 6A Max. Output.
• Charge/Power “ON” LED indicator light and push to test switch for mandated code
compliance testing.
• Long-life, maintenance free, rechargeable Lithium battery.
• With multi-protection function: overcharge; over-discharge; output overload; shortcircuit and open load protection.
• 90-minute minimum emergency operating time over full temperature range.
• 24 hour maximum battery recharge time.
• SDT standard: Self-Diagnostic feature performs monthly and annual tests to ensure
reliable operation and meet electrical and safety codes.
• Monthly/annual self-testing.
• Fixture-mount integral LED test switch with light-up indicator included.

Housing

• Durable painted Stamped Aluminum construction.

Mounting

• Suitable for inside or top mount of LED fixtures.

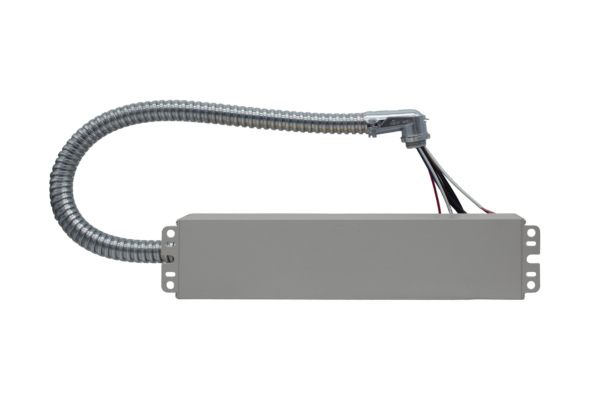

• Provided with 2” flex conduit and 90-degree coupling for convenient installation.

Warranty/Listings

• UL Listed for factory or field installation.
• Suitable for damp location (0°C – 50°C).
• 5 year warranty on all electronics and housing.
• Meets UL924,NFPA 101 Life Safe Code, NEC, OSHA, Local and State codes.
• Complies with FCC part 15, class B.
• Certified to CEC under Title 20 regulations.
