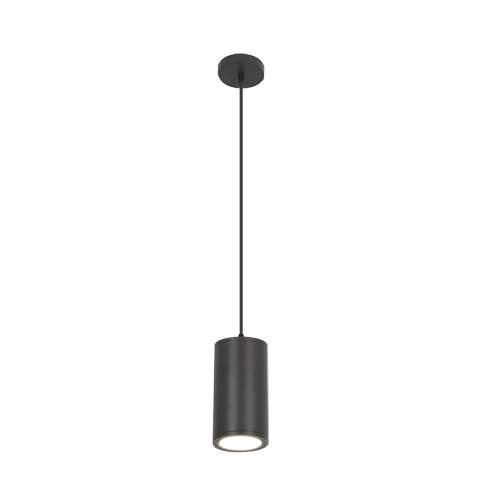

Architectural Pendant Cylinder Luminaire – Lumen & Kelvin Selectable – Cord Mount

The Architectural Pendant Cylinder features a durable bronze aluminum housing with premium powder-coat finish. Cord mount. Features field-selectable CCT (2700K–5000K) and tri-lumen output (978–1907 lm).  Includes 40° reflector with optional 25° and 60° replacements.

Housing

• Premium powder-coat, aluminum, bronze housing.

Electrical

• Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers is standard.
• Surge protection = 4kV.
• Power factor > 0.90.

Optical System

• Silicon dioxide glass lens.
• Field selectable 2700k(soft white), 3000k (warm white), 3500k(warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.
• Tri-Lumen selectable provides a range of 978 to 1907 nominal lumens.
• Long-life LEDs provide 140,000 hours of operation with at least 70% of initial lumen output (L70), and 41,000 hours with at least 90% of initial lumen output (L90).
• Fixtures comes installed with 40 degree reflector.
• Available field replaceable reflectors for 25° and 60°.
• LED color maintenance < 0.0004 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 90.

Mounting

• Optional Cord Mount kit.
• Optional Stem mount kit (Sold Separately)*

*Must order 10-APEN4-221L-5CCT-CM to use stem mount kit.

Code Compliance

• cULus listed for wet locations.
• Energy Star certified.
• Complies with FCC part 15, class B.

Warranty

5-year warranty on all electronics and housing.
