HOUSING
- White powder-coated steel housing.
ELECTRICAL
- Operating temperature (ambient): Up to 50°C (122°F).
- Universal 120-277V AC voltage (50-60Hz).
- 0-10VDC dimming driver.
- Input transient surge protection = 2.5kV.
- Power Factor > 0.90.
- Total Harmonic Distortion < 20%.
OPTICAL SYSTEM
- Efficacy up to 165 Lumens per Watt.
- Field selectable 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures.
- 10-SLSR8-10865L-5CCT Selectable output delivers from 5,067 to 9,958 nominal
lumens, with 4 settings. - Long-life LEDs provide 165,000 hours of operation with at least 70% of initial lumen output (L70), and 50,000 hours with at least 90% of initial lumen output (L90)
- Sensor-ready quick connect comes standard. Push-in quick connect microwave sensor
(sold separately). - LED color maintenance < 0.0008 chromaticity shift (Δu’v’) over the initial 6,000 hours
of operation. - PMMA (polymethyl methacrylate) frosted lens.
- Color Rendering Index > 80.
MOUNTING
- Surface Mount Kit.
- Optional Cable Mount Kit.
- Optional Cable Mount Kit.

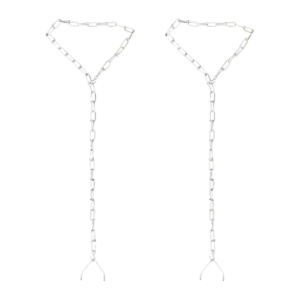

• Chain-mount kit (includes v-hooks, 1-meter-long chain).
CODE COMPLIANCE
- cULus listed for damp locations.
- Complies with FCC part 15, class A.
WARRANTY
- 5-year warranty on all electronics and housing.
