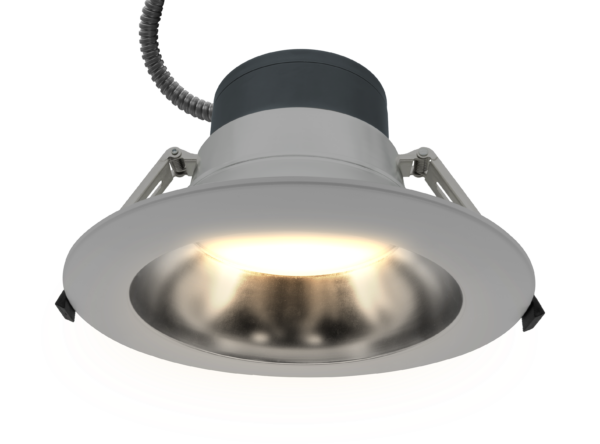

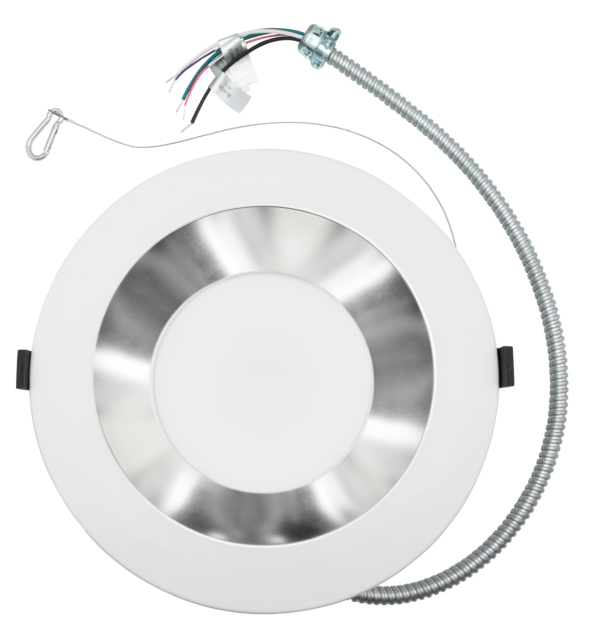

8″ Round Downlight – Lumen and Kelvin Field Selectable

Model: 06-CDR8-5L-LKFS
Text has been copied to your clipboard
Ask for Price

Request product pricing

Call for Pricing now: 877.664.5483
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.
How to request a quote?
1. Click on “Add to Quote”
2. Add as many products as you want to your quote.
3. Go to your Cart at the top right corner of the screen.
4 Sign In or create an account.
5. Submit your quote.
6. A lighting rep will provide pricing within 24 hours.

product description

HOUSING

  • Premium powder-coat, aluminum, white housing.

ELECTRICAL

  • Universal 120-277V AC voltage (50-60Hz) is standard.
  • 0-10VDC dimming drivers are standard.
  • 21.65” flexible metal conduit with additional 6” of conductor is standard.
  • Beam angle 50°.
  • Input transient surge protection = 1kV.
  • Type IC.
  • Power factor > 0.90.
  • Total Harmonic distortion < 20%.

OPTICAL SYSTEM

  • Polycarbonate diffuser.

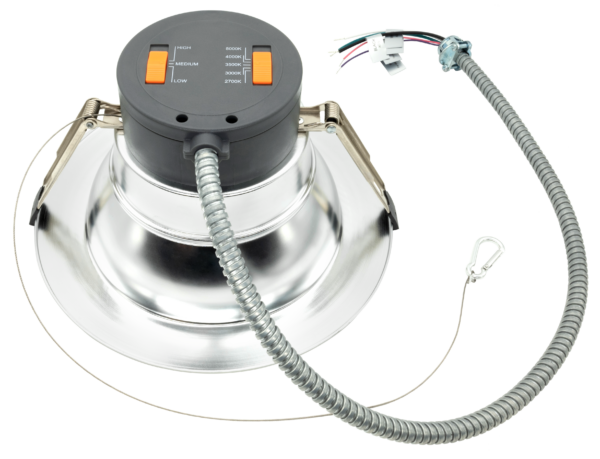

  • Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
  • Tri-Lumen selectable delivers 3,000 to 5,000 nominal lumens*.
  • Long-life LEDs provide 149,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90)**.
  • LED color maintenance < -0.0114 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
  • Color rendering index > 90%.

MOUNTING

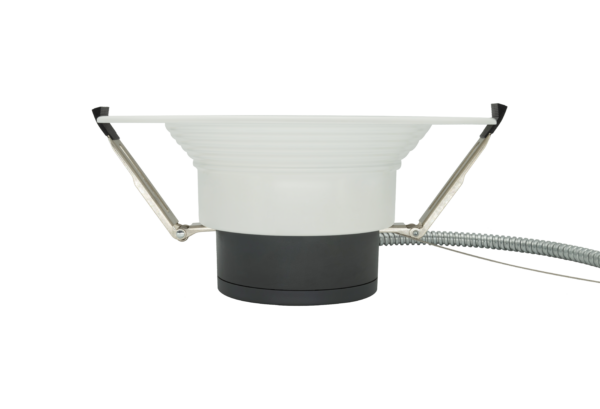

  • Recessed in ceiling, new construction or retrofit.
  • Access above ceiling required.
  • Covered ceiling mount only.

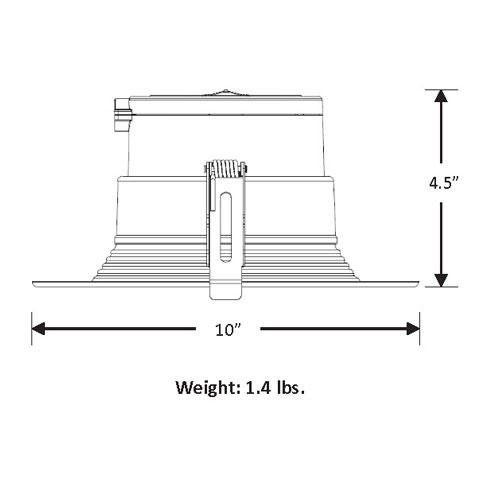

  • Compatible with 8.08” ceiling cut-outs and 8” mounting frames.

CODE COMPLIANCE

  • cETLus listed for wet locations.
  • Energy Star certified.
  • Complies with FCC part 15, class B.
  • Complies with Title 24.

WARRANTY

  • 5-year warranty on all electronics and housing.
