HOUSING
- White powder-coated aluminum housing.
ELECTRICAL
- Operating temperature (ambient): -20°C to 45°C (-4°F to 113°F).
- Universal 120V AC voltage (60Hz) is standard.
- 06-MODS6-12L-5CCT = 15W
- Triac dimming.
- Type IC.
- Input transient surge protection = 1kV.
- Power factor > 0.90.
- Total Harmonic distortion < 20%.
OPTICAL SYSTEM
- Efficacy up to 80 Lumens per Watt.

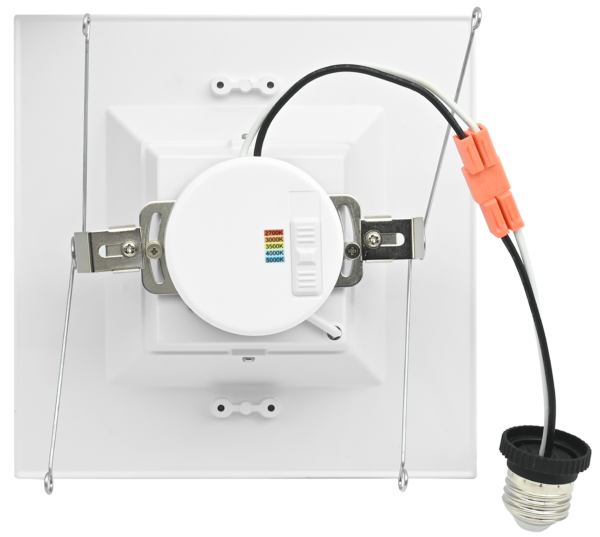

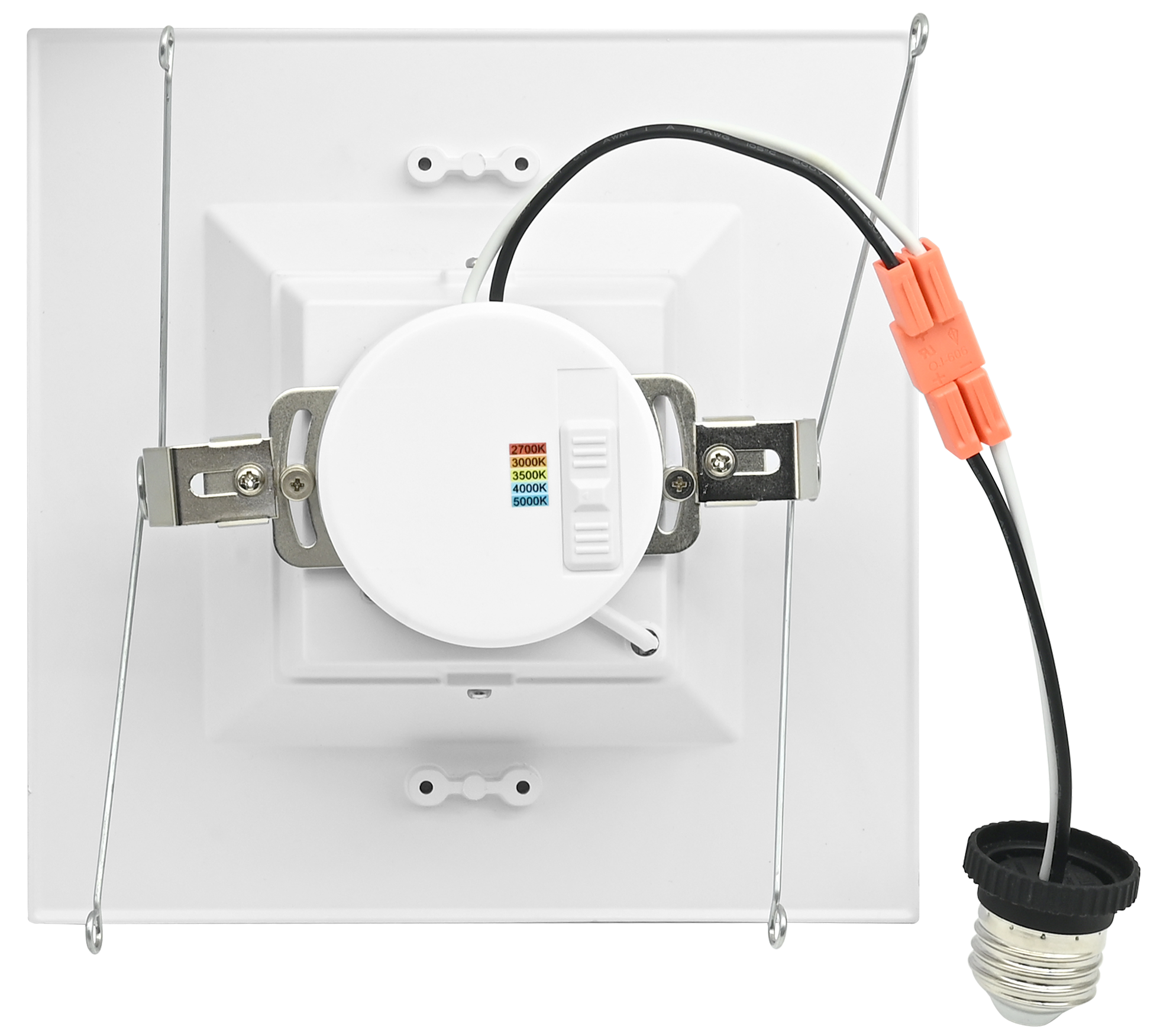

- Field selectable 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- 06-MODS6-12L-5CCT delivers from 1,036 to 1,103 nominal lumens.
- Long-life LEDs provide 120,000 hours of operation with at least 70% of initial lumen output (L70), and 36,000 hours with at least 90% of initial lumen output (L90).
- LED color maintenance < -0.00504 chromaticity shift (Δu’v’) ove r the initial 6,000 hours of operation.
- Beam angle 110°.
- Polycarbonate diffuser.
- Color Rendering Index > 90.
MOUNTING
- Recessed in housing.
- Retrofits into existing incandescent can housings.
- E26 screw base adapter connects directly to standard socket.
- For use in 4” or 6” recessed new construction and remodel housings.
CODE COMPLIANCE
- cETLus listed for damp locations, not exceeding 45°C (113°F).
- Complies with FCC Part 15, Class B.
- Complies with Title 24.
WARRANTY
- 5-year warranty on all electronics and housing.
