6″ Gimbal Downlight LED Trim – Kelvin Field Selectable

HOUSING

• Premium powder-coat, aluminum, white housing.

ELECTRICAL

• Universal 120V AC voltage (60Hz) is standard.
• Triac dimming.
• Beam angle 100°.
• Input transient surge protection = 1kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate diffuser.
• With a swiveling lens, tilt the optic 60° and swivel a full 360°.

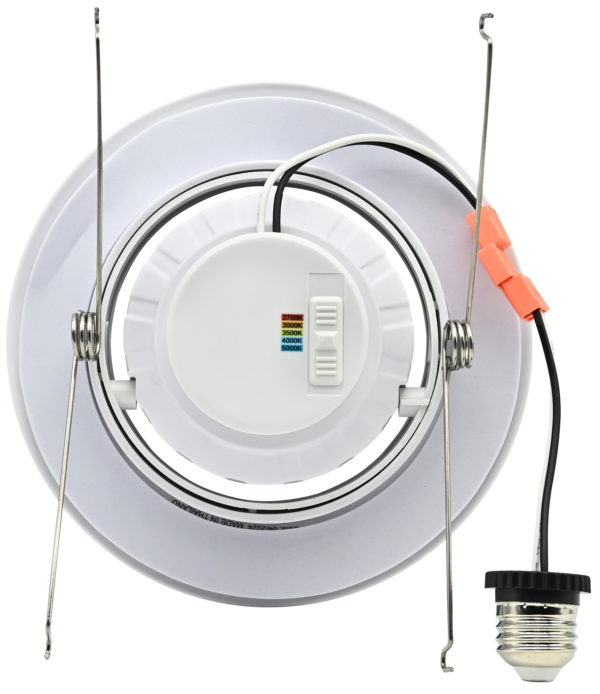

• Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
• Provide a range delivers 800 to 1,200 nominal lumens*.
• Long-life LEDs provide 174,000 hours of operation with at least 70% of initial lumen output (L70).**
• LED color maintenance < 0.0035 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 90.

MOUNTING

• Recessed in housing.
• For use in 4” or 6” recessed new construction and remodel housings.

CODE COMPLIANCE

• cETLus listed for damp locations.
• Energy Star certified.
• Complies with FCC part 15, class B.
• Complies with Title 24.

WARRANTY

• 5-year warranty on all electronics and housing.
