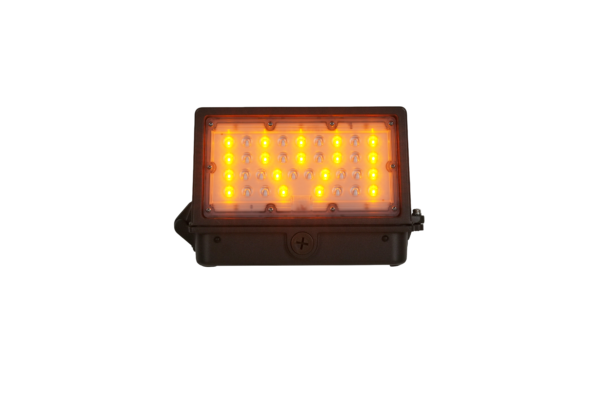

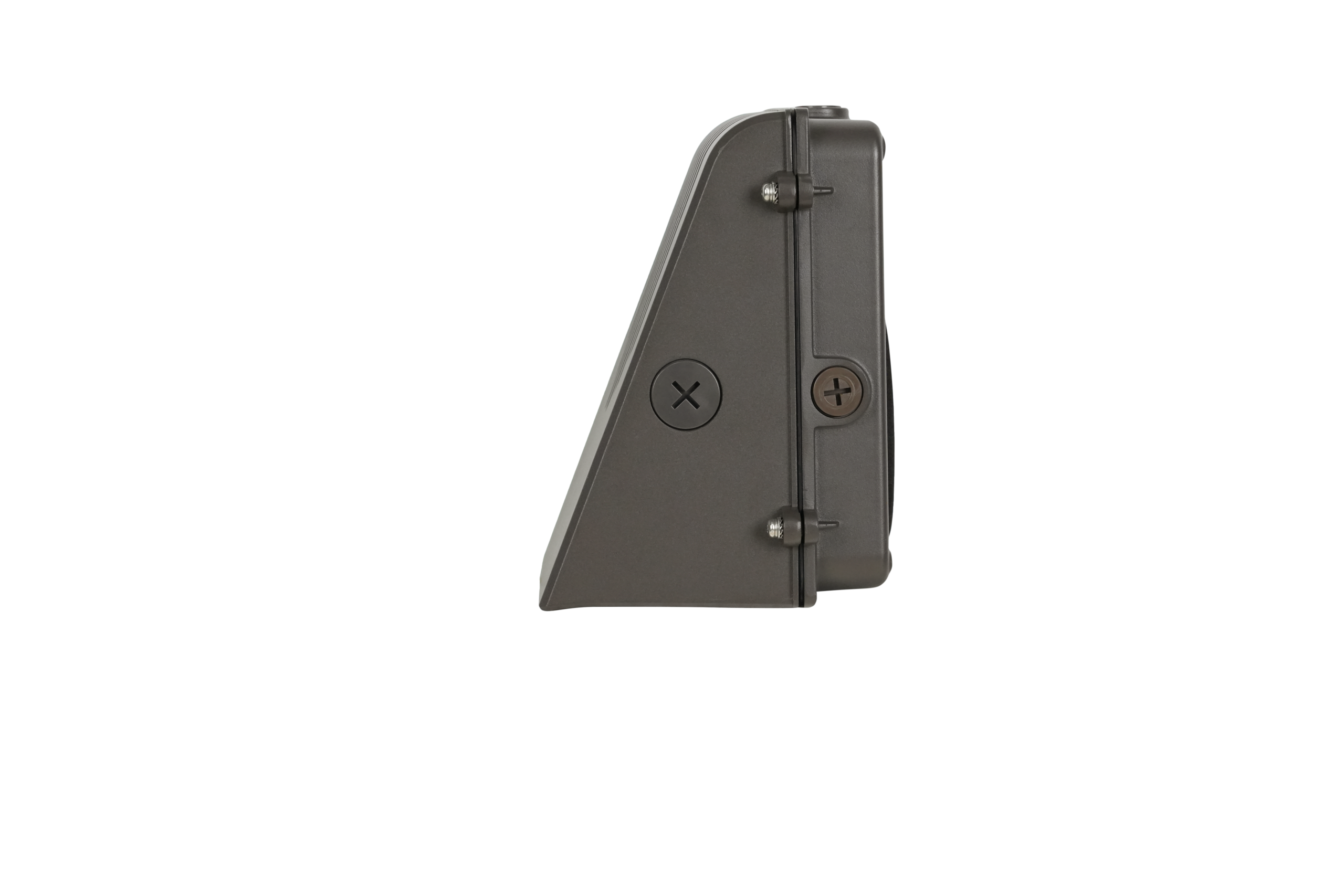

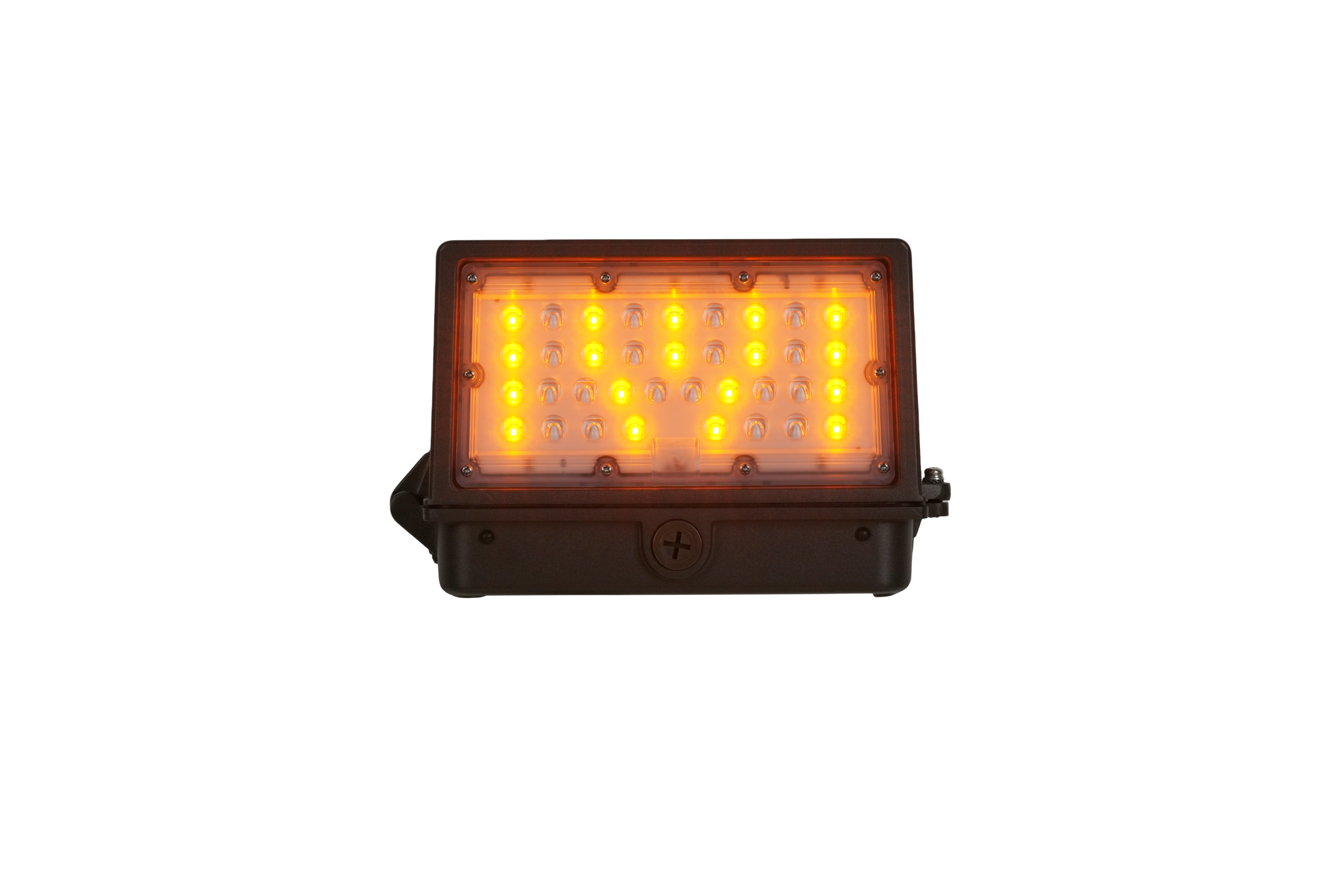

590nm True Amber Full Cutoff Wall Pack

HOUSING

• Bronze powder-coated die cast aluminum housing.

ELECTRICAL

• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F).
• Universal 120-277V AC voltage (50-60Hz).
• 0-10V DC dimming driver.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 4kV.
• Power Factor > 0.90.
• Total Harmonic Distortion < 20%.

OPTICAL SYSTEM

• Efficacy up to 91 lumens per watt.
• 590nm true amber LEDs.
• 07-WPFCA-1L delivers 1,097 nominal lumens.
• 07-WPFCA-2L delivers 2,030 nominal lumens.
• Long-life LEDs provide 66,528 hours of operation with at least 70% of initial lumen output (L70).
• LED color maintenance < 0.0018 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Polycarbonate lens.

MOUNTING

• Wall mounting kit.

CODE COMPLIANCE

• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• IK08 rated for impact protection.
• Turtle Light standard; wildlife friendly.
• This fixture is Dark Sky Ordinance Ready when mounted at a 0° tilt. Final compliance with local dimming levels and light curfew mandates is the
  responsibility of the installer. Proper field configuration ensures alignment with state-level light pollution statutes.

WARRANTY

• 5-year warranty of all electronics and housing.
