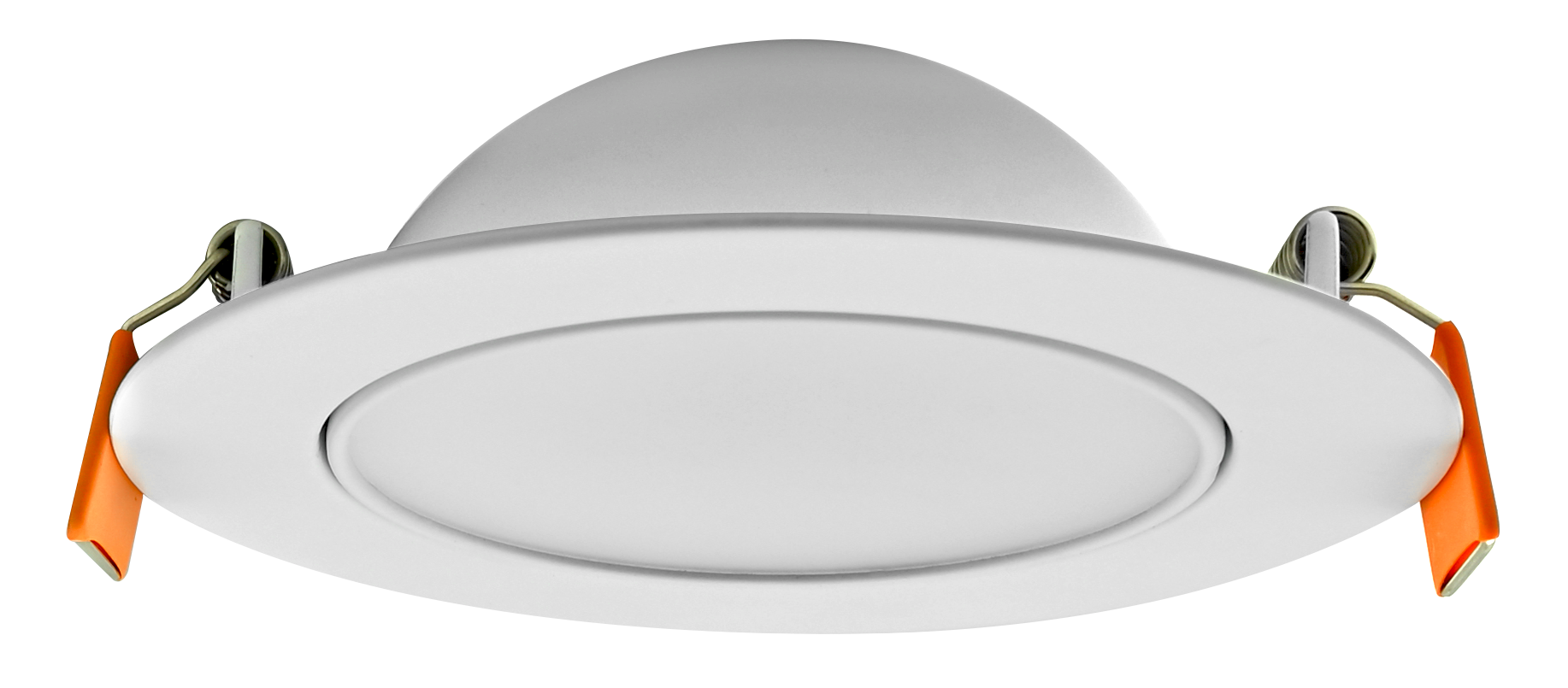

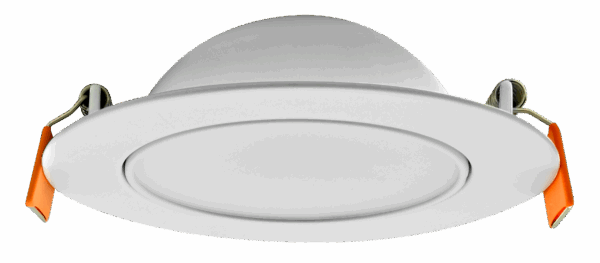

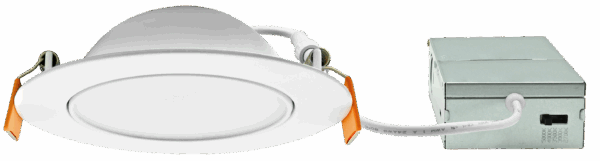

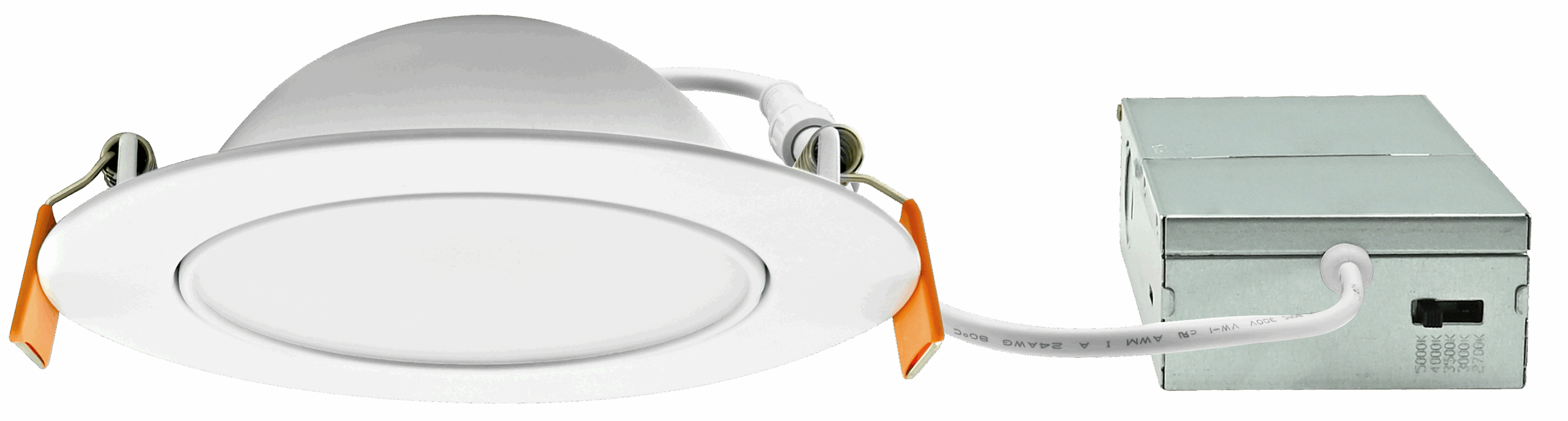

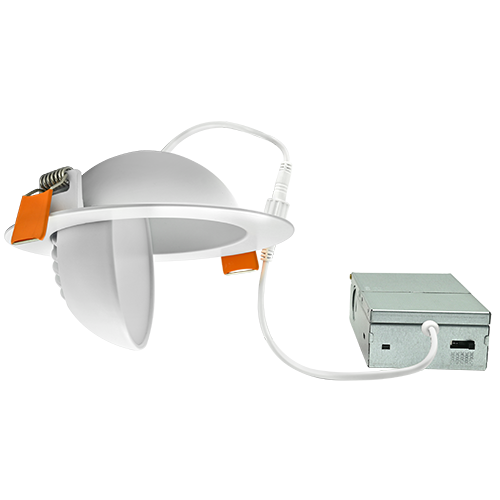

4″ Floating Gimbal- Canless Fixture – 5CCT Selectable

Recessed, canless gimbal module combines a clean, modern look with powerful adjustability — 355° rotation and 90° tilt — for perfect aiming every time. Field-selectable color temperatures (2700K–5000K)  ensure the right light for any application, from cozy residential spaces to demanding commercial environments. With Energy Star certification, high CRI >90, and long-life LED performance, the IFG delivers lasting efficiency, flexibility, and style — all without the need for a housing or junction box.

HOUSING

Premium powder-coat, aluminum, white housing

ELECTRICAL

• Operating temperature (ambient): -20°C to 45°C (-4°F to 113°F).
• 120V AC voltage (60Hz) is standard.
• 10-IFG4-7L = 9W
• Adjustable 355° rotation and 90° tilt.
• Triac dimming.
• Input transient surge protection = 1kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• PMMA diffuser.
• Field selectable 2700k(soft white), 3000k(warm white), 3500k(warm/neutral white) 4000k (neutral white) and 5000k (cool white) color temperatures
• 10-IFG4-7L provide a range delivers 621 to 746 nominal lumens.
• Long-life LEDs provide 120,000 hours of operation with at least 70% of initial lumen output (L70), and 36,000 hours with at least 90% of initial lumen output (L90).
• Beam angle 120°.
• Color rendering index > 90.

MOUNTING

• No existing recessed housing or junction box required.
• Suitable for most new constructions.
• Install J-box in ceiling beam and insert light right into drywall opening or ceiling panel opening.
• Type IC

CODE COMPLIANCE & WARRANTY

• cETLus listed for wet locations. Not exceeding 45°C(113°F).
• Energy Star certified.
• Complies with FCC part 15, class B.
• Complies with Title 24.
• 5-year warranty on all electronics and housing.
