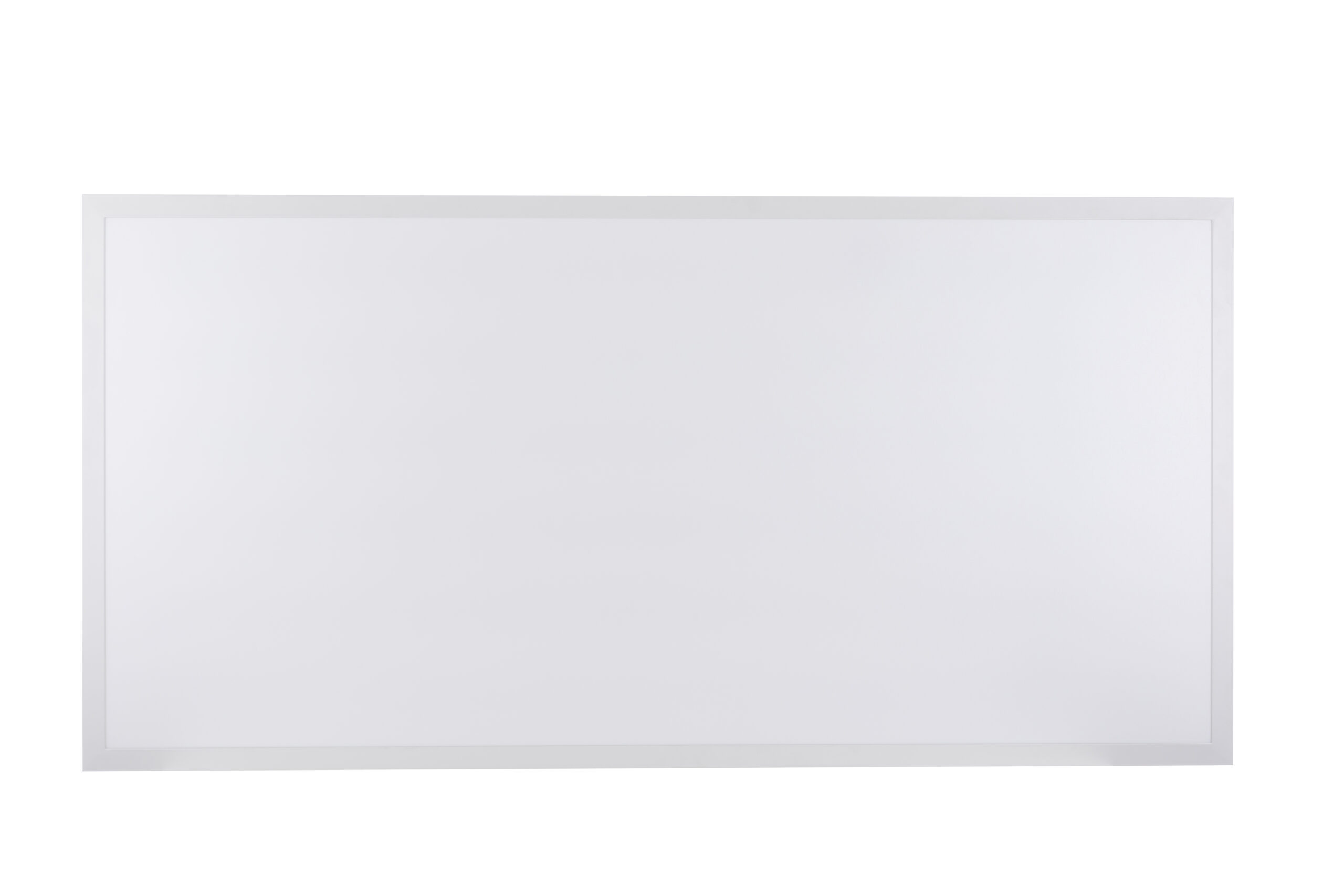

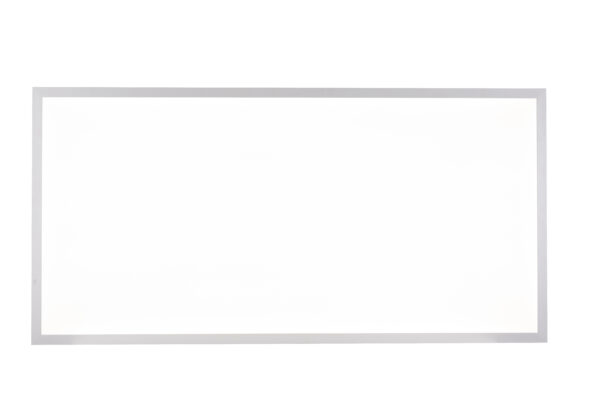

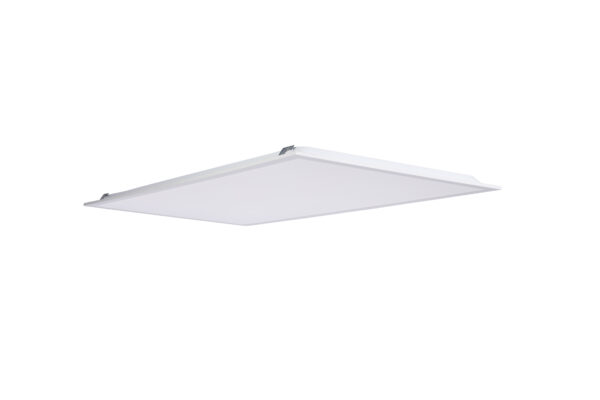

2×4 High Lumen LED Back-Lit Flat Panel Lumen & Kelvin Field Selectable

This High Lumen LED panel features a durable steel frame with a premium white powder-coated finish and is designed for recessed installation in grid ceilings, with optional kits available for surface, flange, or cable suspension mounting. It is adaptable for both aesthetic and functional lighting needs in various ceiling types. Plus, with its long life and energy efficiency, it’s great for reducing maintenance in high-traffic or hard-to-access areas.

Housing

• Aluminum frame and steel housing backplate.
• Premium powder coated white housing.

Electrical

• Operating temperature (ambient): -20°C to 40°C (-4°F to 104°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Input transient surge protection =1kV.
• Optional Emergency drivers are available.
• Type IC-rated.
• PF > 0.9 ; THD < 20%.

Optical System

• PMMA (Polymethyl methacrylate) LED lenses for optimal light distribution, efficiency
  and longevity.
• 5 CCT selectable 3000k (warm white), 3500k 4000k (neutral white) and 5000k (cool
  white) and 6500k (daylight) color temperature*.
• 5 Lumen selectable, outputs range from 4,000 to 9,000 nominal lumens*.
• Long-life LEDs provide 169,000 hours of operation with at least 70% of initial lumen
  output (L70), and 51,000 hours with at least 90% of initial lumen output (L90)**.
• LED color maintenance < -0.0043 chromaticity shift (Δu’v’) over the initial 6,000 hours
  of operation.
• Color rendering index > 80.

Mounting

• Recessed mounting in grid ceilings is standard.
• Standard earthquake clips provide secure installation in grid ceilings.
• Optional Surface Mounting Kits (10-SMKT-24) and Flange Mounting Kits (10-LEDPNL2X4-FK) provide for installation on plaster or other hard ceilings.
• Optional Cable Mounting Kits (10-PNL-CMK) provide additional security, as well as suspended mounting.
