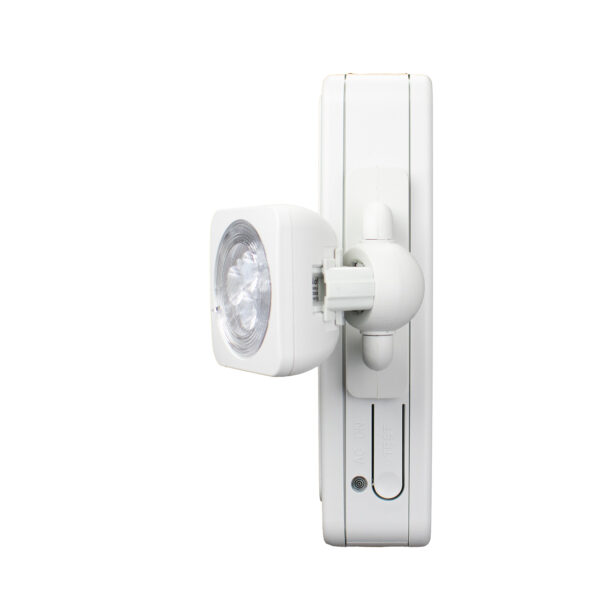

REDUCED PROFILE ALL LED – EXIT & EMERGENCY – THERMOPLASTIC COMBO

REDUCED PROFILE ALL LED – EXIT & EMERGENCY – THERMOPLASTIC COMBO

FEATURES

• Ultra-bright, energy efficient, long-life Red or Green LED EXIT sign illumination.
• Selectable Red/Green version available. See spec sheet for Ordering Information and exceptions.
• Ultra-bright, energy efficient, long-life White LED adjustable LED lamp heads provide up to 30-ft center-to-center spacing with 3-ft path of egress at 10-ft mounting height
• 1.5 watt (3 LEDs x 0.50 watt) per head
• Unique all-inclusive lamp, reflector and lens assembly
• Dual 120/277 voltage
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery)
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
• 3.6V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours

MOUNTING

• Mounting canopy included for top or end mount
• Universal knockout pattern on back plate for wall mount

HOUSING

• Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish
• Snap-out Chevron directional indicators

OPTIONS

• RC: Remote capacity of 2.5 watts
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes. Universal 120-277 voltage

Code Compliance

• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (0°C – 50°C).
• Certified to CEC under Title 20 Regulations.

Warranty

• 5-year warranty on all electronics and housing. Battery prorated for five years.
