10″ Round Downlight – Lumen and Kelvin Field Selectable

HOUSING

• Premium powder-coat, aluminum, white housing.

ELECTRICAL

• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.

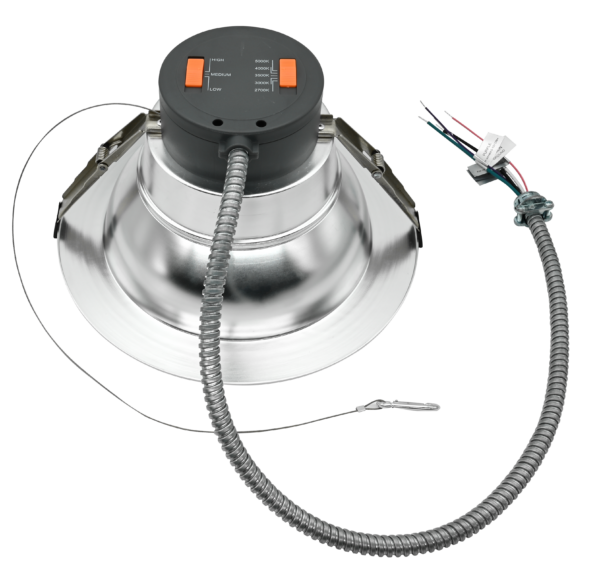

• 21.65” flexible metal conduit with additional 6” of conductor is standard.
• Beam angle 50°.
• Input transient surge protection = 1kV.
• Type IC.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate diffuser.

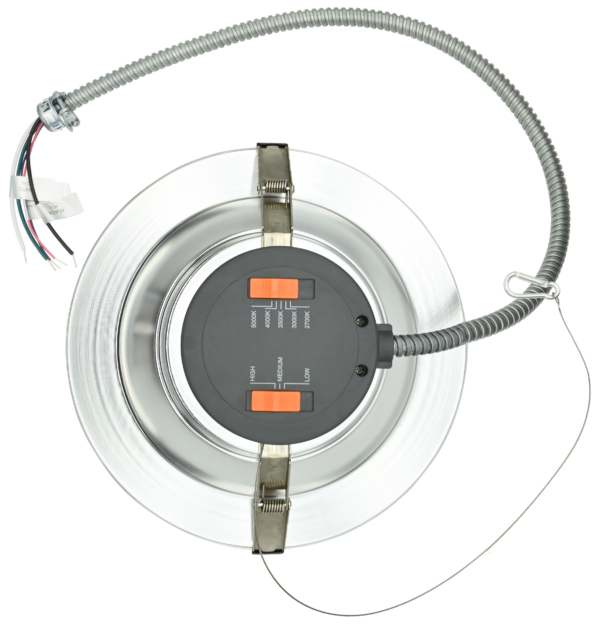

• Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
• Tri-Lumen selectable delivers 3,000 to 5,000 nominal lumens*.
• Long-life LEDs provide 149,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90)**.
• LED color maintenance < -0.0047 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color rendering index > 90%.

MOUNTING

• Recessed in ceiling, new construction or retrofit.
• Access above ceiling required.
• Covered ceiling mount only.
• Compatible with 8.97” ceiling cut-outs and 10” mounting frames.

CODE COMPLIANCE

• cETLus listed for wet locations.
• Energy Star certified.
• Complies with FCC part 15, class B.
• Complies with Title 24.

WARRANTY

• 5-year warranty on all electronics and housing.
